CPX Overview

From mechanical to hydraulic pipelayer

The CPX package is designed to easily convert your 571G/F/E/D, 572G/F/E, 583K/H or 594H/G Caterpillar mechanical sideboom into a fully hydraulic-controlled sideboom.

SP Overview

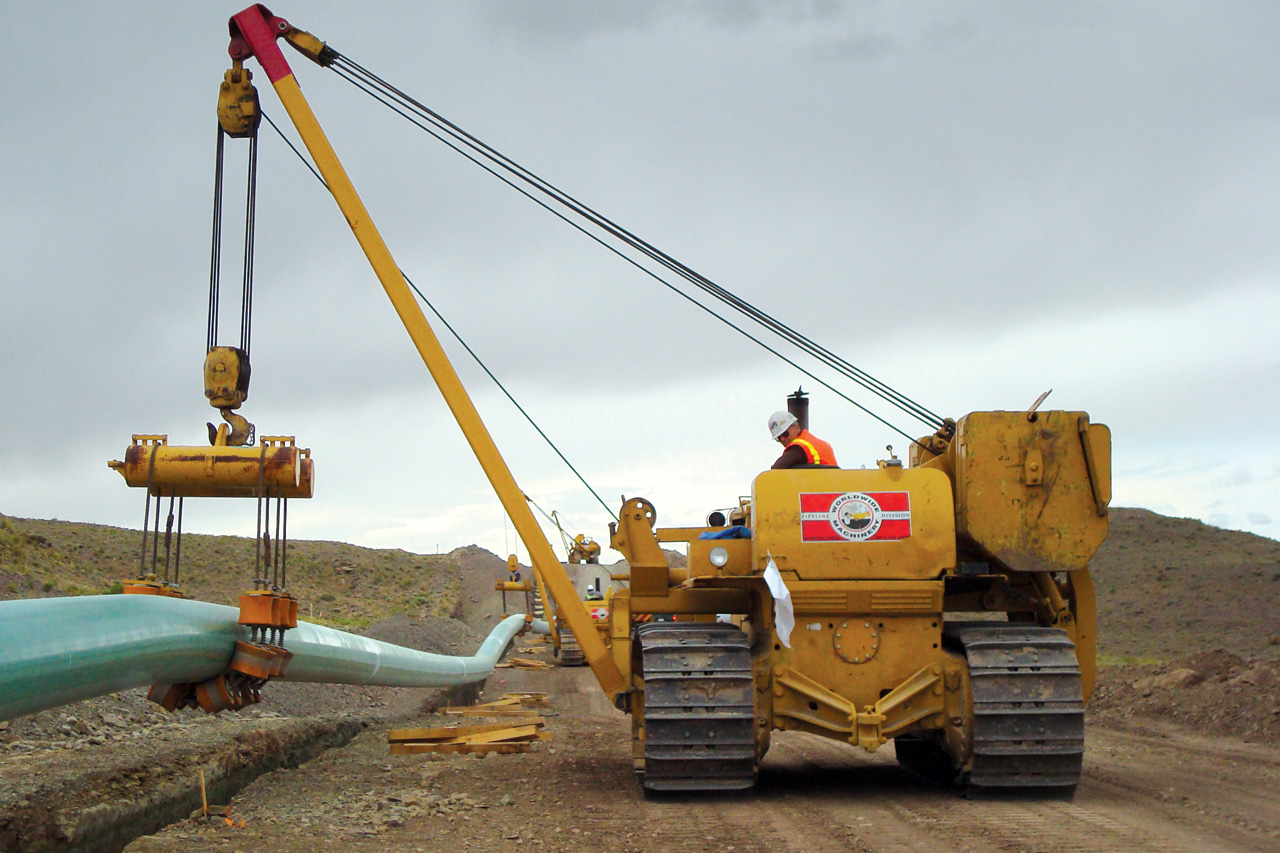

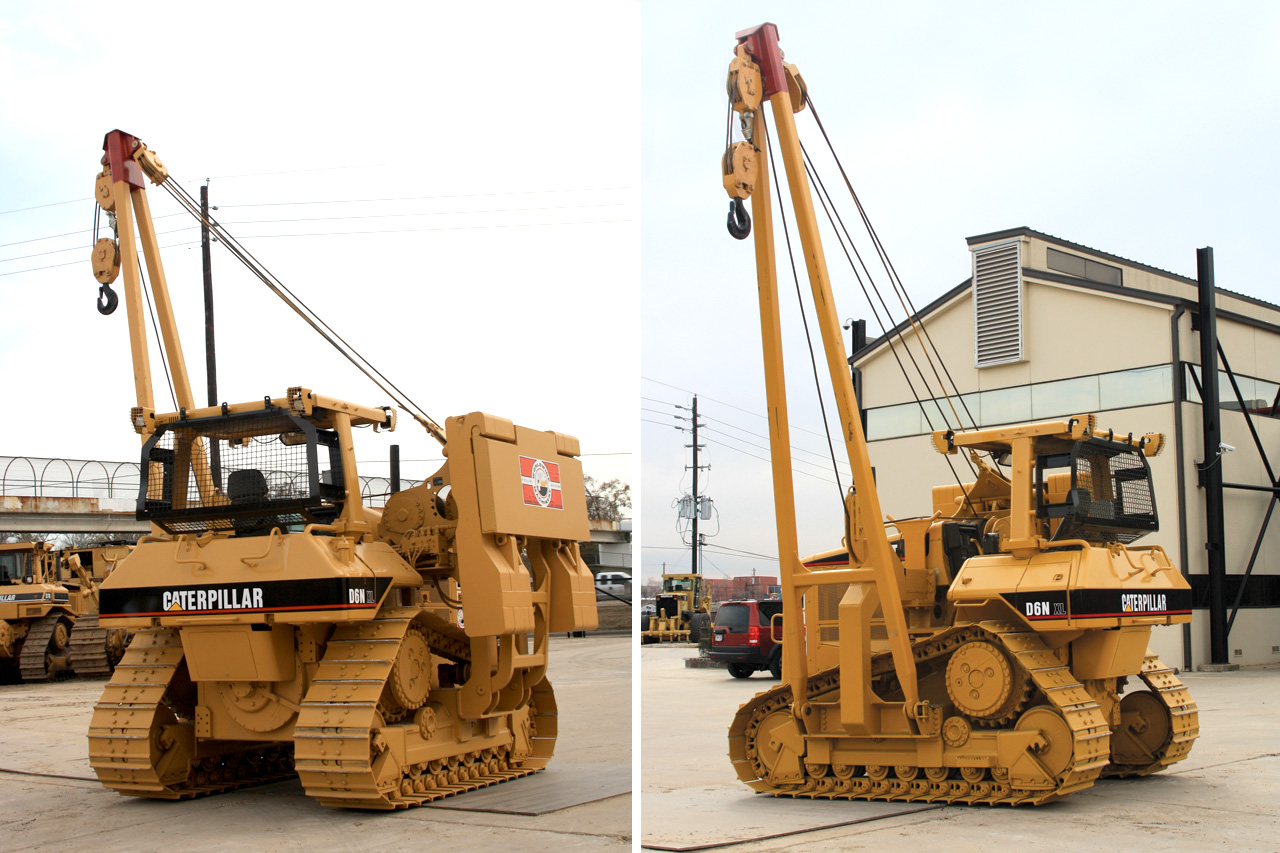

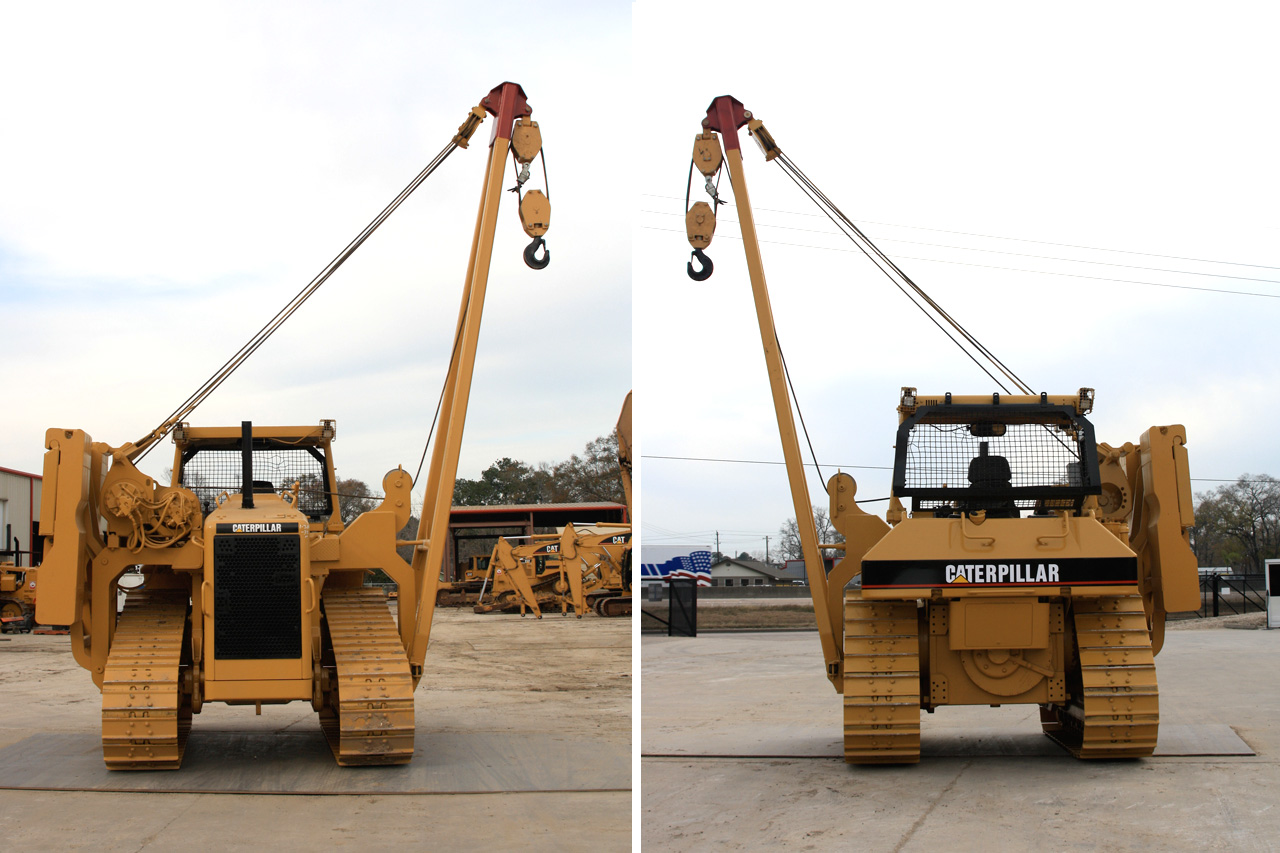

From dozer to hydraulic pipelayer

The SP package converts D7H/G, D8K/H and D9H/G Caterpillar or Komatsu D155 tractor to a hydraulic pipelayer. This includes a counterweight rack, leaves, an A-frame, upper and lower hardbar, a boom , as well as the CPX hydraulic kit.

• Specifications



• Main Features

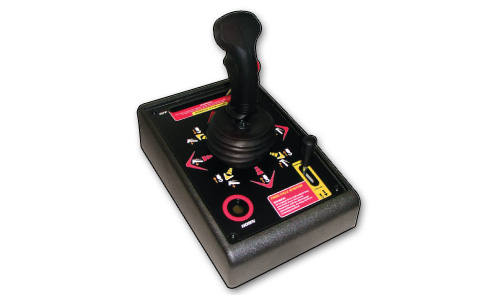

	Controls A single joystick allows the operator to control both the load line and the boom simultaneously or separately. < Click image to enlarge

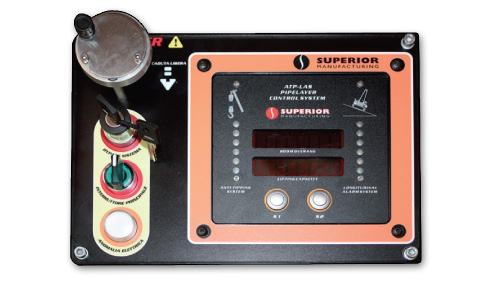

	Anti-Tipping System It monitors different lifting operations to avoid dangerous tilting and ensures the stability of the machine. < Click image to enlarge

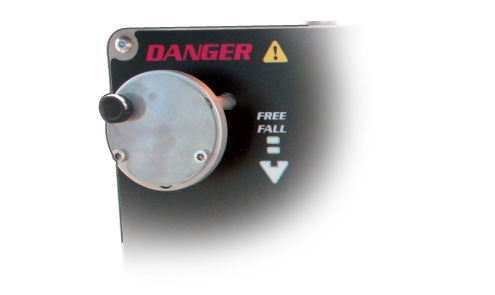

	Free-fall System When the button is engaged, the load free-falls all the way to the ground. < Click image to enlarge

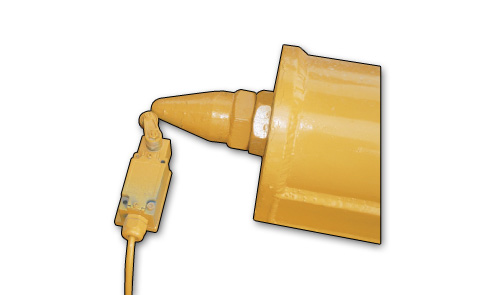

	Boom Kick-Out System This system will prevent the boom from excessive upward movement, thus ensuring you will never bend another boom. < Click image to enlarge
	Dual Hardbar Provides maximum support to the pipelayer by converting to a totally rigid frame. < Click image to enlarge

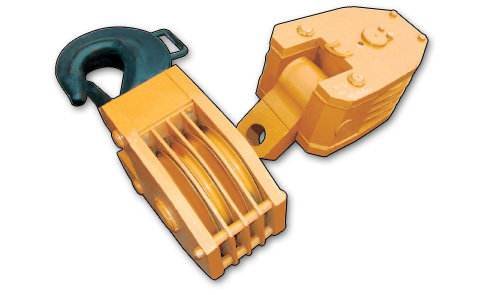

	Anti-Two Block The anti-two block sets a minimum distance between the top block and the hook block, preventing the 2 blocks from touching. < Click image to enlarge
