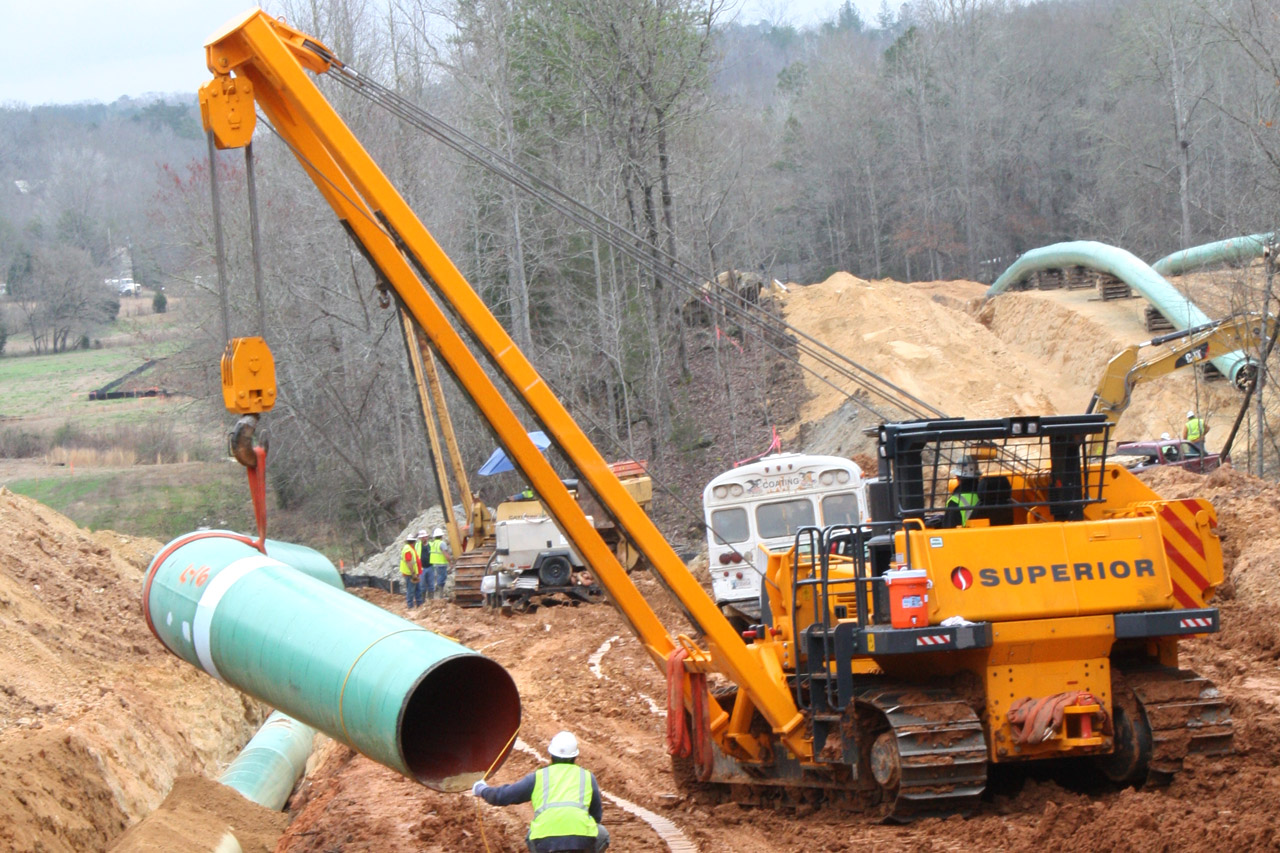

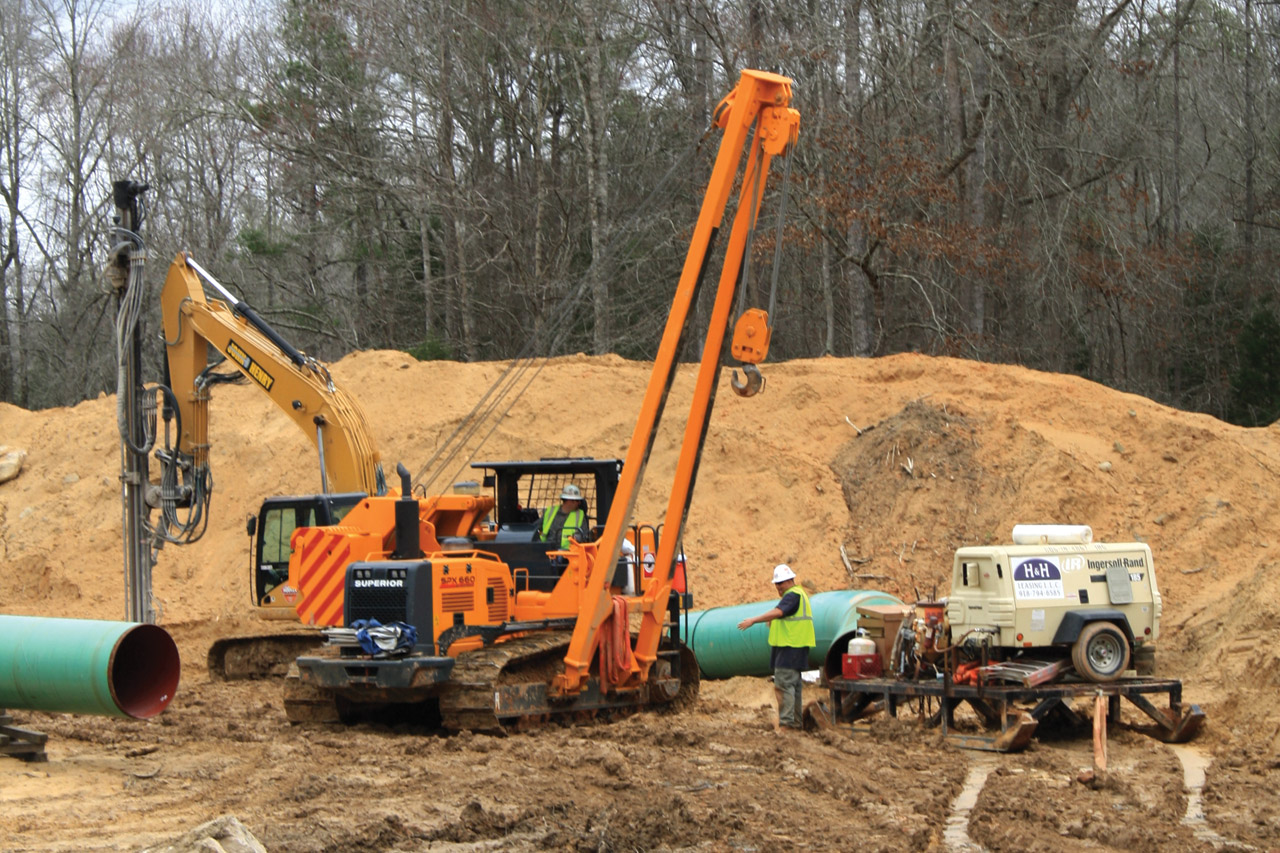

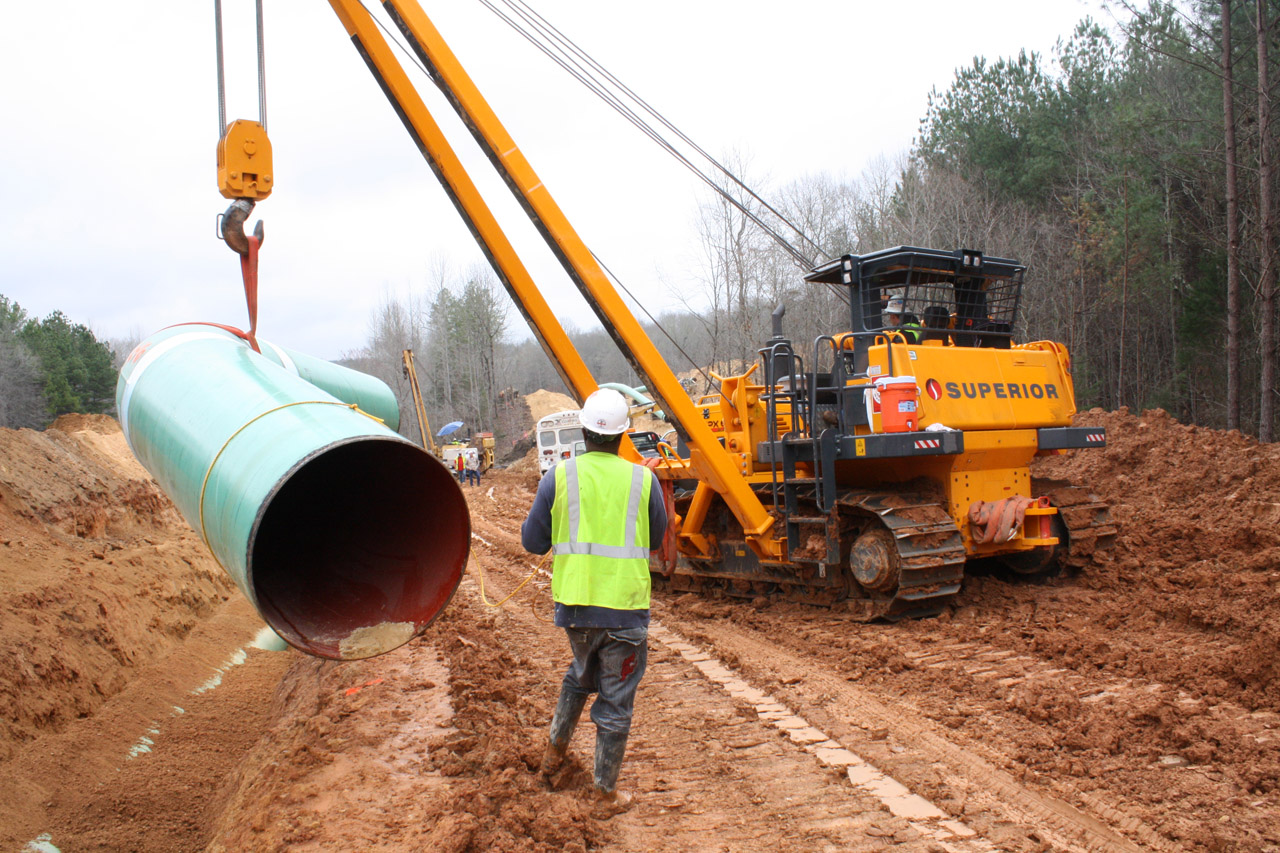

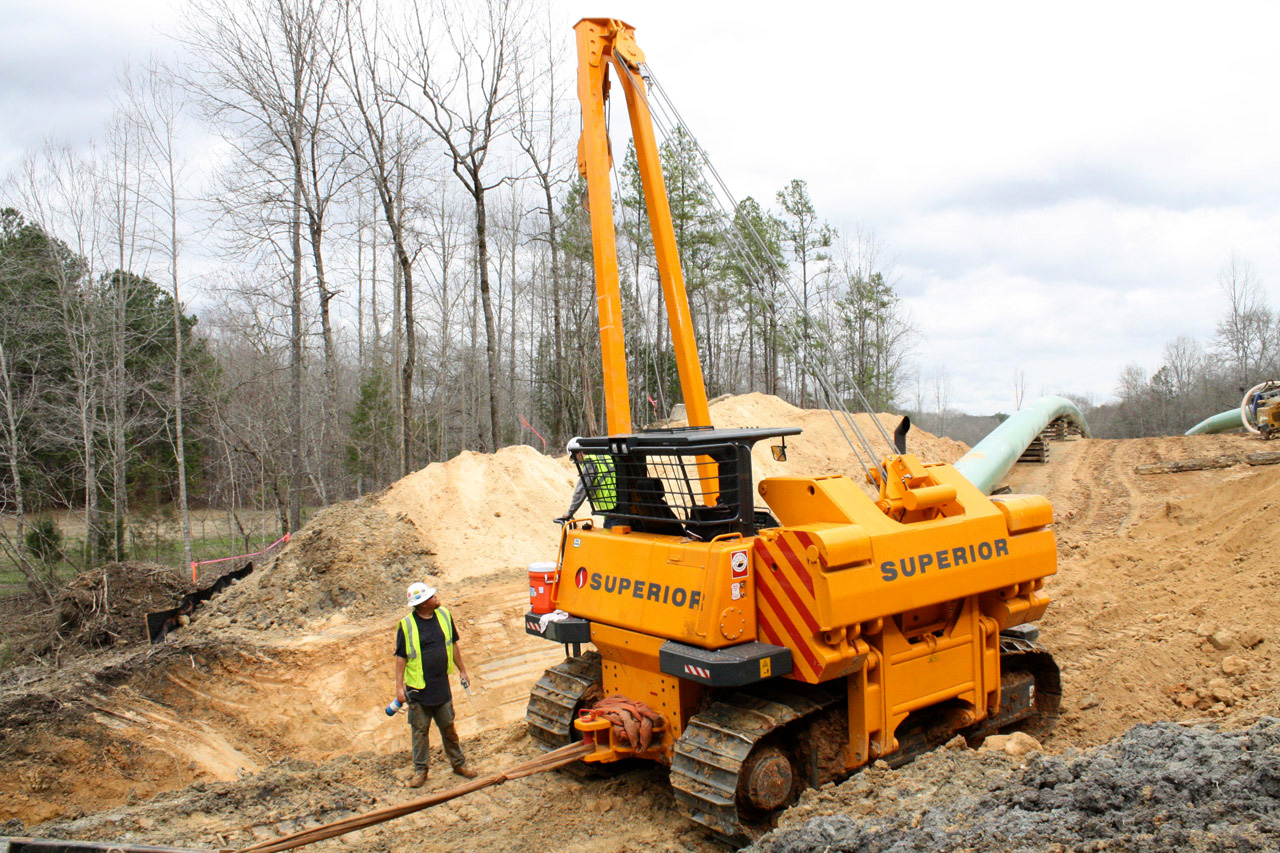

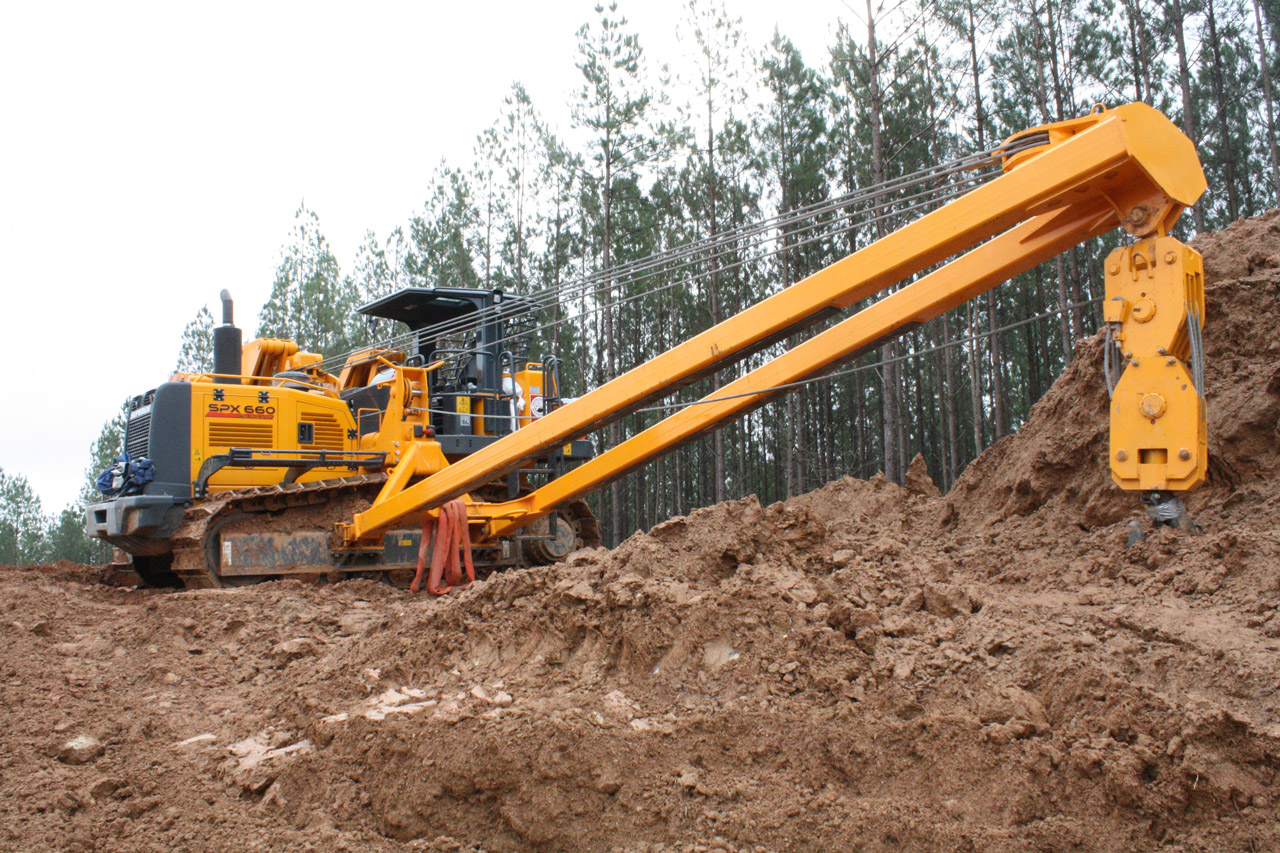

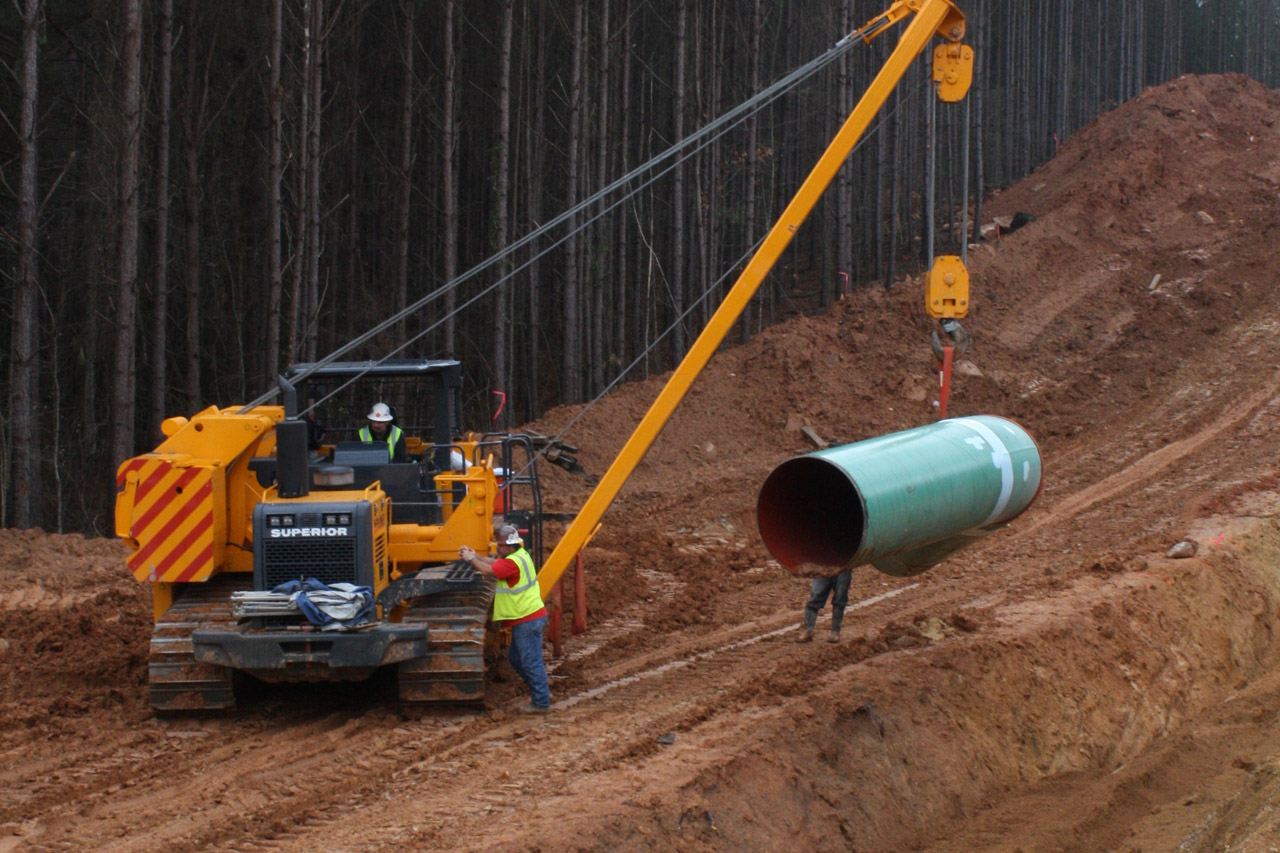

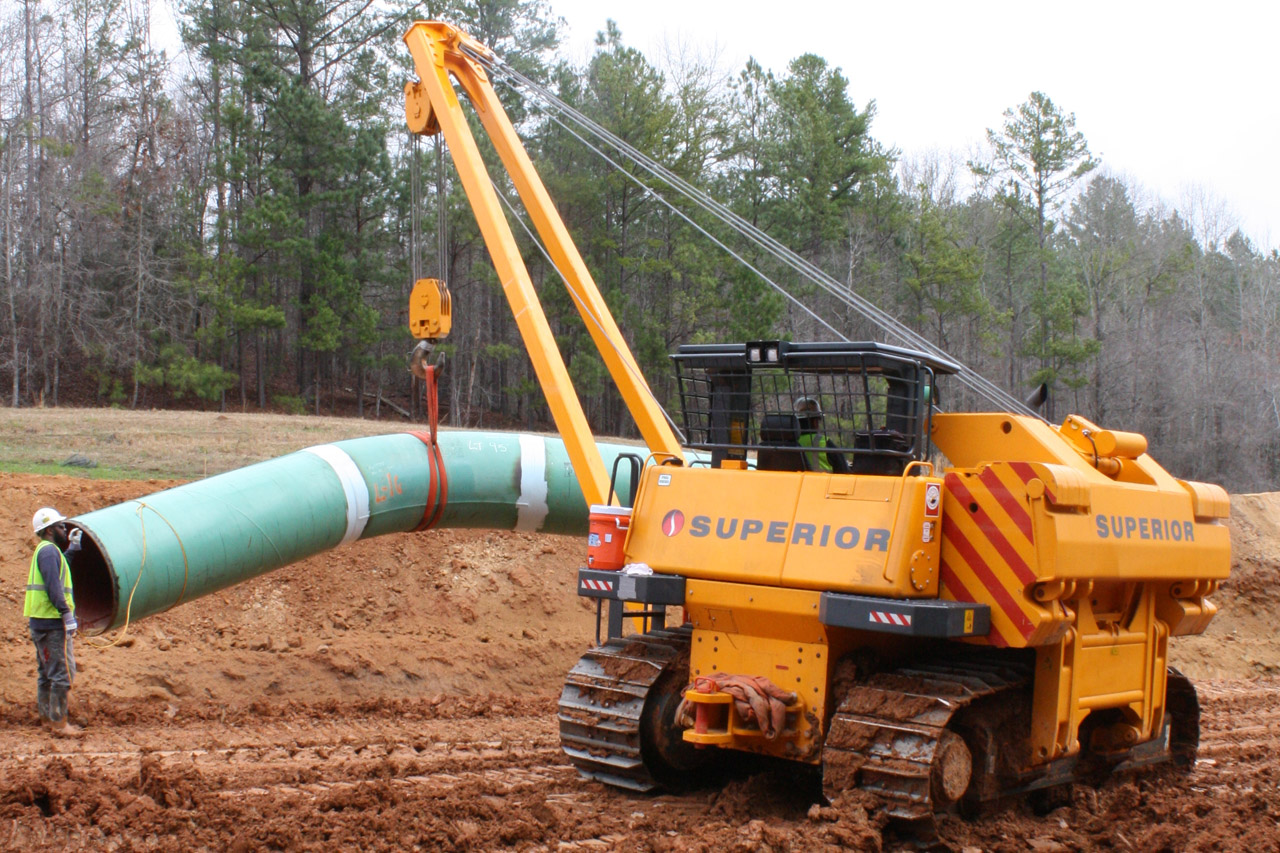

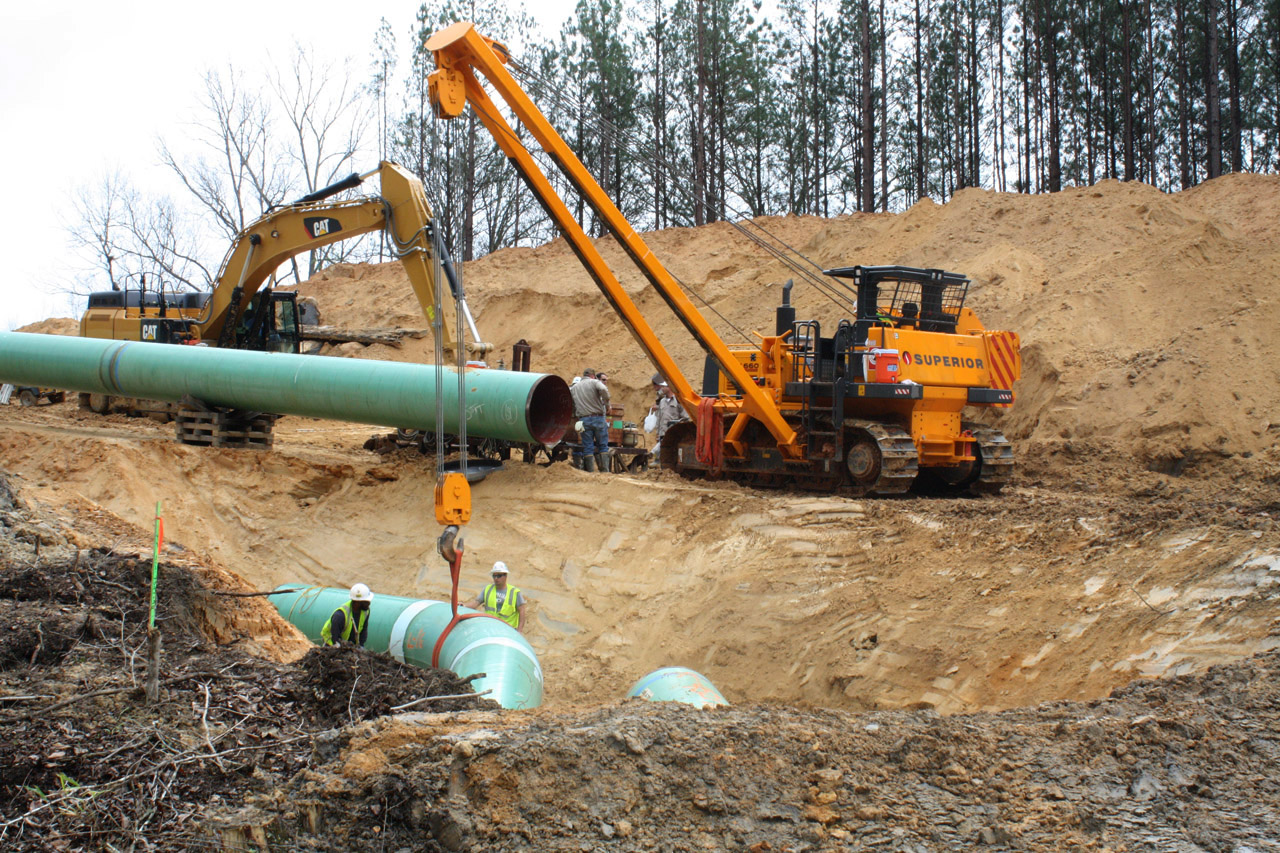

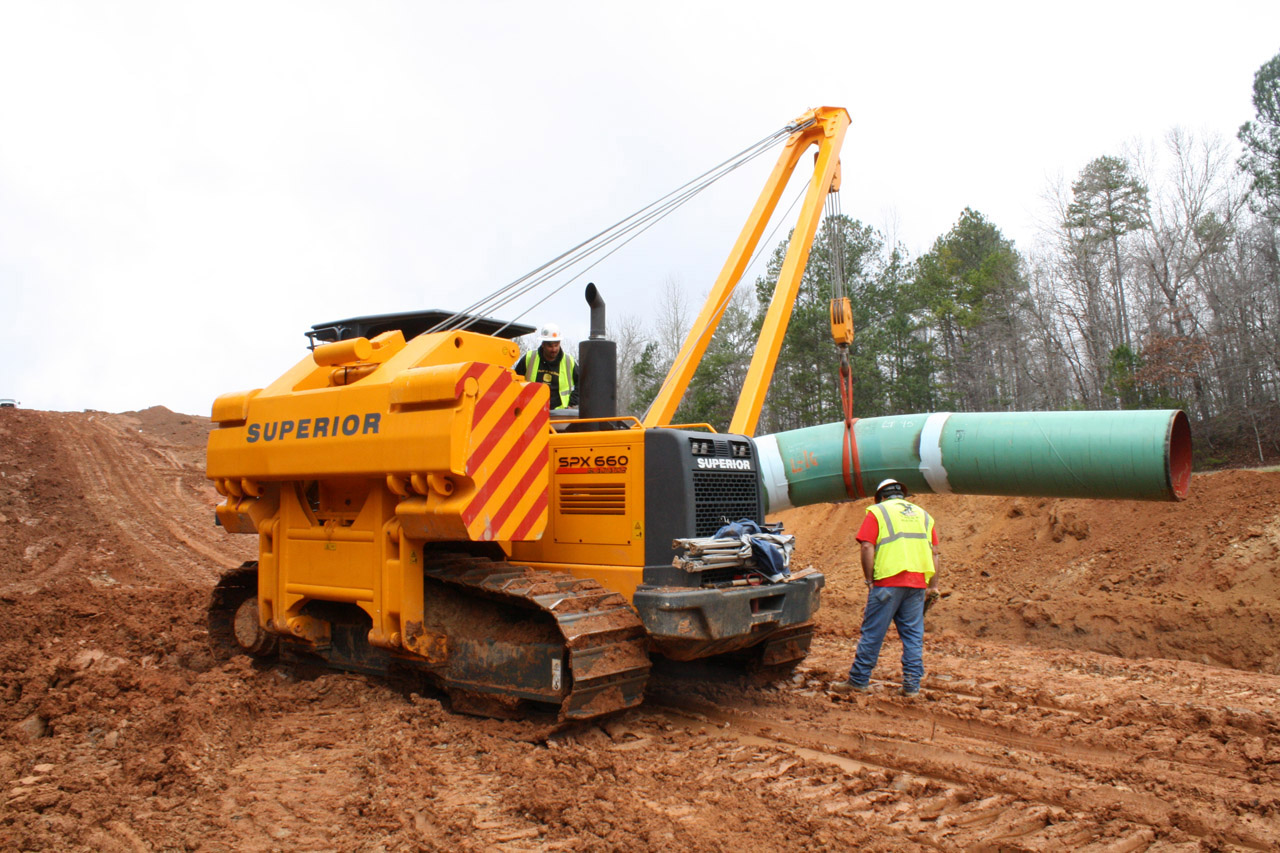

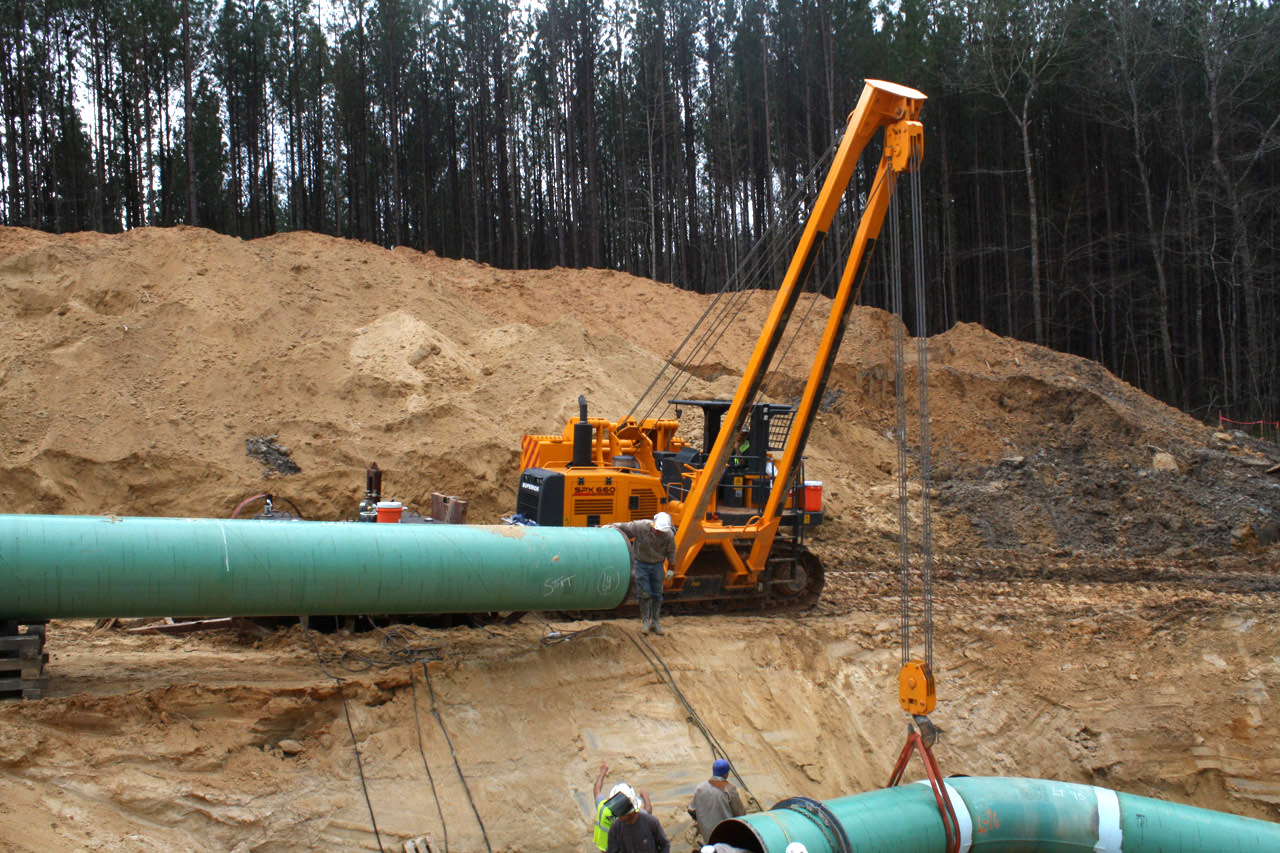

Overview


The SPX-660 is SUPERIOR's pipelayer equivalent to Caterpillar's 583 pipelayer. It has a maximum lifting capacity of 143,960 lbs (65,300 kg) and a tier 3 Caterpillar engine. Like all SUPERIOR pipelayers, it features a hydraulic system which allows to control the load with just one joystick.

  • Specifications


Main pumps
(BOSCH-REXROTH) 3 independent variable pumps
Maximum capacity
2x180 lt/min -1x119 U.S. gal/min
Maximum operating pressure
400 bar - 5,800 p.s.i.
Service pumps
1 tandem gear type
Maximum capacity
50 lt/min -13 U.S. gal/min
Net flywheel power (DIN 6270 - SAEJ 1349)
350 HP - 261 kW
Type
CATERPILLAR
Governed speed
2,200 rpm
Model
C9 ACERT
Type
Hydrostatic closed circuit
Maximum speed
1 Speed: 1 mile/hr - 2.6 km/h / 2 Speed: 3.8 miles/hr - 6.2 km/h
Brakes
(2) Integrated negative control
Final Drives
Epicycloidal oil soaked
TPS system
twin steering system with two levers, to drive the tracks independently for greater maneuverability.
Type
Twin pilot operated
Safety
Emergency shut-off
Capacity (total)
220 Ah
Starter capacity
7.5 Kw
Operating voltage
24 V
Maintenance free supplied batteries
2
Alternator
55 A
Hydraulic system circuit
280 liters - 74 U.S. gal
Fuel tank
310 liters - 82 U.S. gal
Cooling system
45 liters - 12 U.S. gal
Engine oil
27 liters - 7 U.S. gal
Type
Hydraulic controlled drums (reversible.) Driven by variable flow hydraulic pump and control valve block in open circuit.
Brakes
Integrated multiple disk brake, spring applied hydraulic release.
Final drive
Compact hydrostatic drive unit, three-stage planetary gear
Drum diameter : Hook
390 mm / 15.3 in
Flange diameter : Hook
590 mm / 23.2 in
Drum length : Hook
360 mm / 14.1 in
Capacity (19 mm / 3/4 in) : Hook
136 m / 446 ft
Wire rope installed : Hook
68 m / 223 ft
Hook speed
0-16 m/min / 0-52 ft/min
Drum diameter : Boom
390 mm / 15.3 in
Flange diameter : Boom
530 mm / 20.8 in
Drum length : Boom
360 mm / 14.1 in
Capacity (19 mm / 3/4 in) : Boom
105 m / 344 ft
Wire rope installed : Boom
51 m / 167 ft
Optional
24 ft / 7.4 m welded box square section
Type
Std. 20 ft / 6.1 m welded box square section
Diameter wire rope
19 mm - 3/4 in
Minimum breaking strength rope
323 KN - 72,530 lb
Part load line
6
Part boom line
5
QD-CS: quick-disconnected counterweight system. For the possibility of quick disassembly.
Removable counterweight
13 leaves 600 kg - 1,300 lb each
Total weight extendable
9,900 kg - 21,825 lb

  • Main Features

Controls

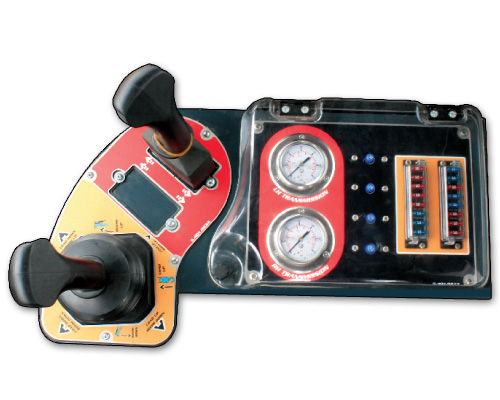

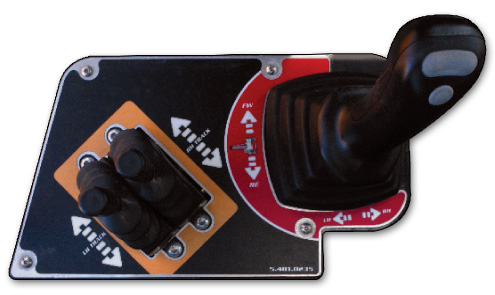

With only 1 joystick, the operator can operate both winches and increase/decrease the engine's throttle. The machine's travel is controlled with a separate joystick.

< Click image to enlarge

Anti-Tipping System

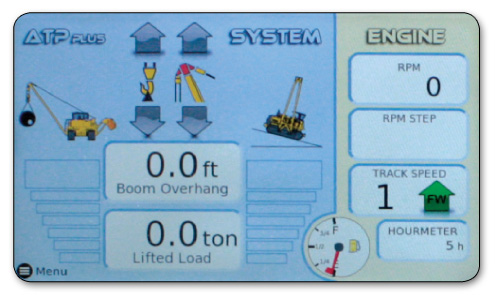

It monitors different lifting operations to avoid dangerous tilting and ensures the stability of the machine.

Freefall System


When the button is engaged, the load free-falls all the way to the ground.

< Click image to enlarge

Transmission Pilot Levers


There are 2 extra pilot levers for the transmission which can assist the operator in making precise maneuvers, such as turning on a steep hill or making pin-point movements to couple the pipes.

< Click image to enlarge

Boom Kick-Out System

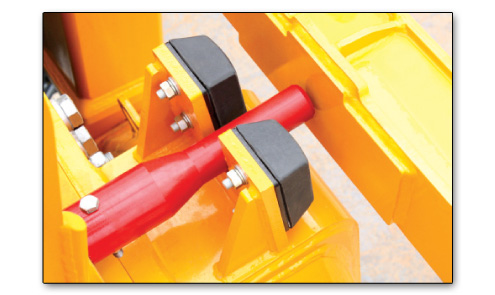

This system will prevent the boom from excessive upward movement, thus ensuring you will never bend another boom.

< Click image to enlarge

LCD Control Panel

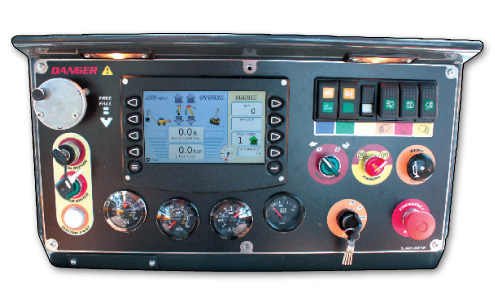

The LCD control panel displays relevant information in a beautiful, easy to read, graphical interface. It can also be adjusted for day or night viewing.

< Click image to enlarge

Anti-Two Block


The anti-two block sets a minimum distance between the top block and the hook block, preventing the 2 blocks from touching.

< Click image to enlarge
