Overview

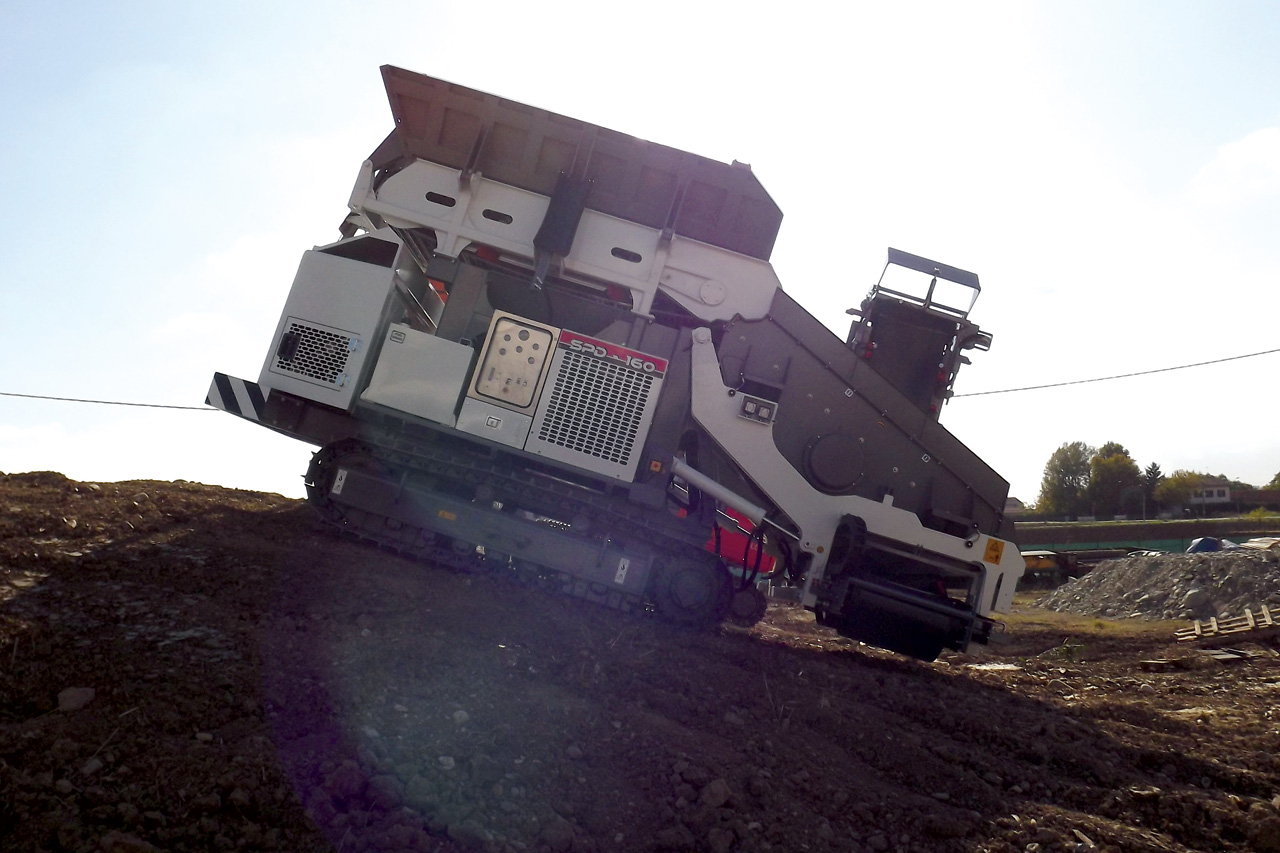

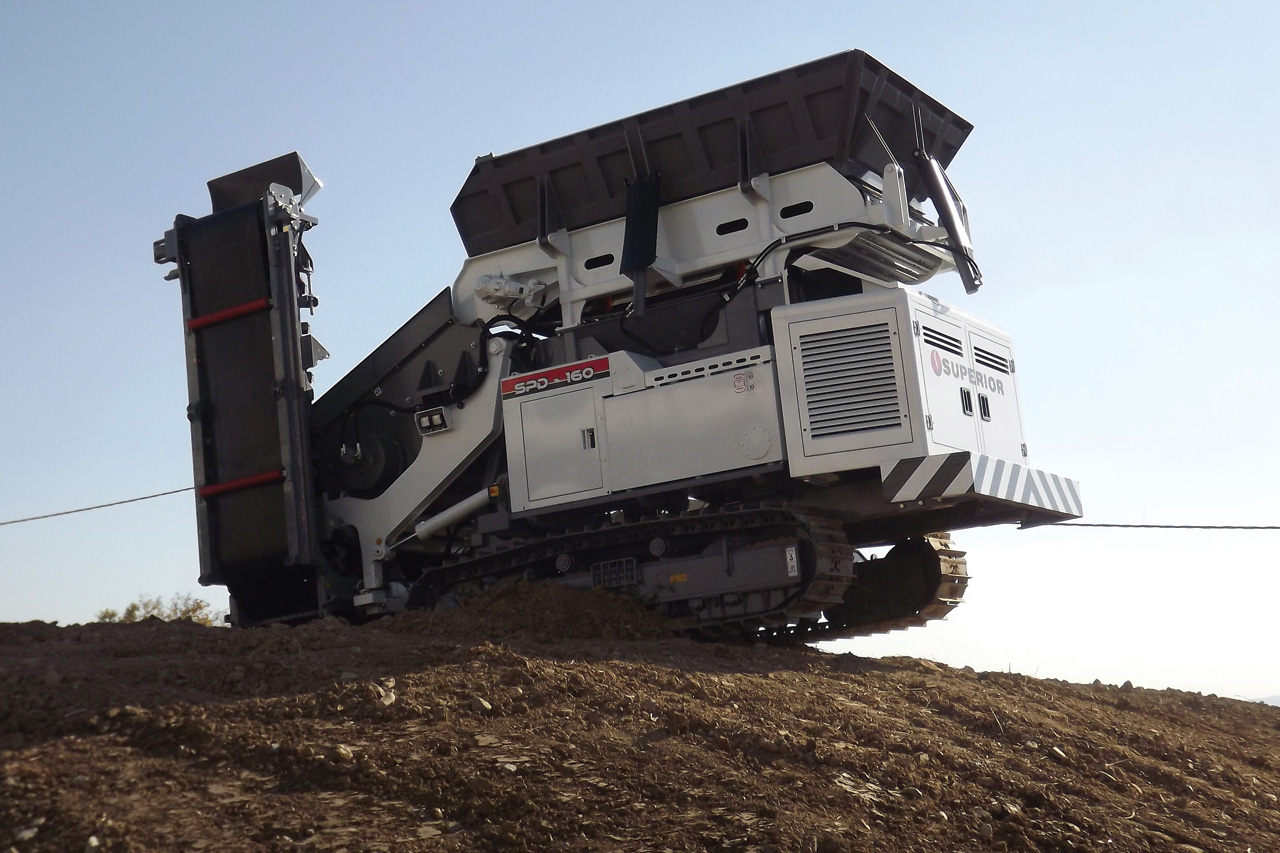

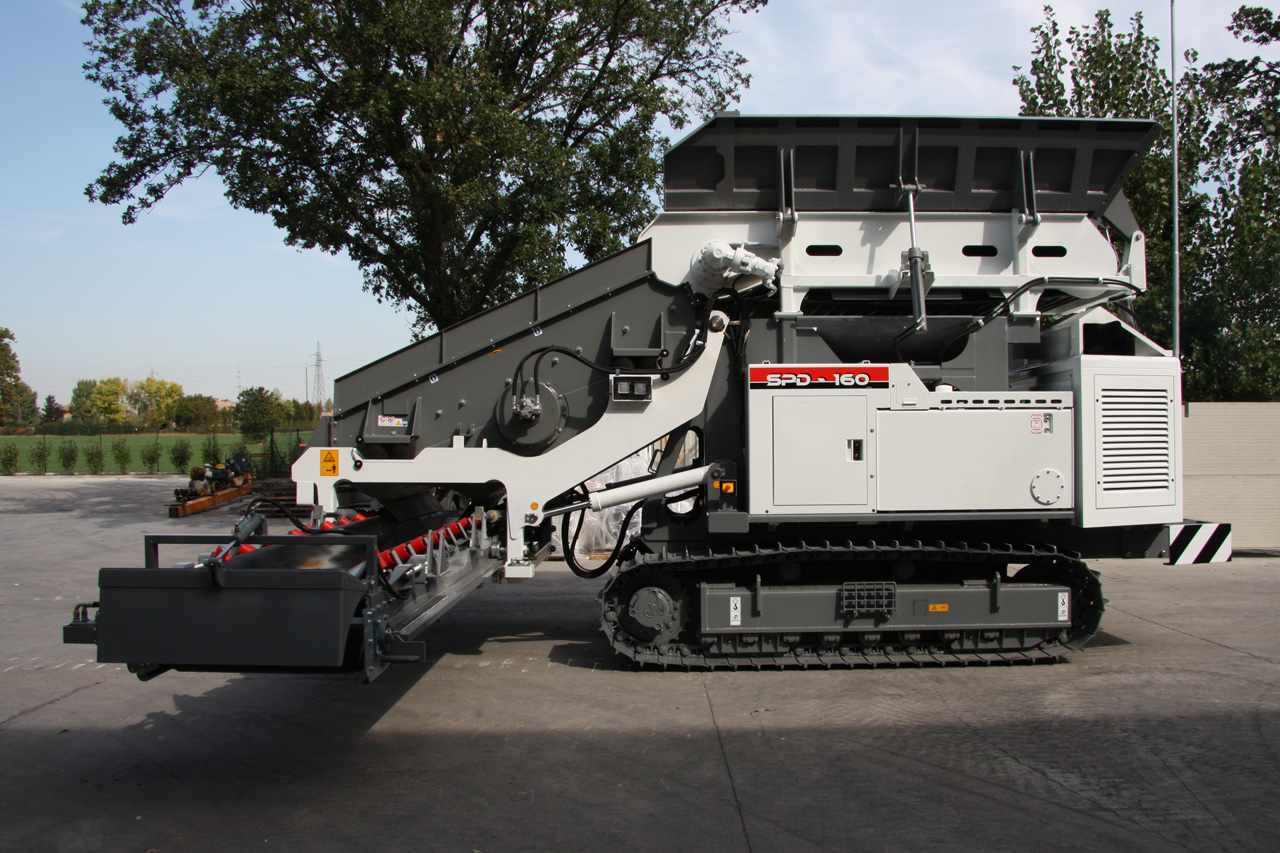

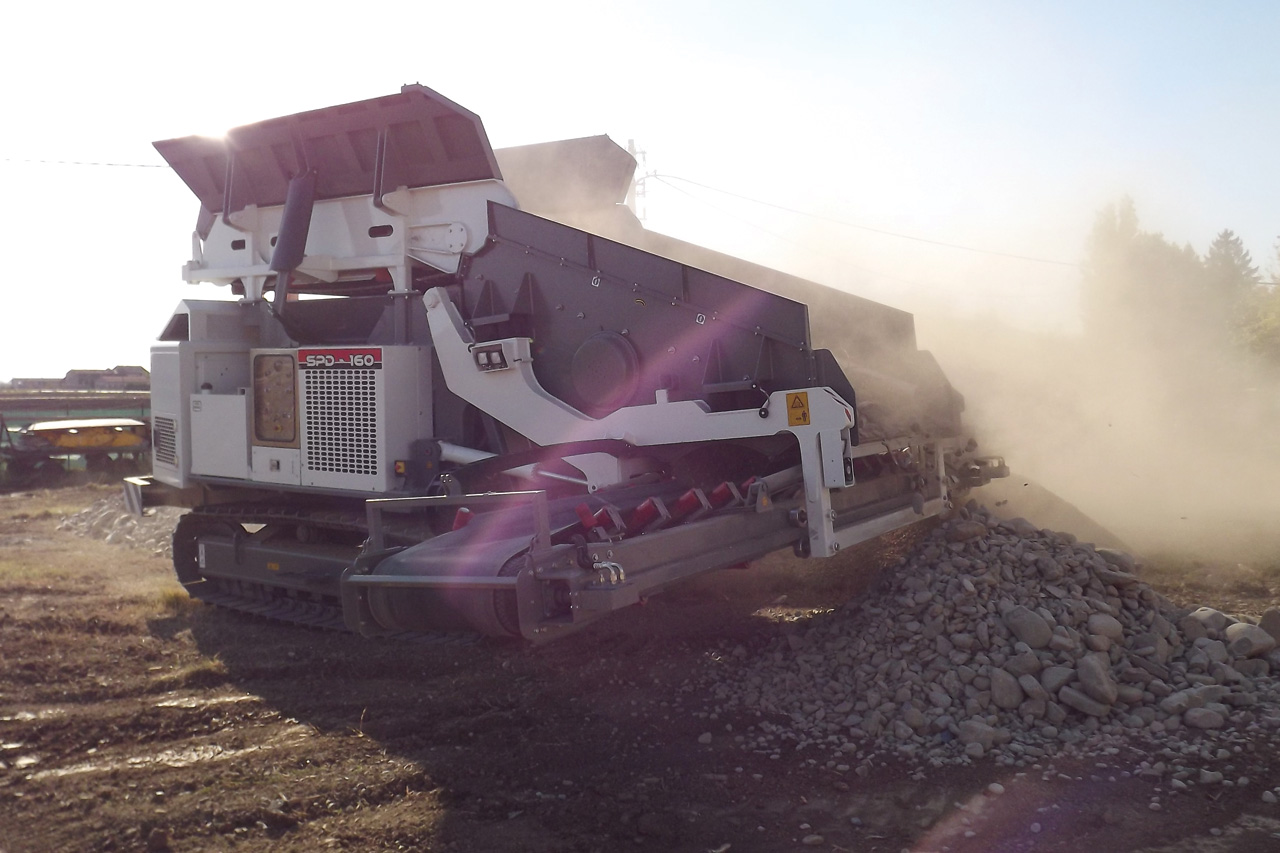

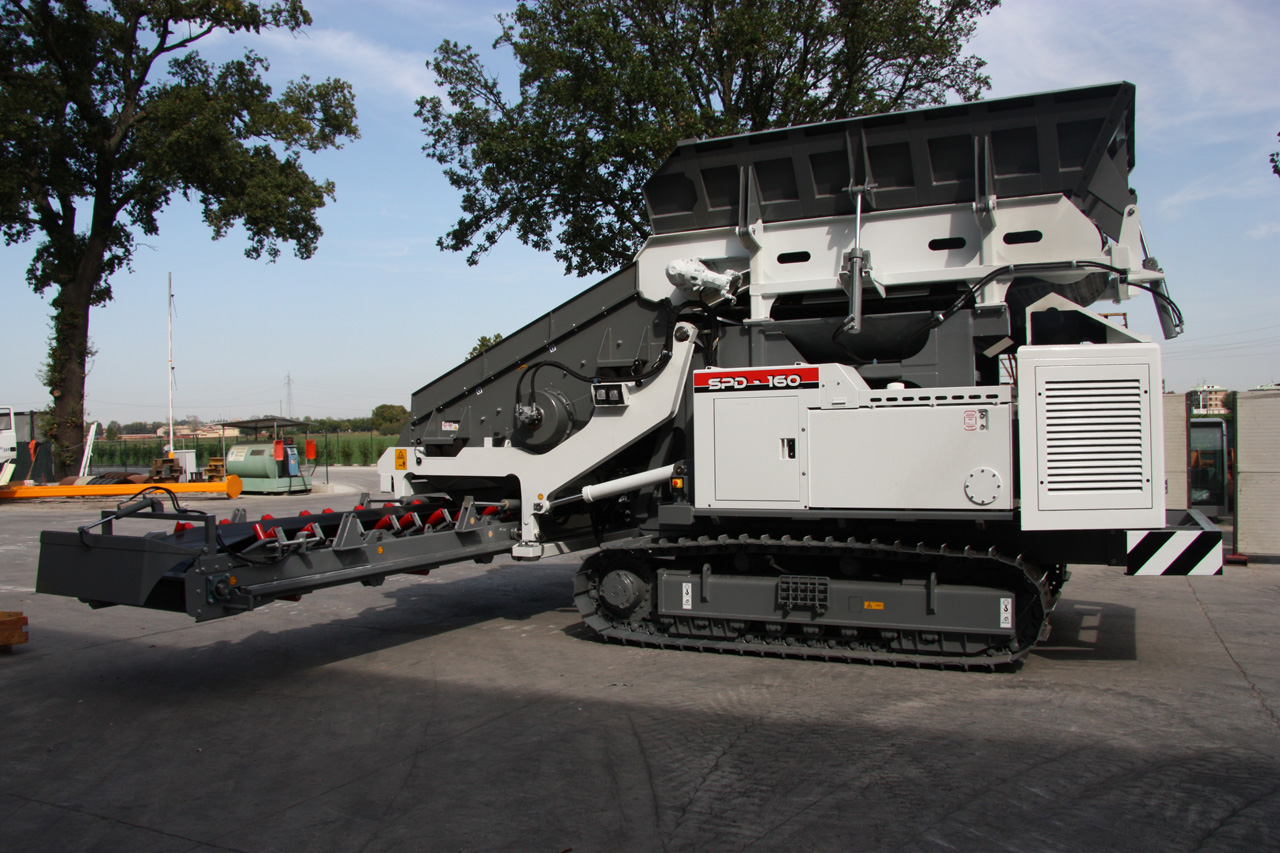

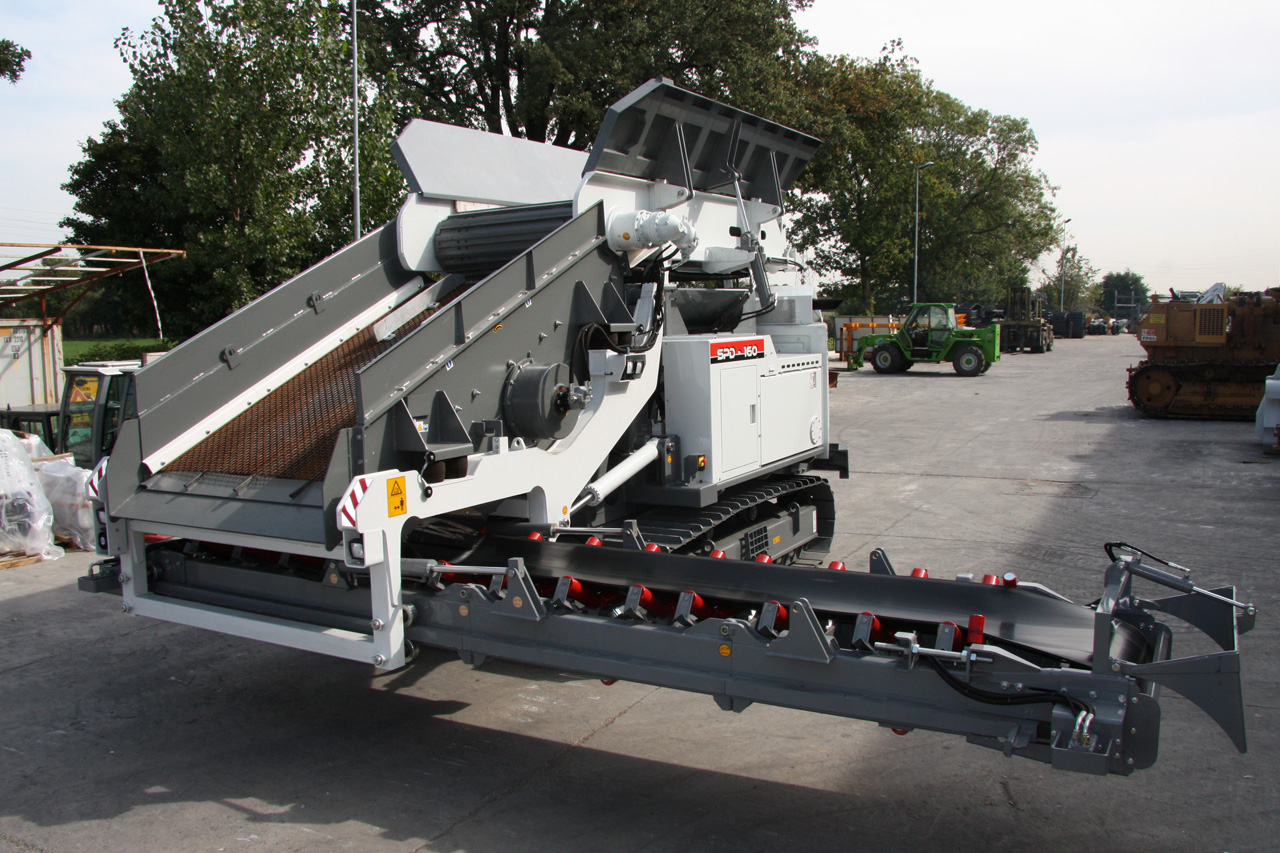

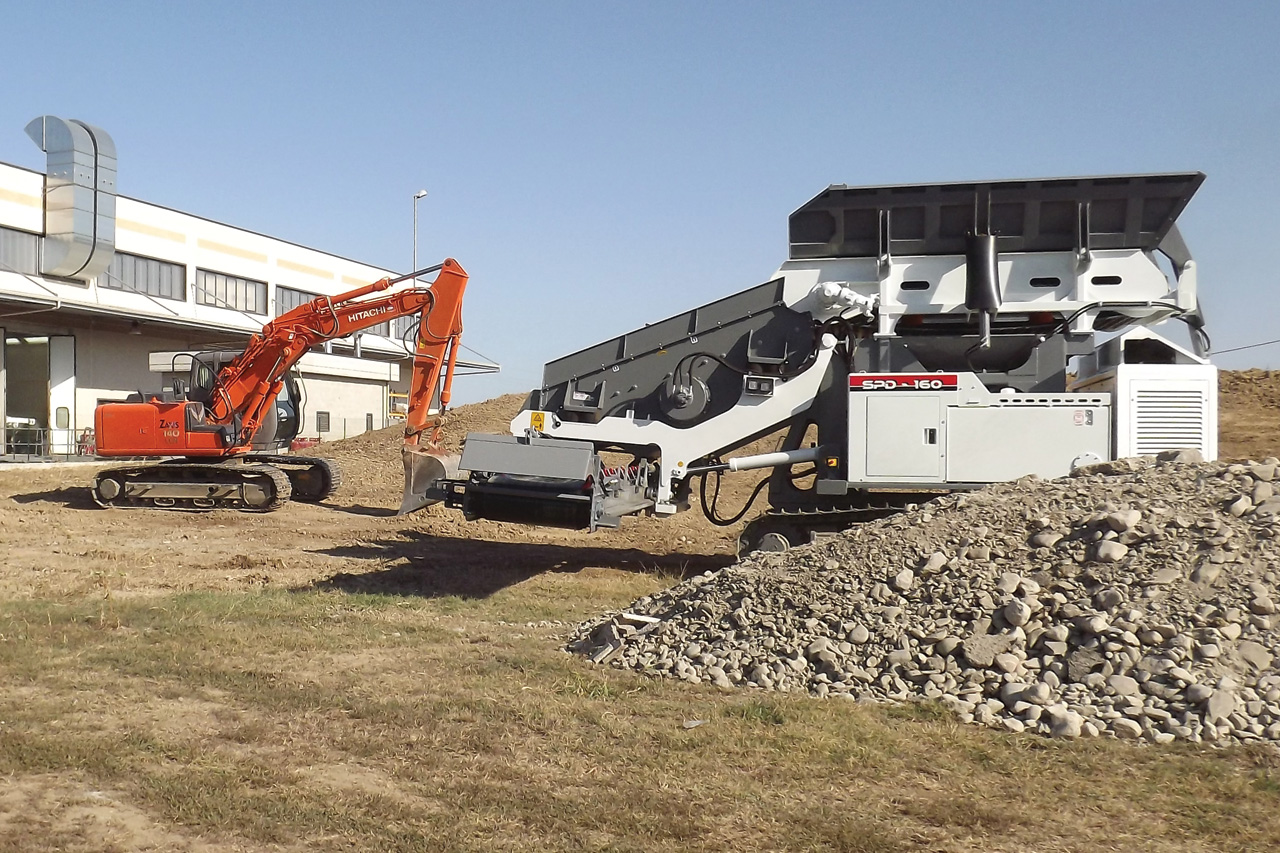

The SPD-160 — a top-loading, remote-controlled padding machine — works in conjunction with an excavator, which feeds dirt into its shaker. The SPD-160 is ideal for job sites with soil conditions that would make conventional front-loading feeding difficult, such as when the soil is hard or sticky, or when there are sharp turns along the ditch.

  • Specifications


Main pumps
Bosch-Rexroth: 2 independent hydrostatic variable pumps travel
Maximum capacity
2x150 lt/min - 2x40 U.S. gal/min
Maximum working pressure
420 bar - 6,090 p.s.i.
1 hydrostatic pump escalator
Maximum capacity
118 lt/min - 31 U.S. gal/min
Maximum operating pressure
350 bar - 5,075 p.s.i.
1 hydrostatic variable load sensing service
Maximum capacity
95 lt/min - 25 U.S. gal/min
Maximum operating pressure
250 bar - 3,625 p.s.i.
Type
CATERPILLAR
Governed speed
2,100 g/pm
Net flywheel power (DIN 6270)
225 HP - 168 kW
Model
C-6.6
Displacement
6.6 lt - 403 cu in
Type
Hydrostatic
Motors
(HYDROMATIC) two motors with axial pistons disappearing into the track frame
Maximum speed
3.4 km/h - 2.2 miles/hr
Brakes
Integrated negative control
Final Drives
Epicycloidal oil soaked
Type
Electronic remote control
Safety
Emergency shut-off
Type
Hydrostatic, operator controlled, variable speed
Speed
0-60 rpm
Chain adjusters
Hydraulic
Reversible double chain escalator with steel shoes
Shoes width
1,600 mm - 63 in
Maximum feed size
570 mm - 22 in
Interchangeable screen cloth
1/2" to 4"
Width
1,820 mm - 71.5 in
Length
2,880 mm - 113.3 in
Area
57 sq ft - 5.2 sq m
Number of decks
2
Maximum capacity
209 cu m/h
Transmission
Hydrostatic
Hydraulic motor
1 gear type
Type
Rubber
Width
800 mm - 32 in
Length (long belt)
6,000 mm - 236 in
Length (short belt)
4,500 mm - 177 in
Variable speed
0 - 440 mt/min
Rotation capability
Reversible
Bilateral hydraulic extension slide
Transmission
Hydraulic variable speed
Hydraulic motors
2 orbital type
Operating voltage
24 V
Maintenance free supplied batteries
2
Capacity
120 Ah
Alternator
60 A
Starter
7.5 Kw
Fuel tank
200 liters - 52 U.S. gal
Hydraulic circuit
450 liters - 118 U.S. gal

  • Main Features

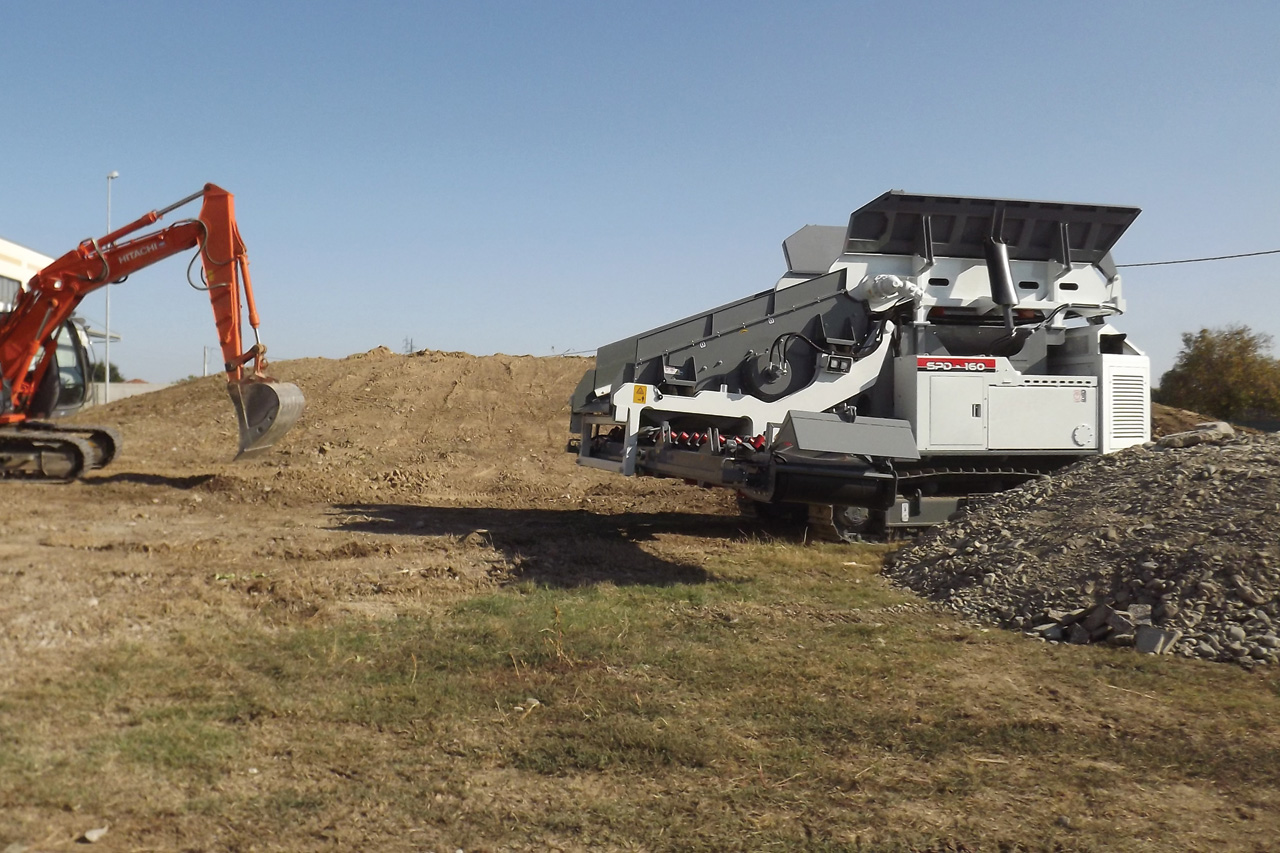

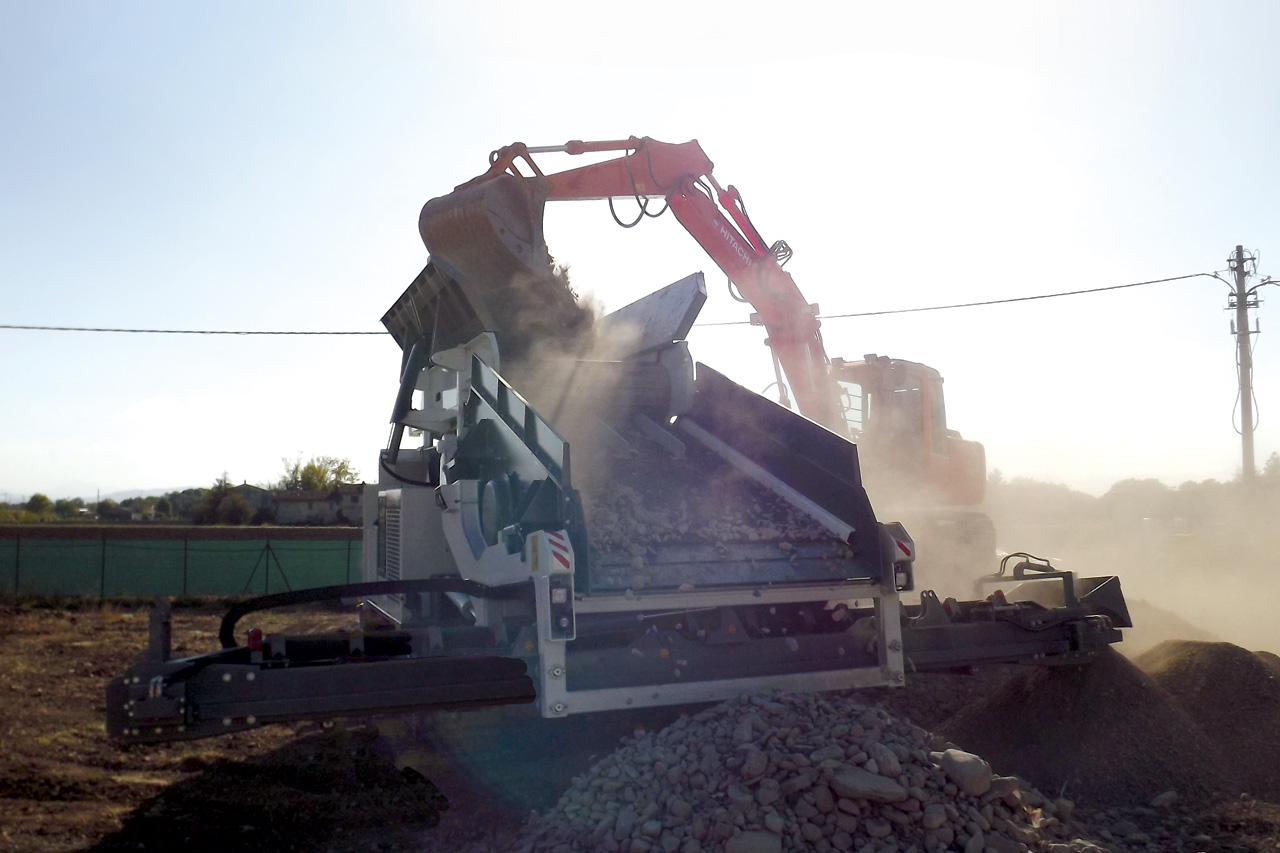

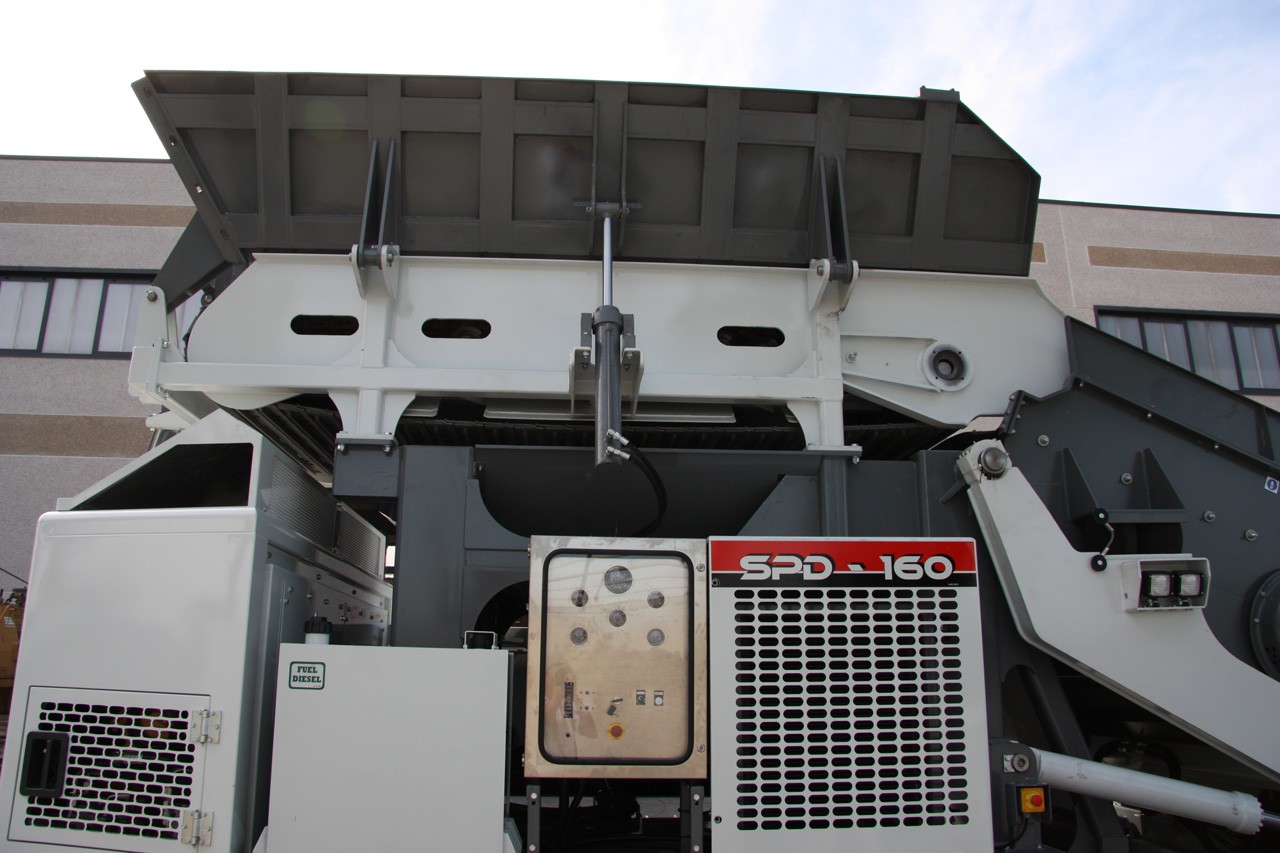

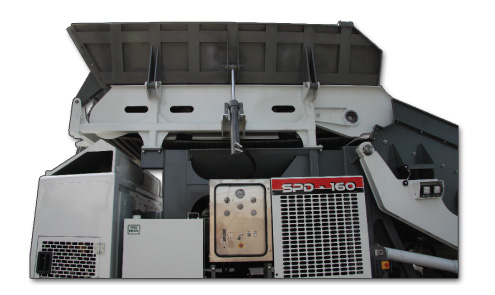

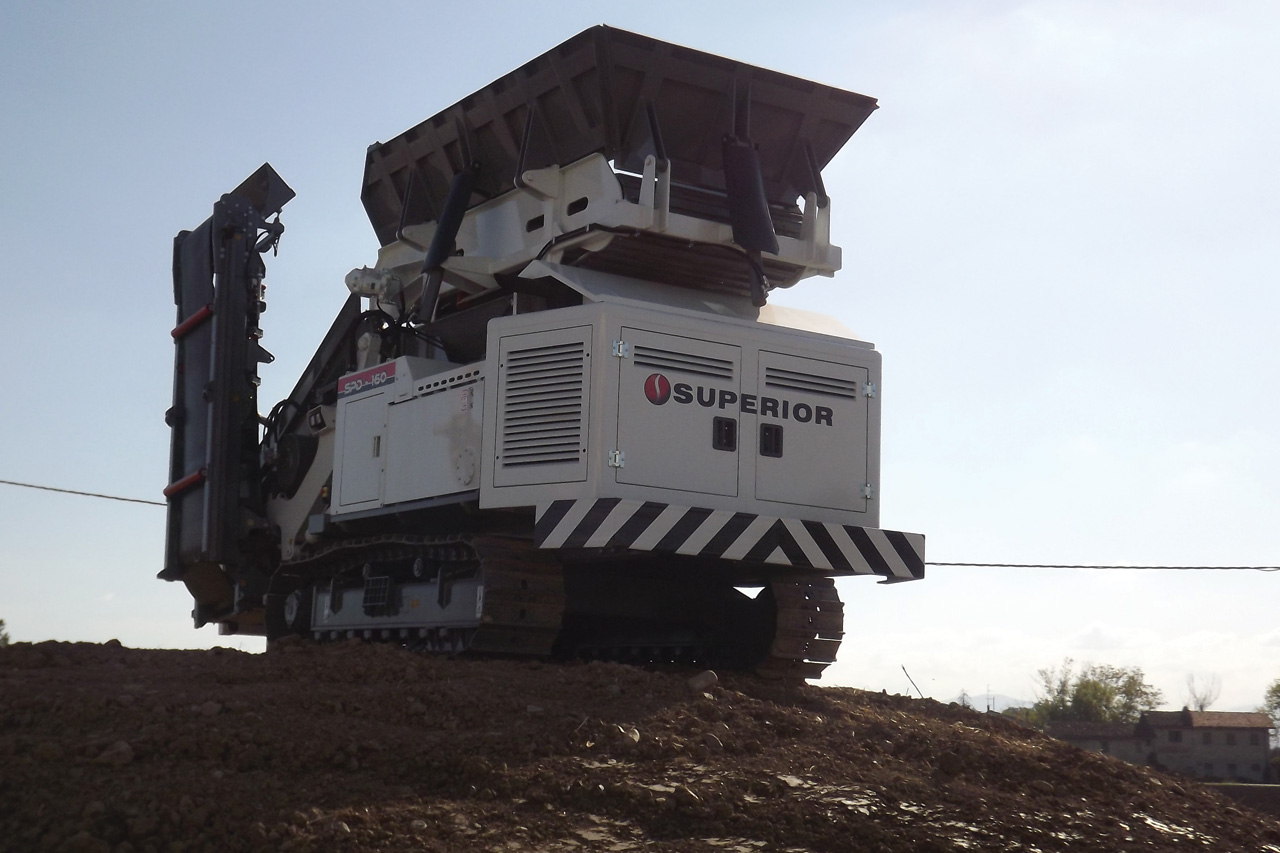

Top Loading Feeding System


The top-loading system allows to easily feed material into the padder with an excavator. This was designed for very sticky soil conditions or where maneuverability is limited.

< Click image to enlarge

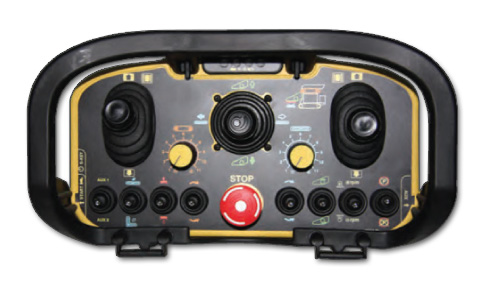

Remote Controller


The machine is operated with an ergonomic remote controller. Each movement is controlled by 10 levers. Tracks levers can maintain their position. The controller features an emergency button and engine RPM regulations.

< Click image to enlarge

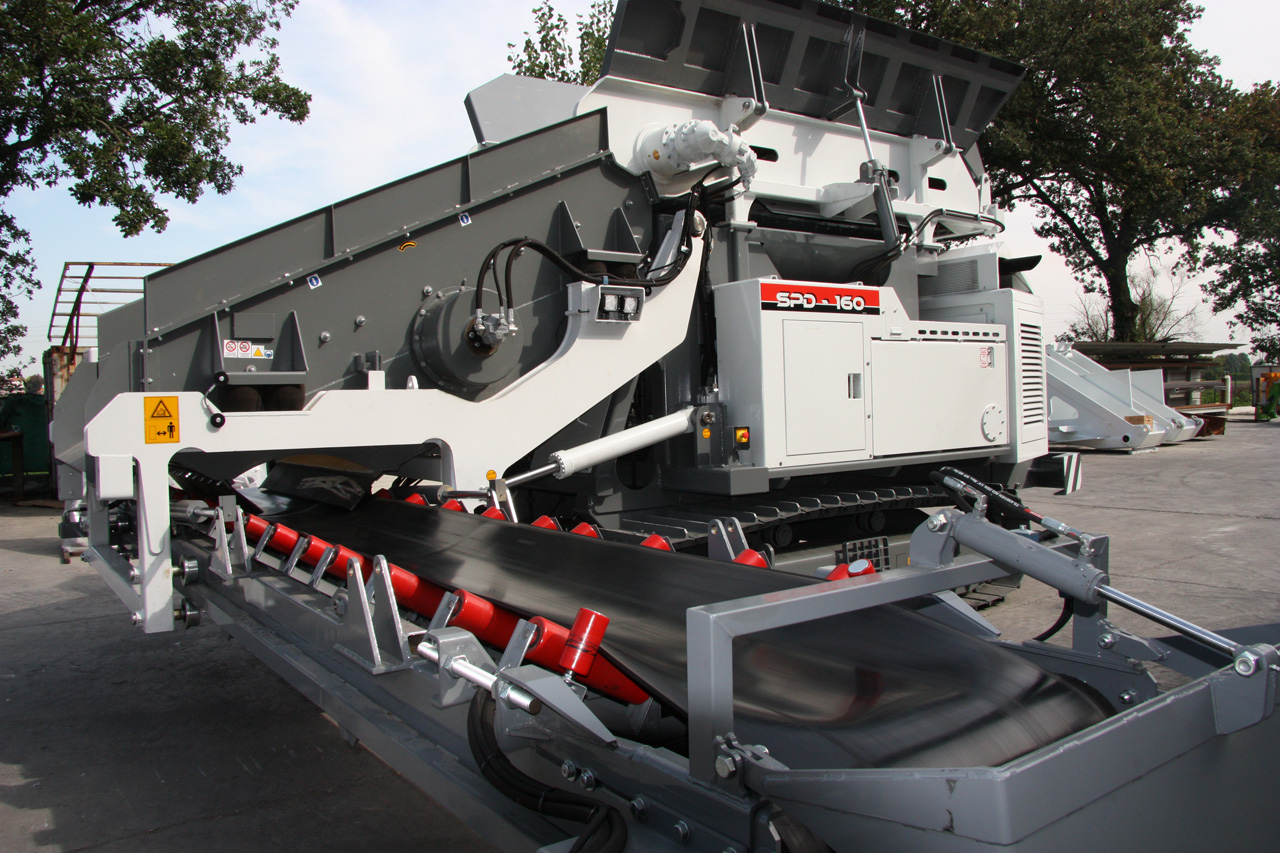

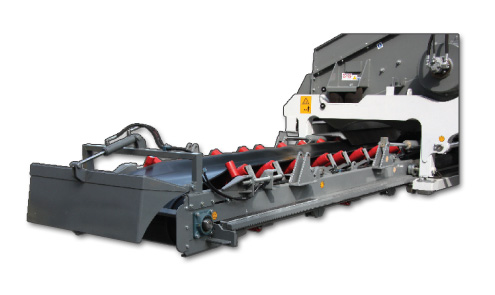

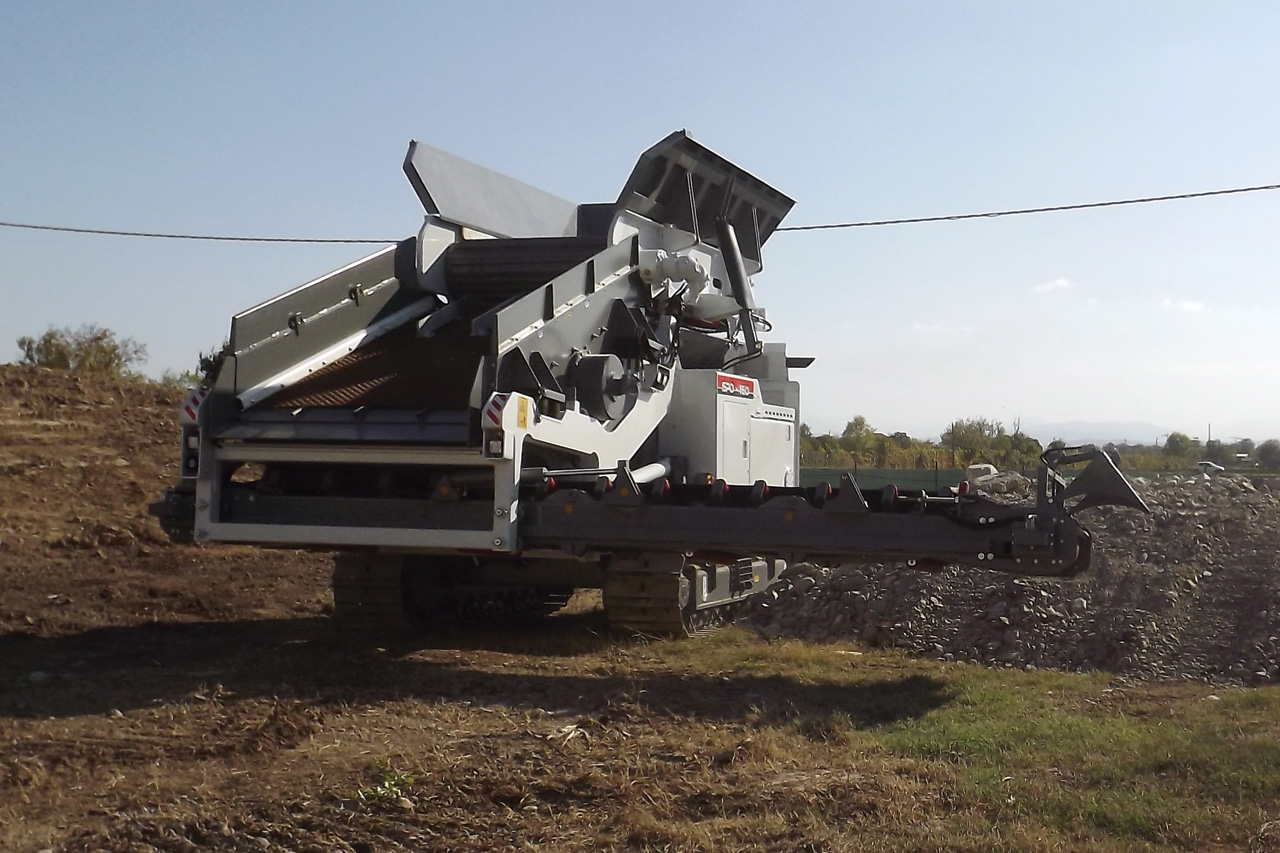

Reversible Conveyor


Conveyor can be used on either side of machine. It also can be folded into 2 parts for easy shipping w/o disassembly.

< Click image to enlarge

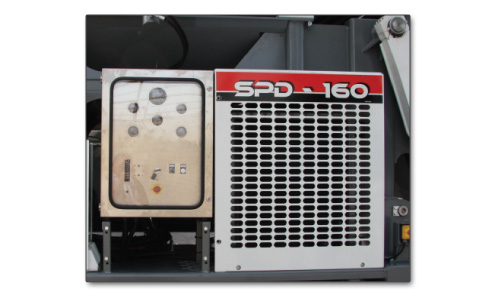

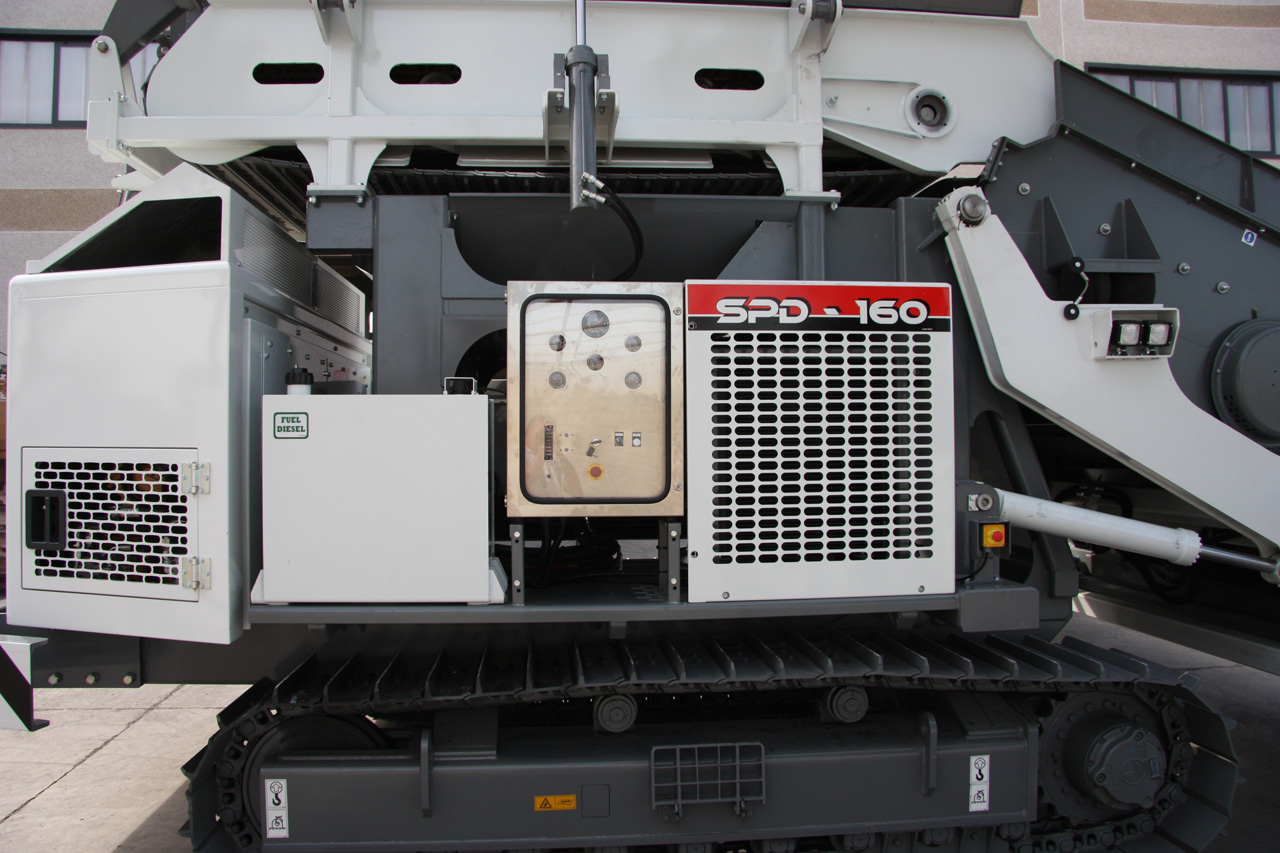

Insulated Engine


The engine compartment is insulated to reduce noise in order to comply with EU noise limit requirements.

< Click image to enlarge
