Overview

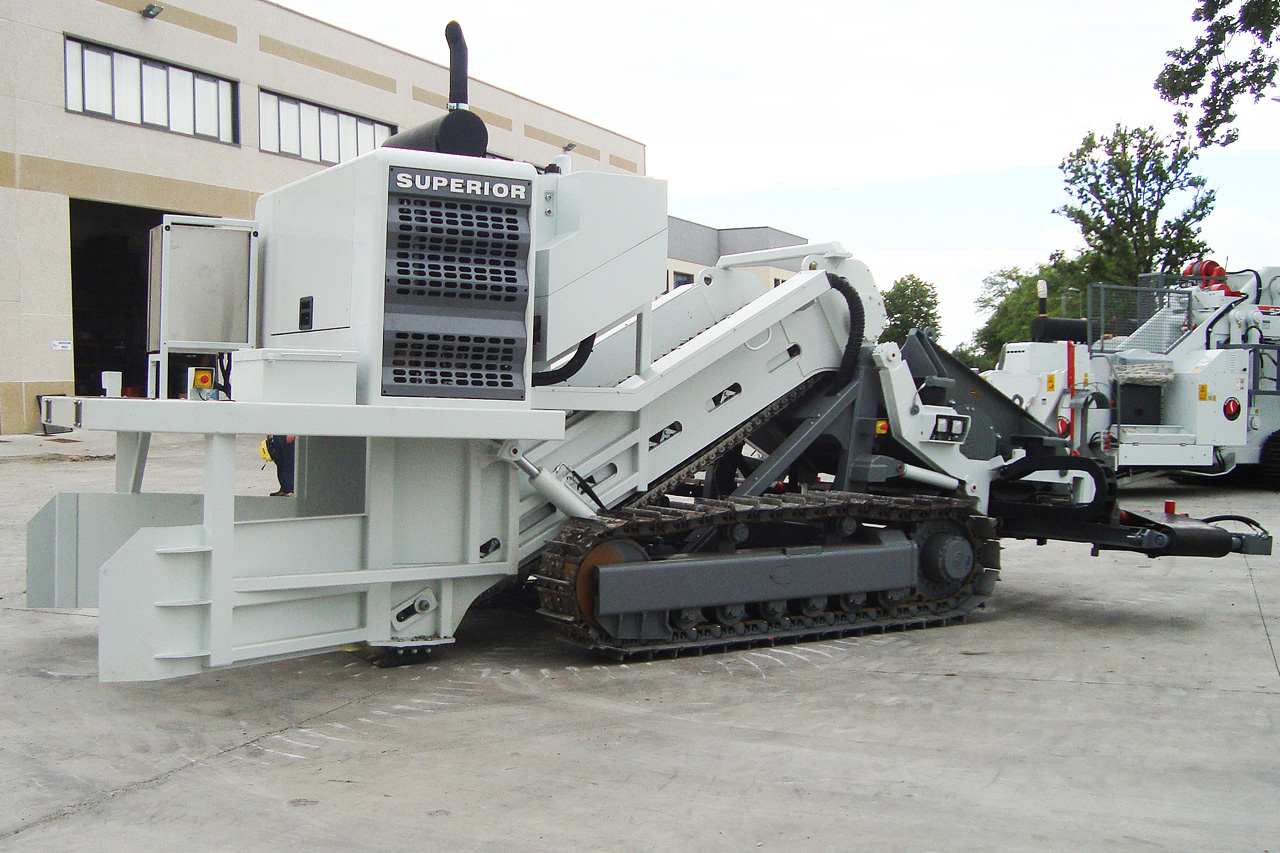

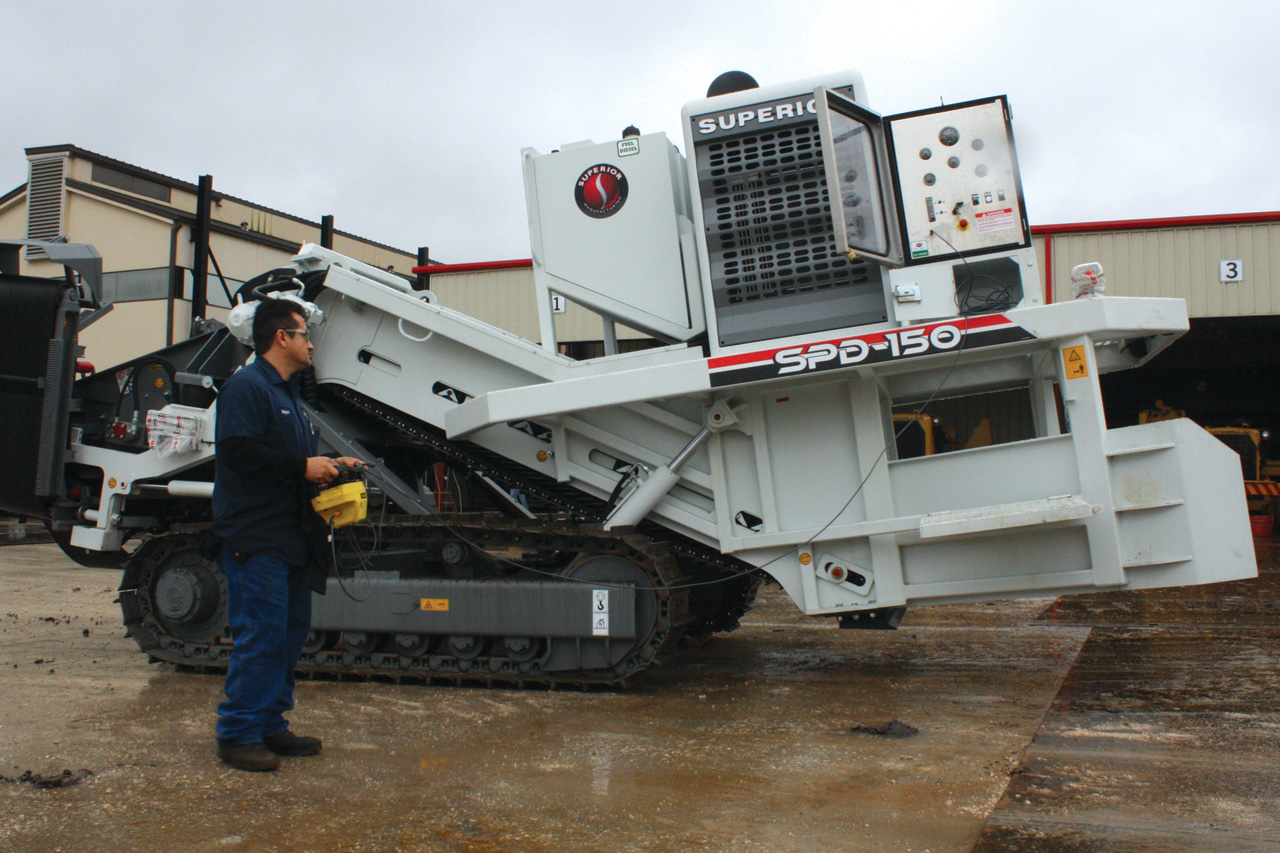

SUPERIOR's entry level padding machine is the perfect solution for small padding jobs. Thanks to its compact design, the SPD-150 can be operated by remote control or from the seat located on the side of the machine. This machine is ideal for very small pipe size jobs or job sites where accessibility is limited due to transportation or permit constrictions.

  • Specifications


Main pumps
Mannesmann: 2 independent variable pumps travel
Maximum capacity
2x135 lt/min - 35.6 U.S. gal/min
Maximum working pressure
400 bar - 5,800 p.s.i.
1 hydrostatic pump escalator
Maximum capacity
150 lt/min - 39.5 U.S. gal/min
Maximum operating pressure
300 bar - 4,350 p.s.i.
Service pump
1 tandem gear type
Maximum capacity (service pump)
46+21 lt/min - 12.2+5.5 U.S. gal/min
Type
CATERPILLAR
Governed speed
2,200 g/pm
Net flywheel power (DIN 6270)
140 HP - 103 kW
Model
C4.4 ACERT
Type
Hydrostatic
Motors
(HYDROMATIC) two motors with axial pistons disappearing into the track frames
Maximum speed
3.4 km/h - 2.2 miles/hr
Brakes
Integrated negative control
Final Drives
Epicycloidal oil soaked
Type
Electronic remote control
Safety
Emergency shut-off
Type
Hydrostatic, operator controlled, variable speed
Vertical adjustment
Minus 8 inches to plus 2 ft
Chains adjustment
Mechanical
Reversible screen mesh chain
Maximum feed size
1,600 mm - 63 in
Interchangeable screen mesh
1/4” to 1-1/2”
Width
1,360 mm - 54 in
Type
Rubber
Width
500 mm - 20 in
Length
4,750 mm - 16 ft
Variable speed
0 - 230 mt/min
Rotation capability
Reversible
Bilateral hydraulic extension slide
Transmission
Hydraulic variable speed
Hydraulic motors
2 orbital type
Operating voltage
24 V
Maintenance free supplied batteries
2
Capacity
120 Ah
Alternator
30 A
Starter
4 Kw
Fuel tank
300 liters - 80 U.S. gal
Hydraulic circuit
460 liters - 123 U.S. gal

  • Main Features

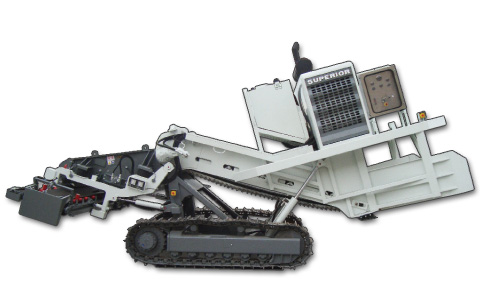

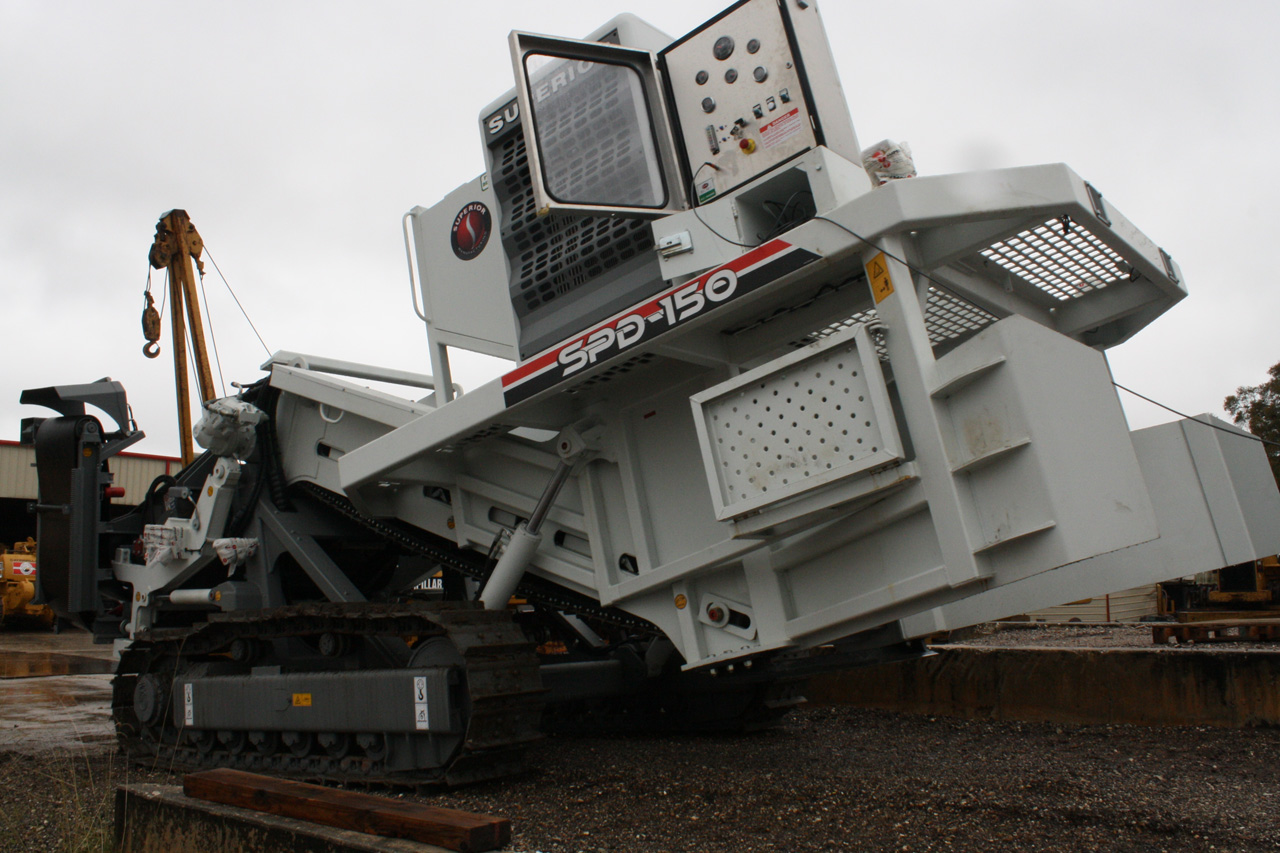

Adjustable Front/Rear Sections


Just like in the larger models, the escalator and screens section can be adjusted hydraulically to compensate for different terrain gradients.

< Click image to enlarge

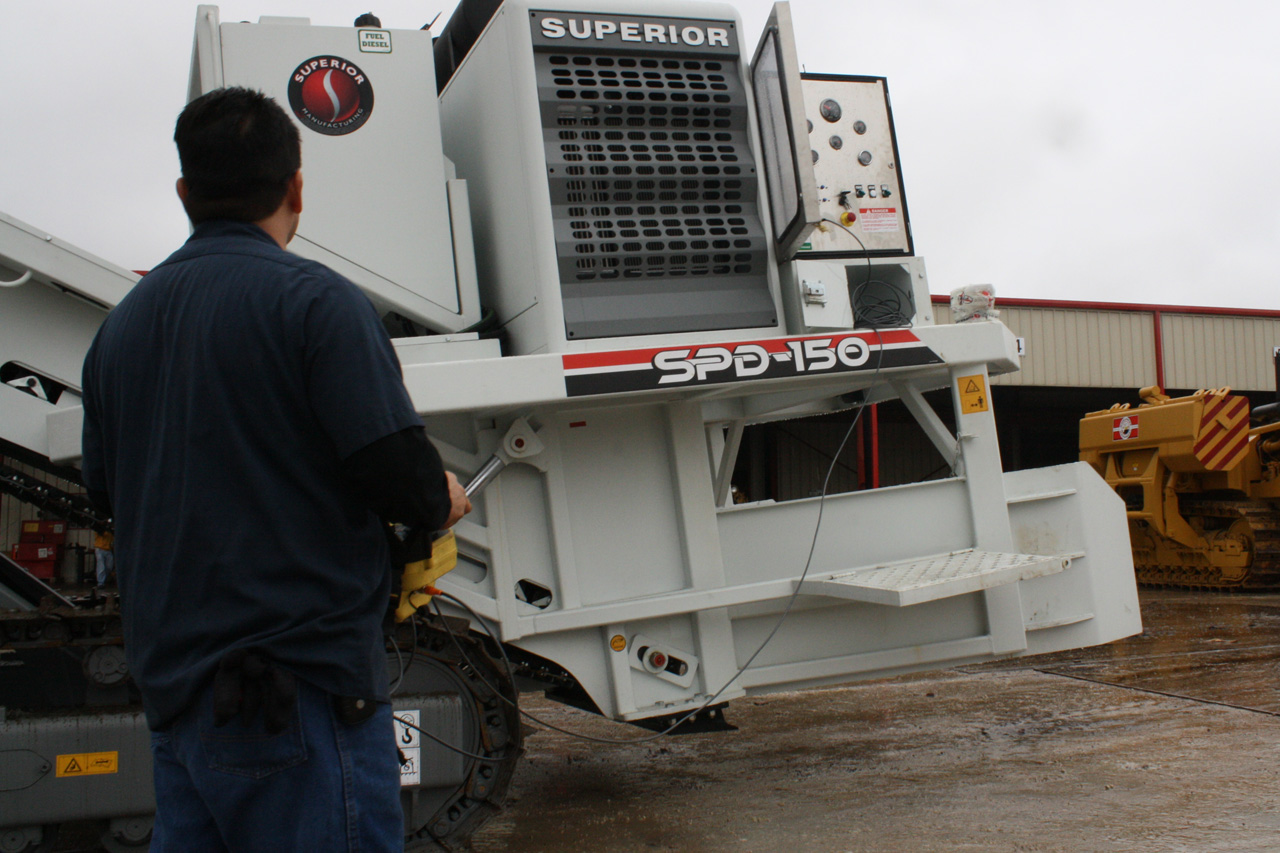

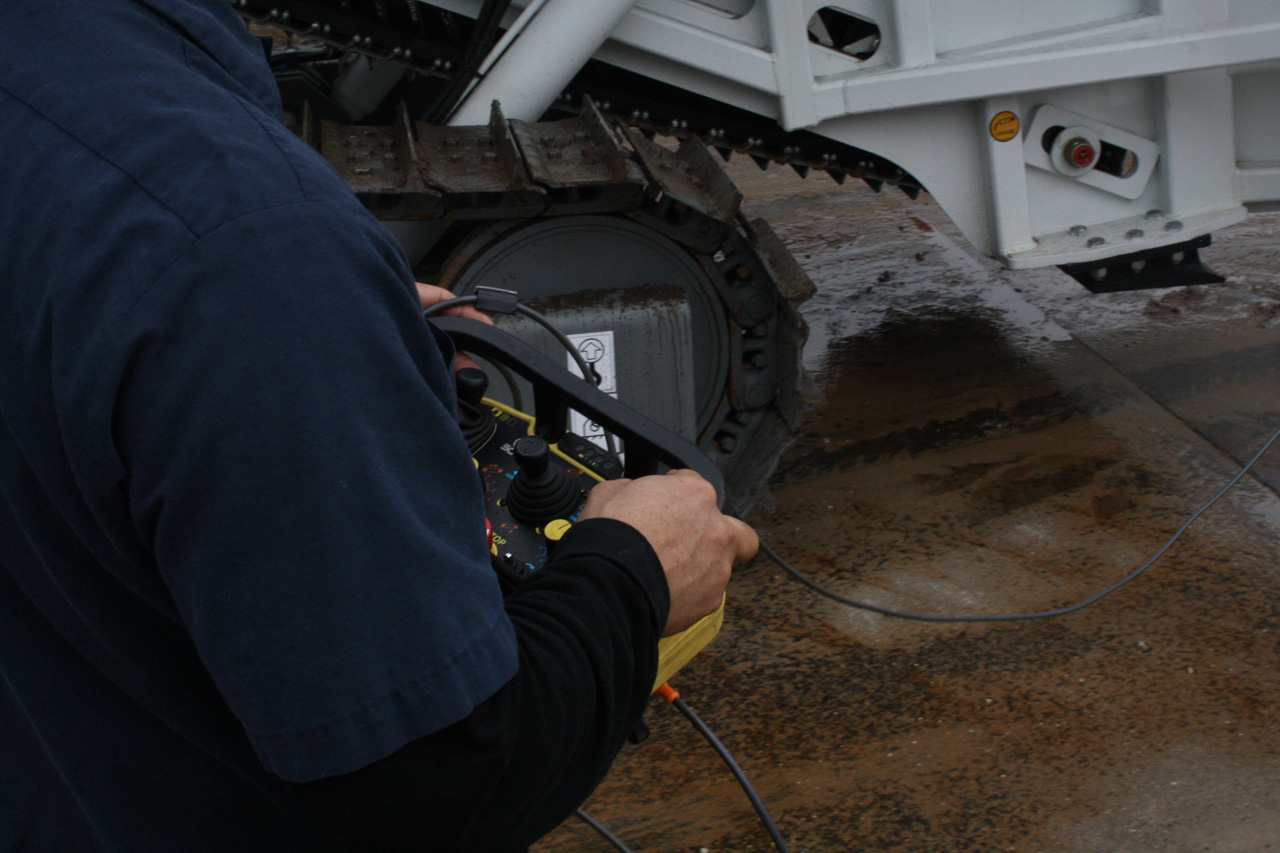

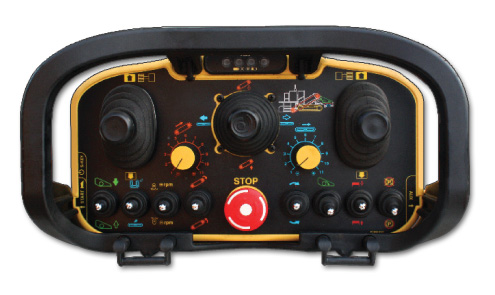

Remote Controller


The machine is operated with an ergonomic remote controller. Each movement is controlled by 10 levers. Tracks levers can maintain their position. The controller features an emergency button and engine RPM regulations.

< Click image to enlarge

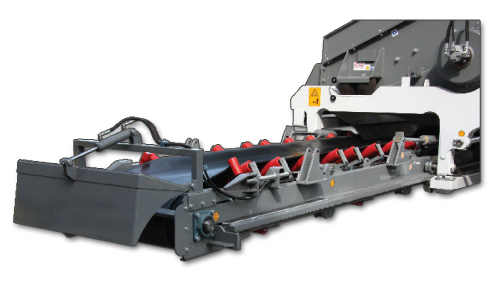

Reversible Conveyor


Conveyor can be used on either side of machine. It also can be folded into 3 parts for easy shipping w/o disassembly.

< Click image to enlarge

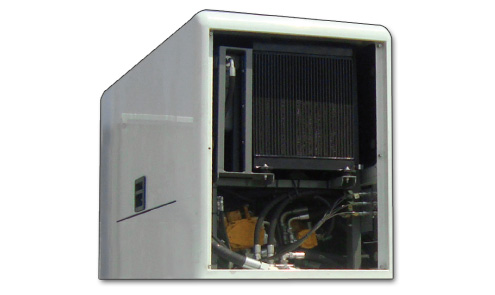

Insulated Engine


The engine compartment is insulated to reduce noise in order to comply with EU noise limit requirements.

< Click image to enlarge
