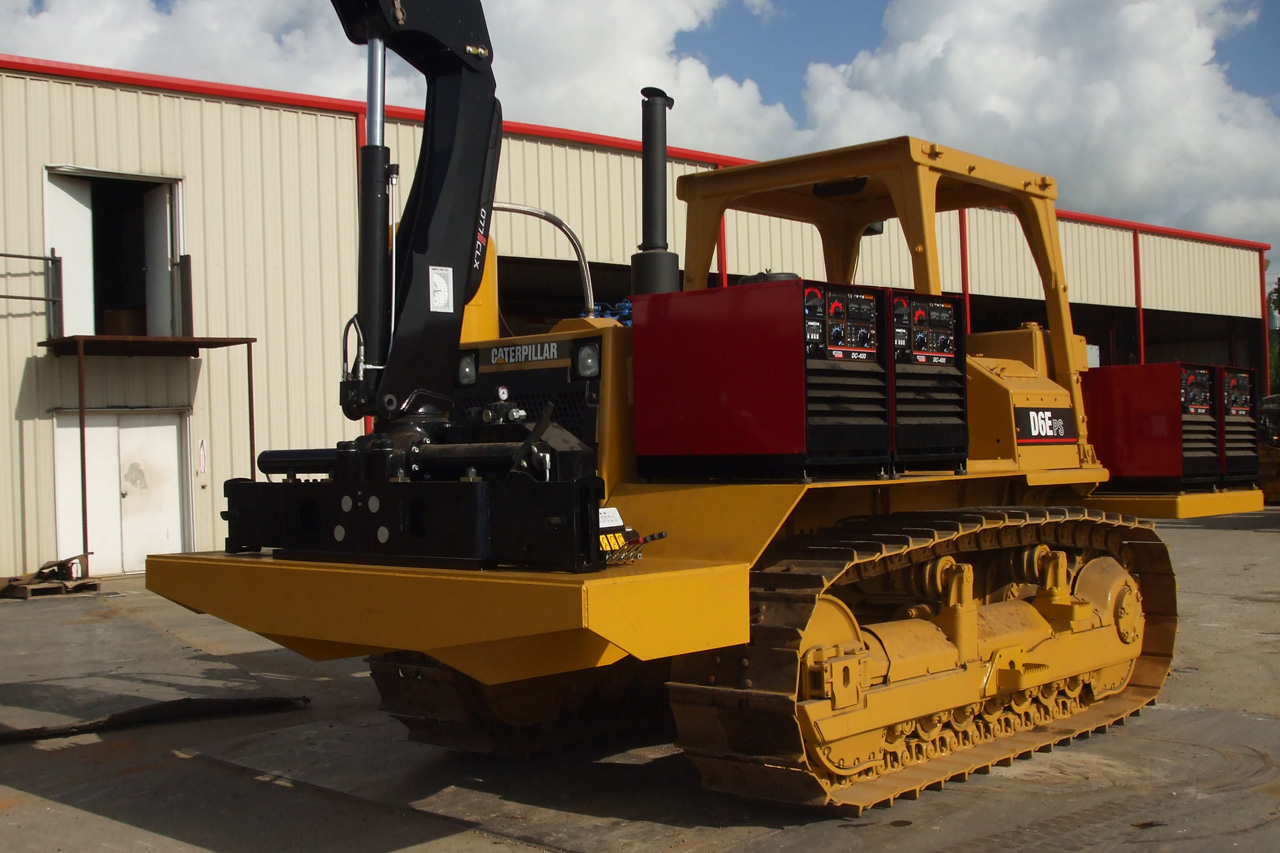

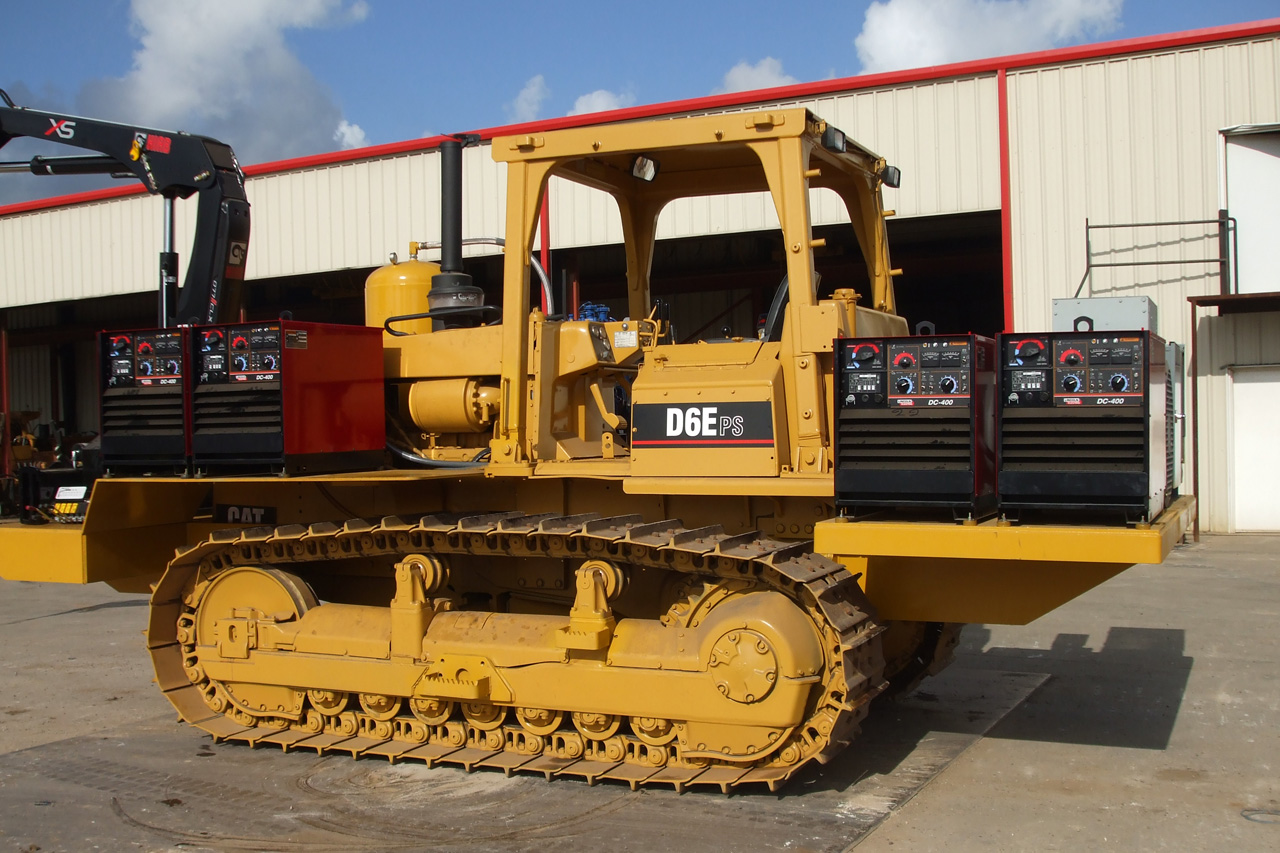

Overview


The SPW-D6D/E are based on either a Caterpillar D6D or a D6E. They are also available in any other D6 model variation and we offer an exceptional level of customization. From the knuckle boom, welding units, bottles, generators, etc., we can tailor-make them based on our customers’ specific needs.

  • Specifications


Type
CATERPILLAR 3306 TA
Governed speed
2,000 rpm
Net flywheel power (DIN 6270)
155 HP
Type
Power shift
Brakes
Oil cooled
1st gear
2.5 mph - 4 km/h
2nd gear
4.3 mph - 6.9 km/h
3rd gear
6.1 mph - 9.8 km/h
Type
Independent
Control
Power-shift
Type
Marathon generator (double bearing) 125 KW
Arrangement
Belt driven; off of PTO
Alternate arrangement
Hydraulically driven generator
Voltage
110/220 variable outlets for grinding or power source
Options
Can be adapted to 50/60 hertz
Type
Quincy 350
Cubic feet per minute
28 CFM
Operating range
250 p.s.i.
Tank capacity
120 gal
Options
Can be electrical or hydraulic driven
Type welders (4)
Lincoln 400 Amp
Type alternator
Marathon 125 Kw
Electrical outlets
220 and 110 Volt
Air compressor
Quincy 350/390
Displacement
27 CFM
Air tank
120 gallons
Powered by
10-20 HP electric motor
Type
Hiab, Maxi-lift, Ferrari or custom fabricated
Maximum lifting capacity
5,000 lbs - 7,000 lbs
Optional
Type: Hiab 077; max. lifting capacity: 5,952 lb - 2,700 kg (@ 2.3 m - 90.5 in); also available: Manual Jib Boom
Operator controls
All are hydraulically controlled from cab
Operating voltage
24V
Maintenance free supplied batteries
2
Capacity
160 Ah
Alternator
55 A
Starter
7.5 Kw
Fuel tank
303 liters - 80 U.S. gal

  • Main Features

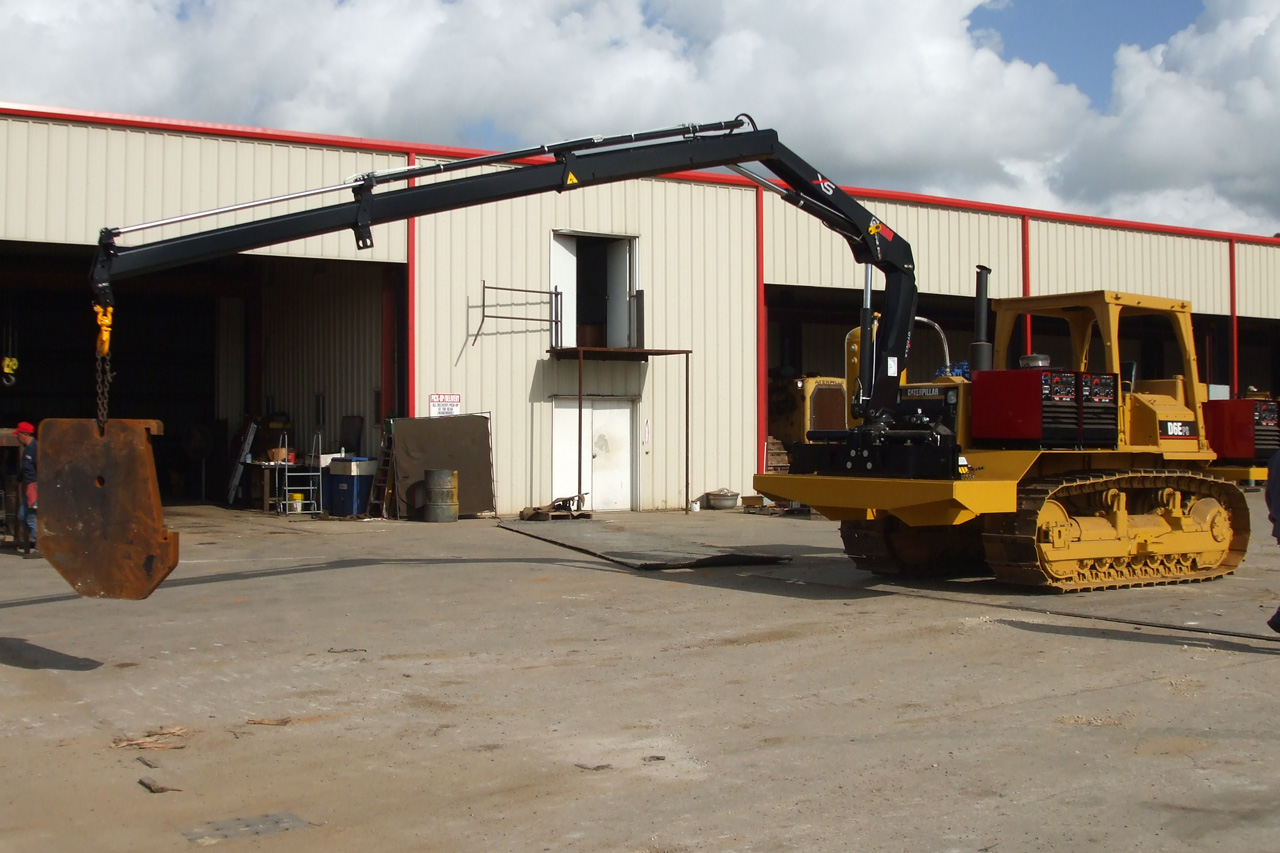

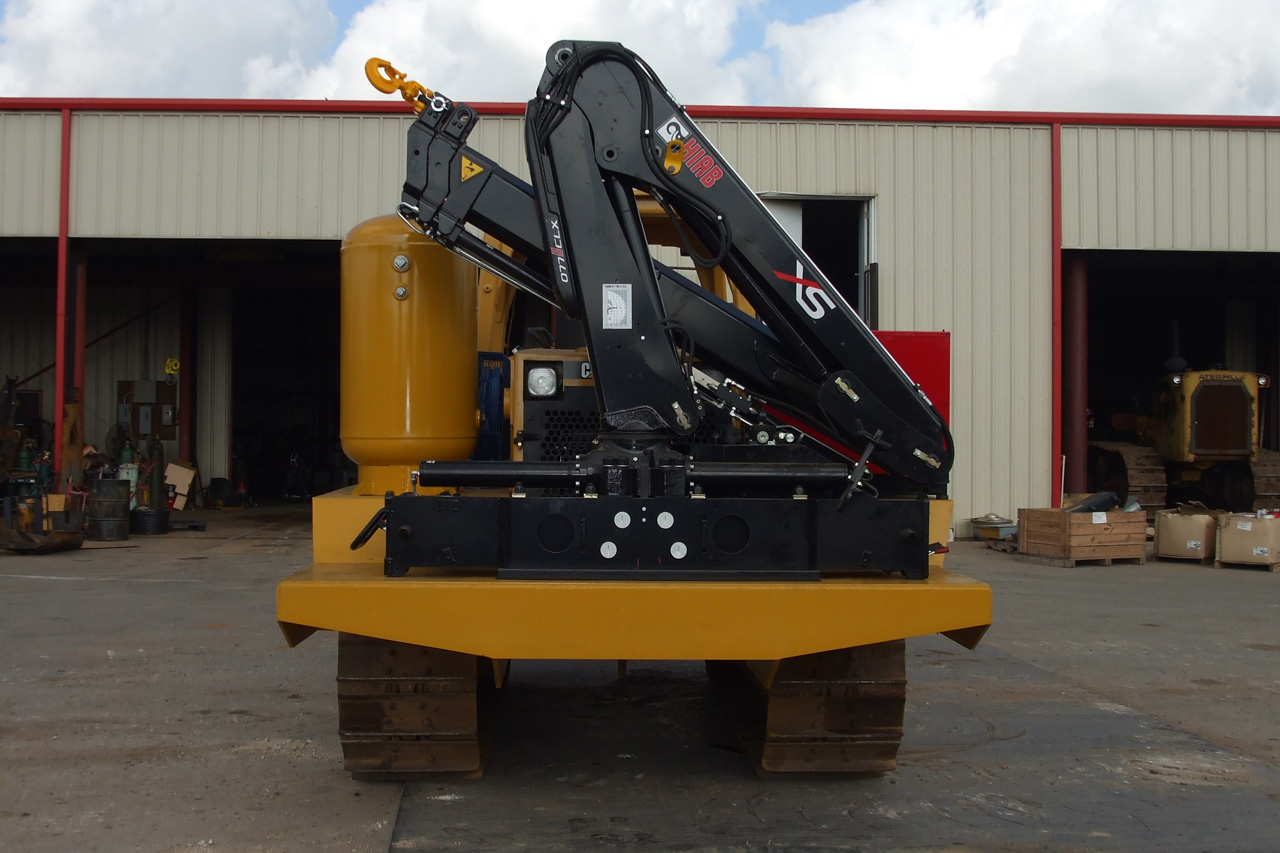

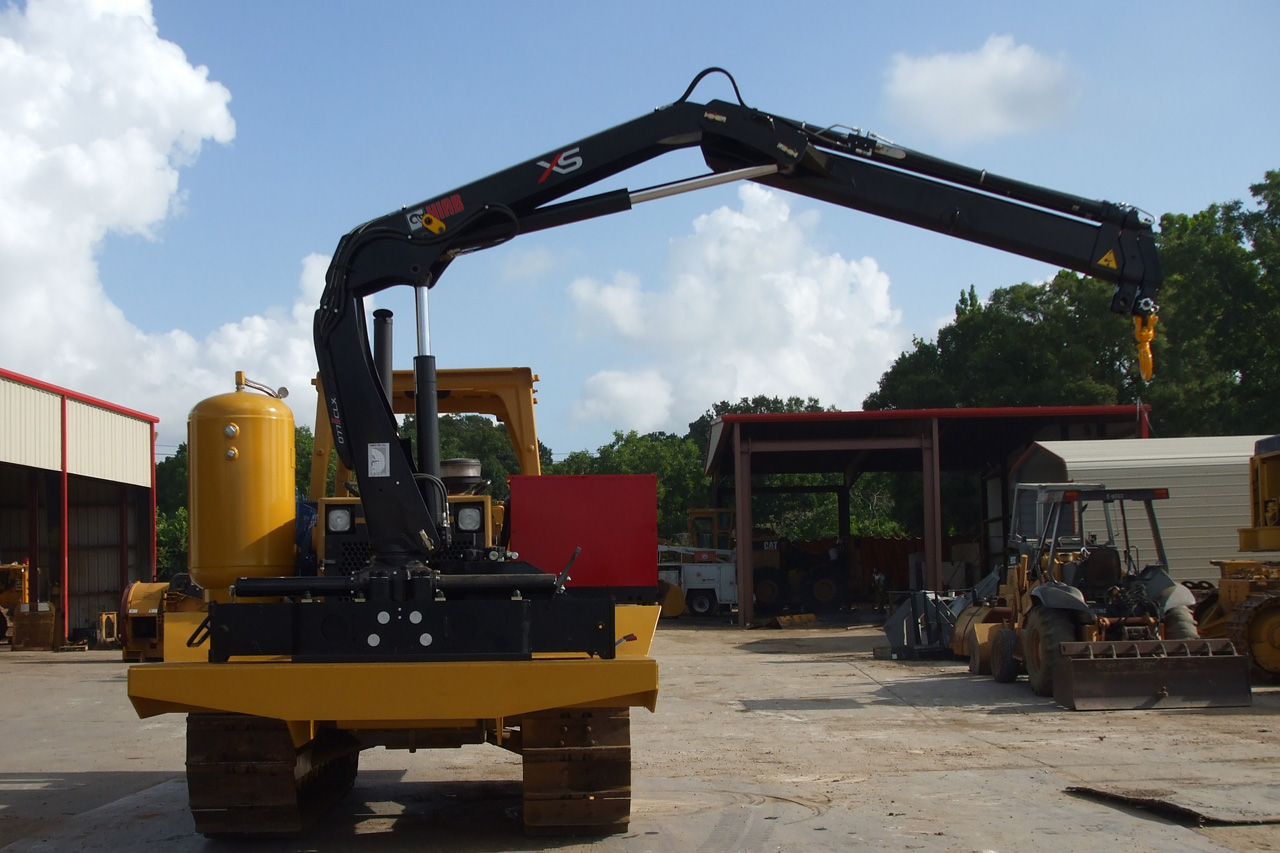

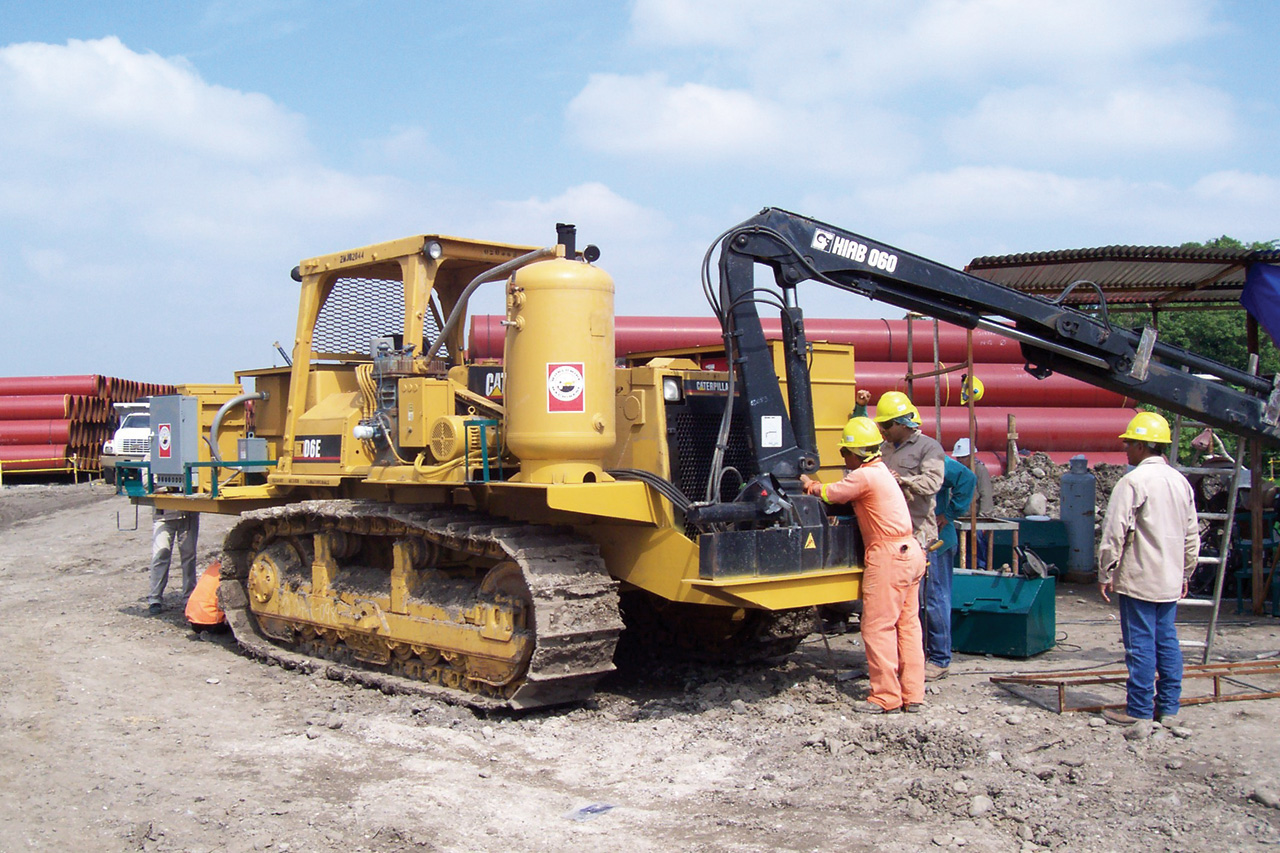

Knuckle Boom


The SPW-D6 series can be outfitted with several brands of hydraulic booms: Hiab, Maxilift or Bonfiglioli.

< Click image to enlarge

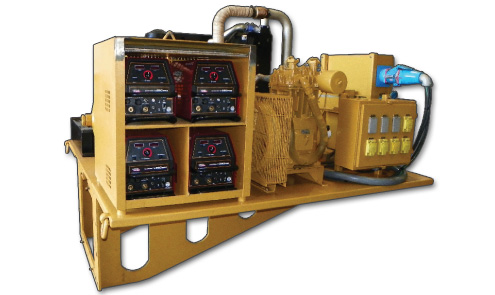

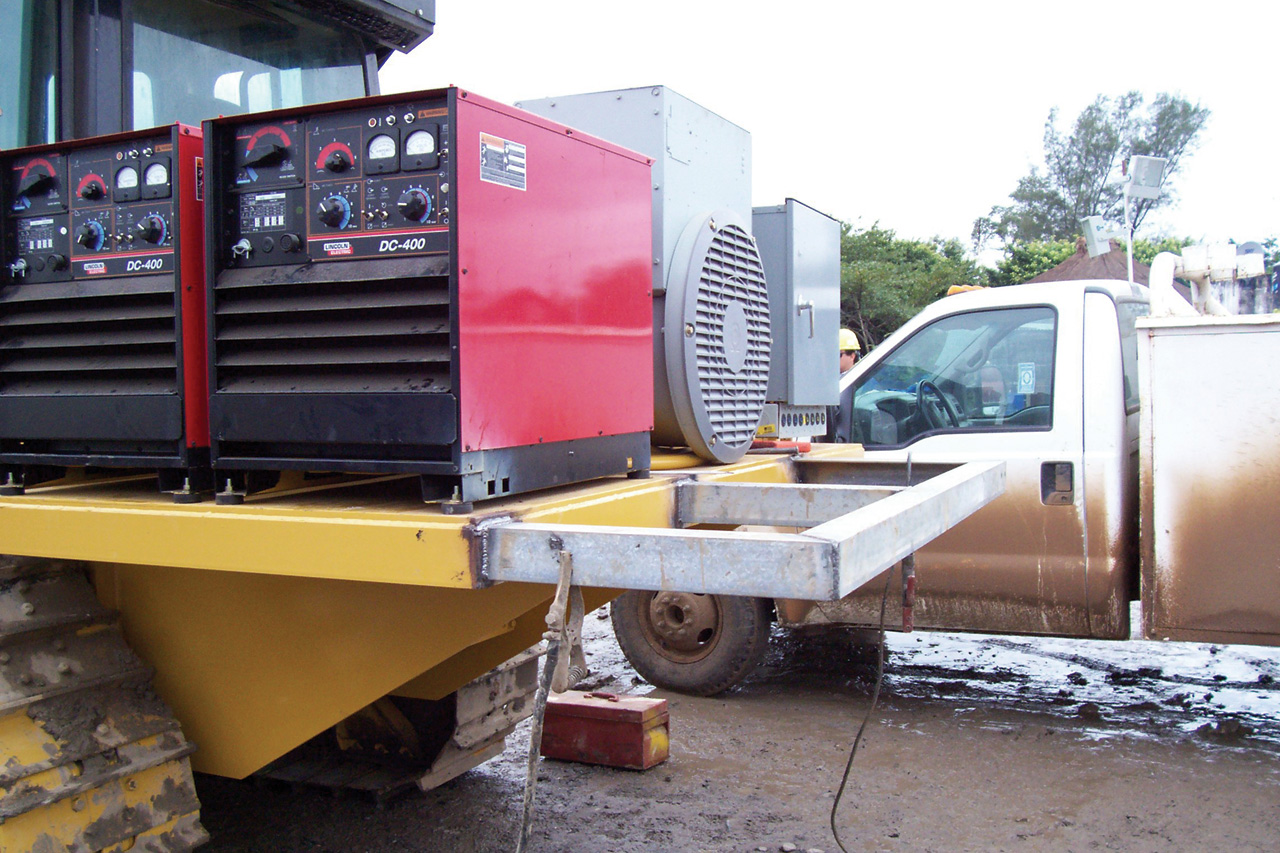

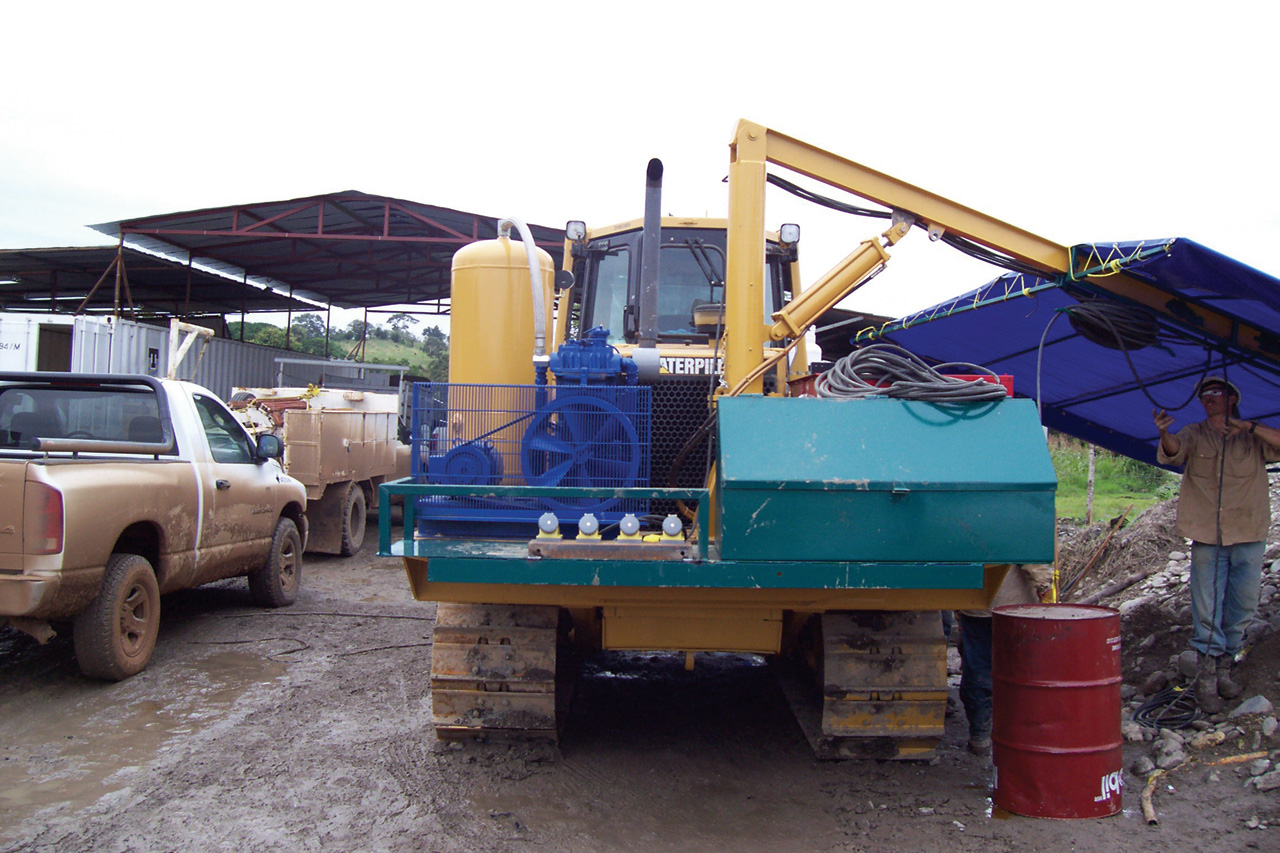

Platform


The specially made platform is self-contained -no need to connect to the PTO- and can be mounted to a different tractor with just a bracket adaptor.

< Click image to enlarge

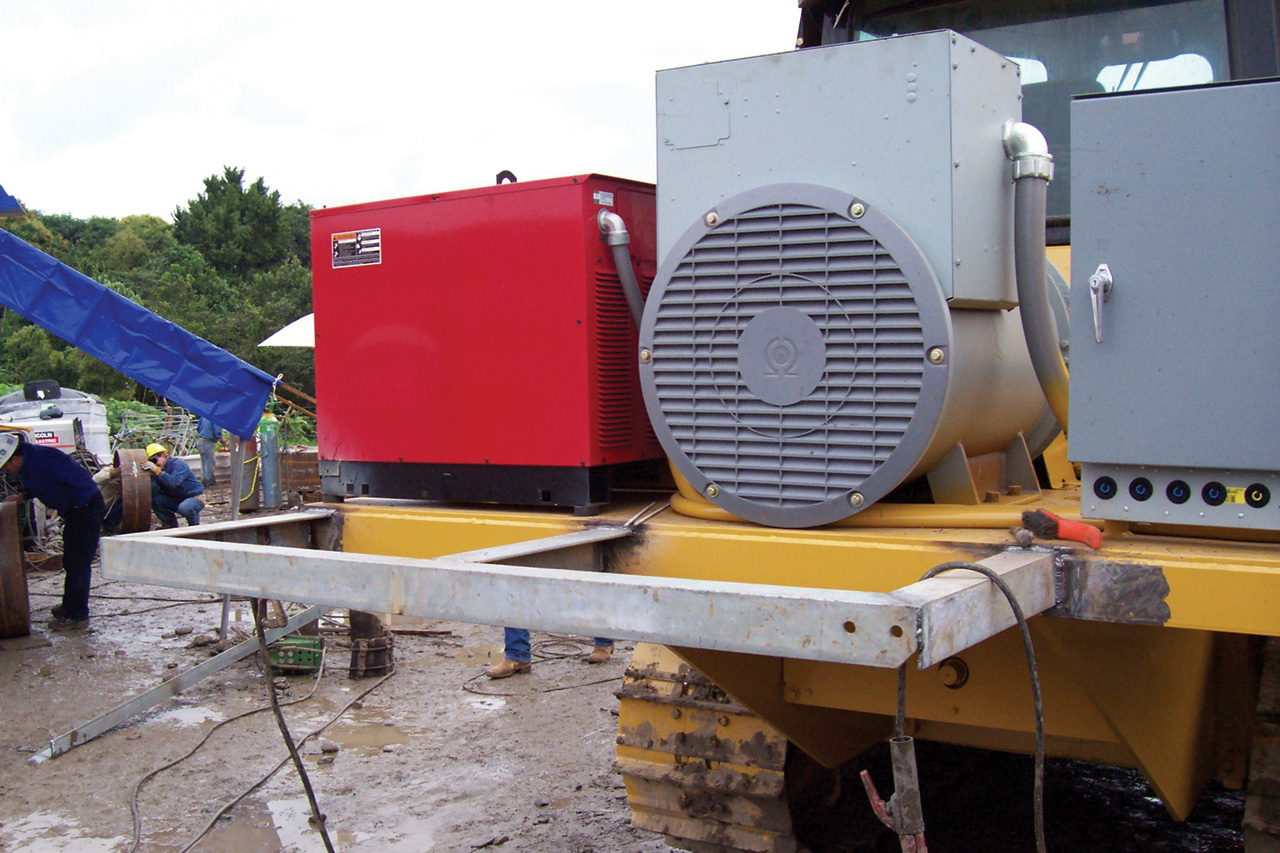

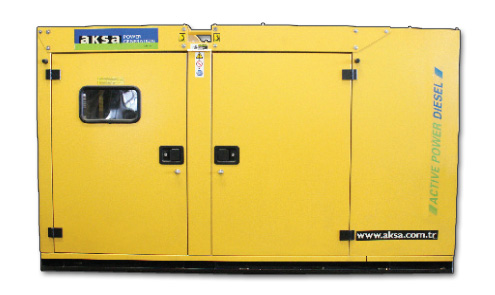

Generator


WThe main component of the platform is the generator. This allows it to be self-contained and provides power to all the components.

< Click image to enlarge

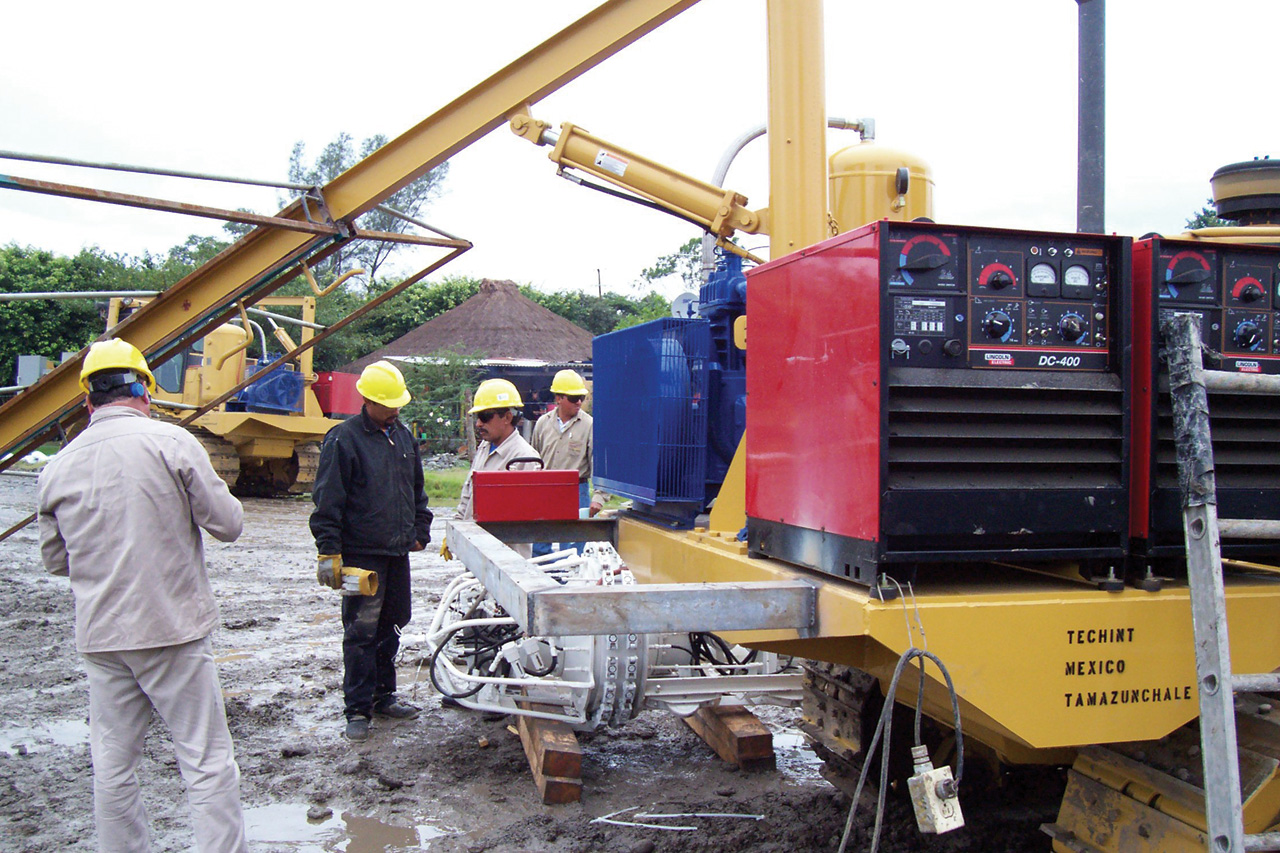

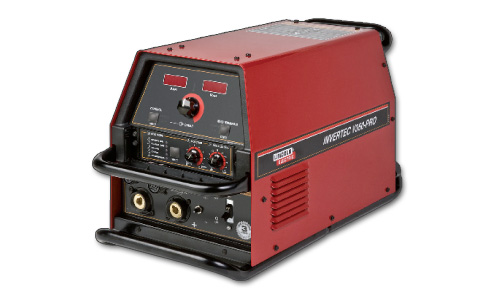

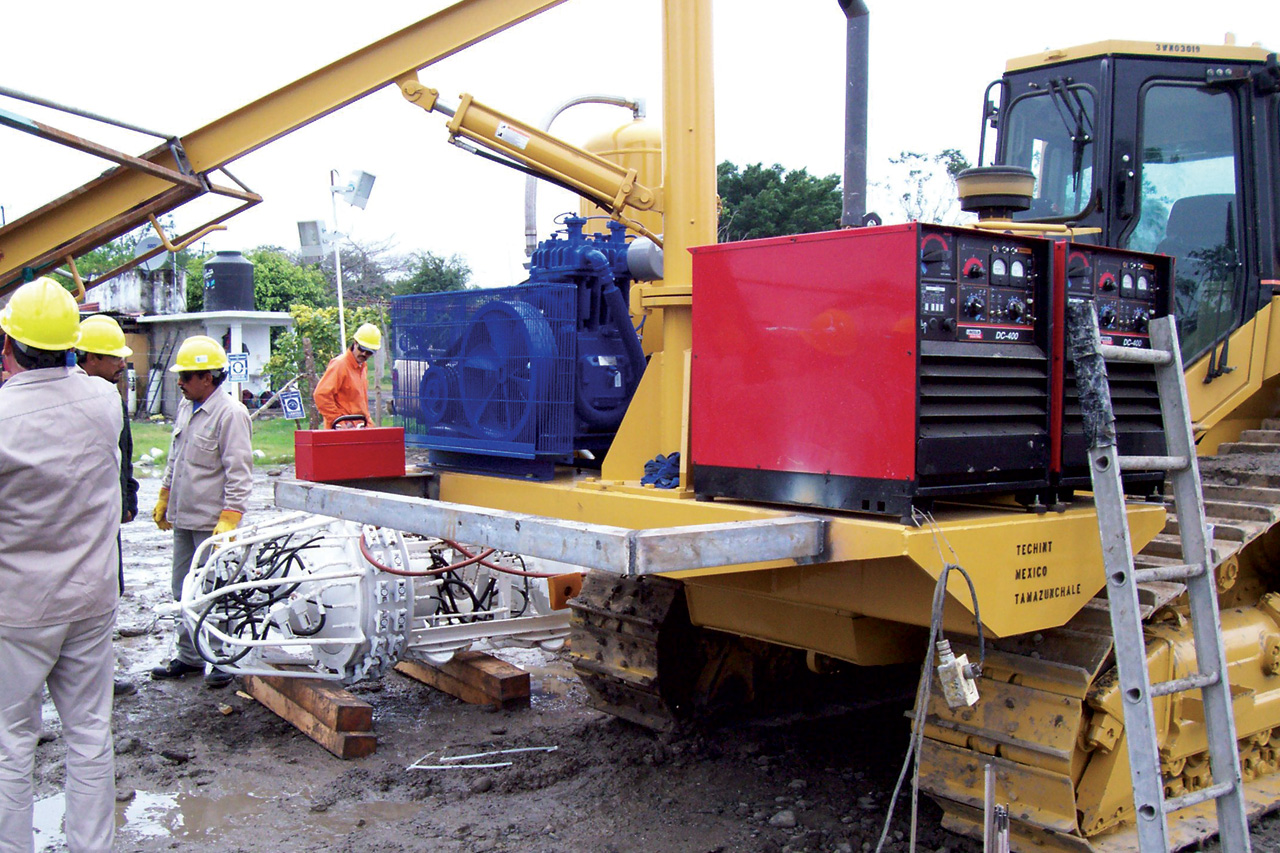

Welding Boxes


By default, the SPW welder tractors are fitted with up to four Lincoln Invertec V350-Pro units.

< Click image to enlarge

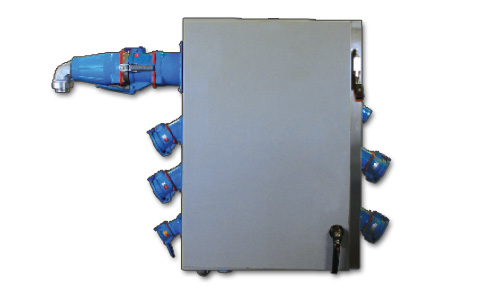

Power Plugs


A 110V/220V power plug box is part of the package.

< Click image to enlarge

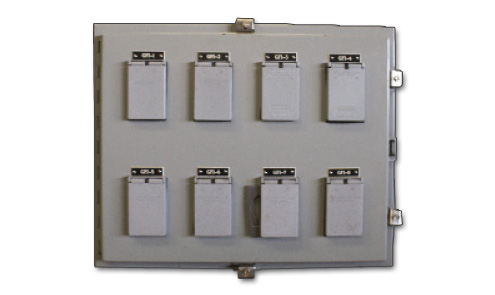

Breaker Box


Due to the several electrical components, a breaker box is also provided as part of the SPW platform.

< Click image to enlarge

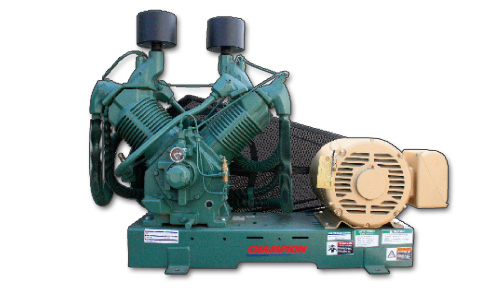

Air Compressor


An air compressor completes the SPW-Series self-contained platform system.

< Click image to enlarge
