Overview

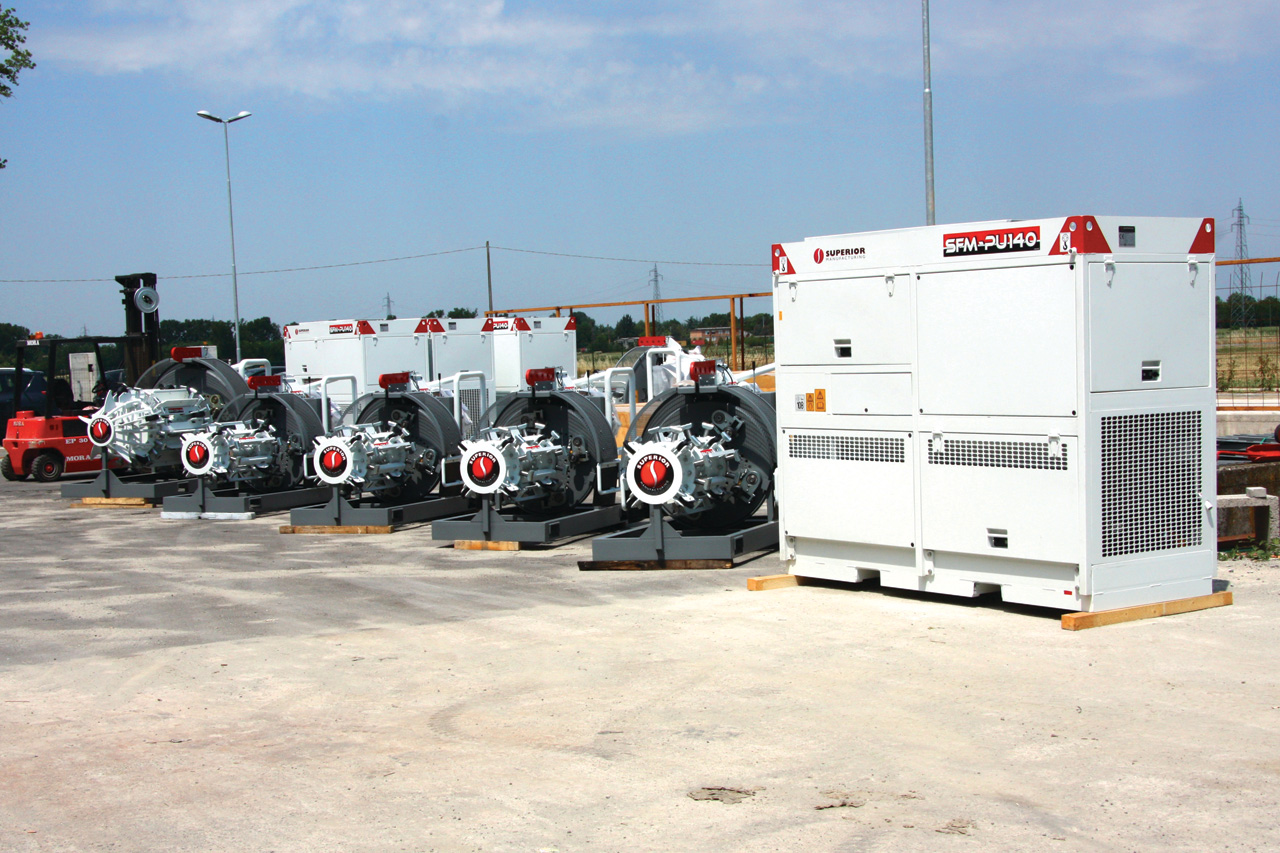

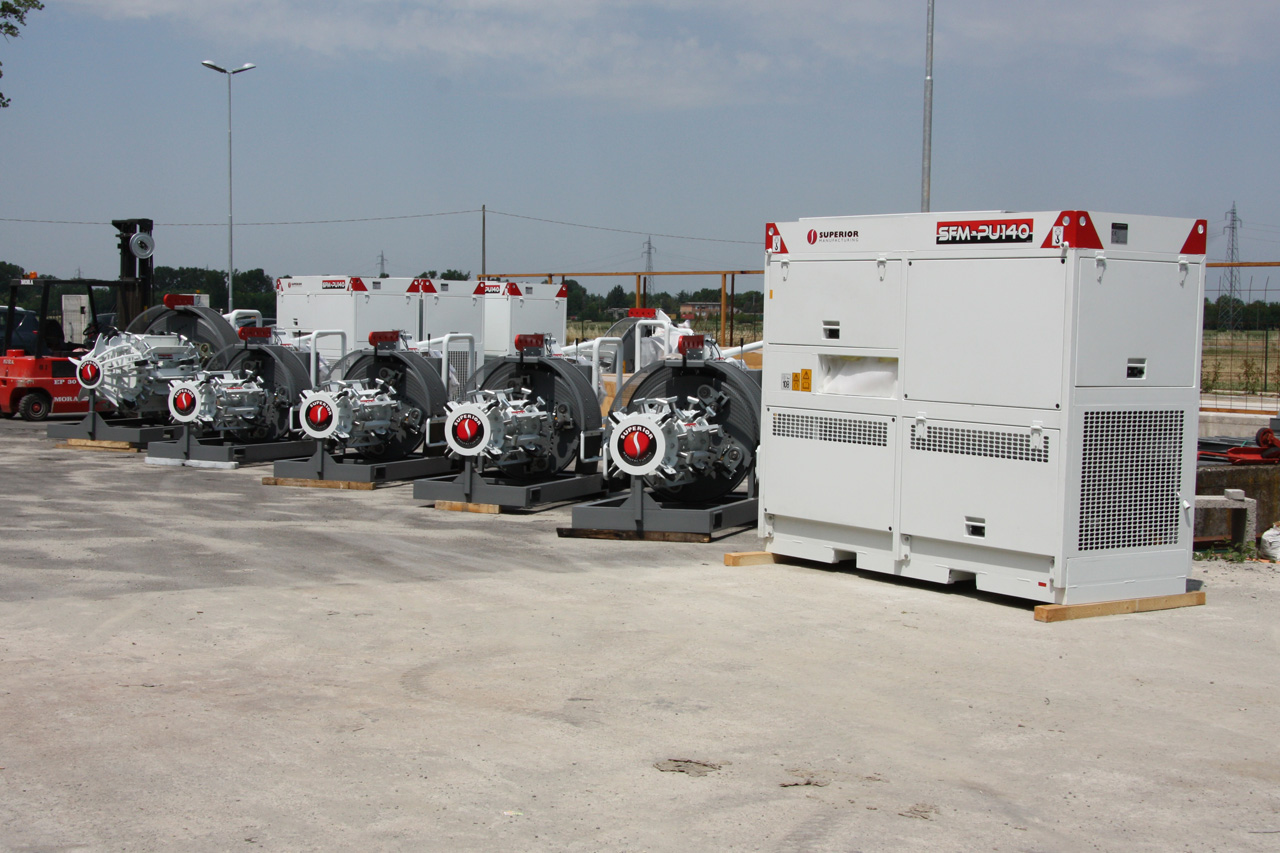

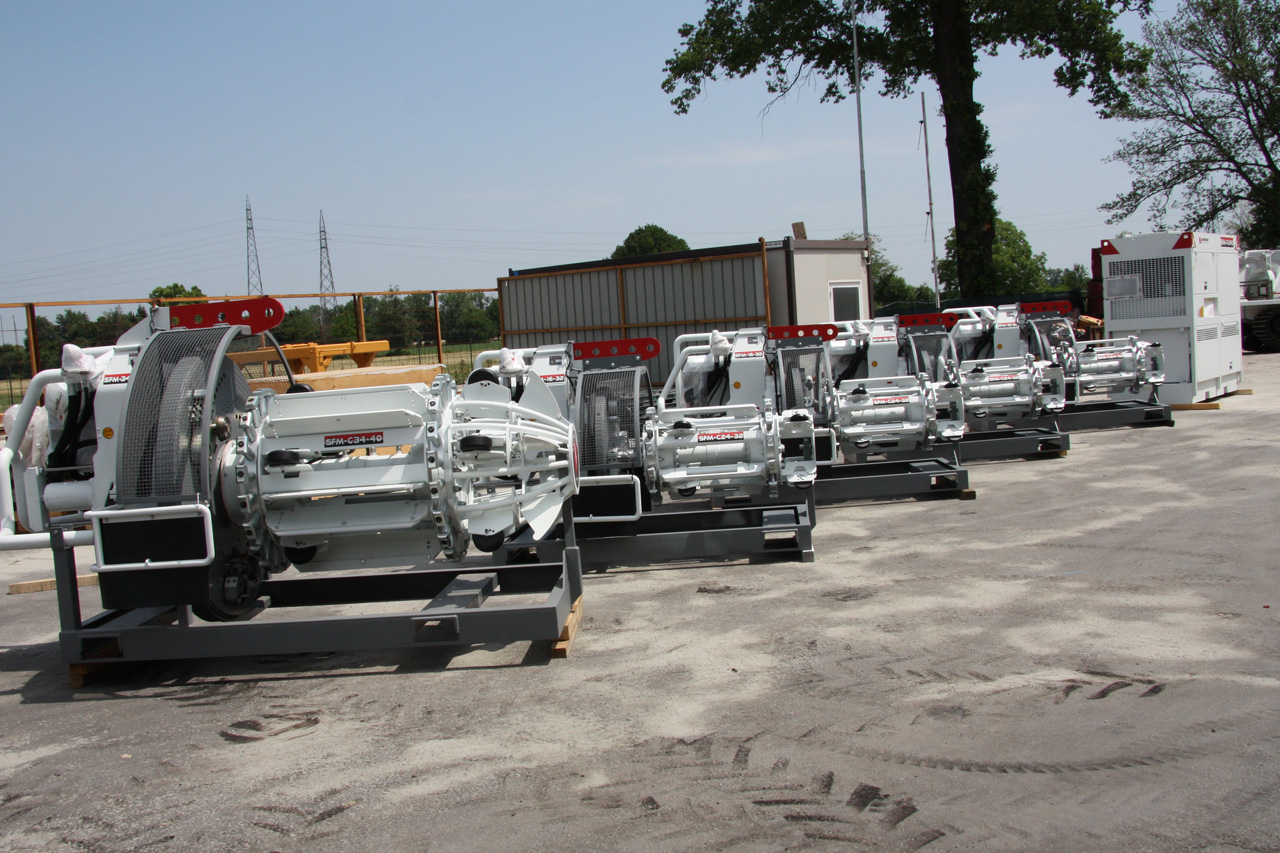

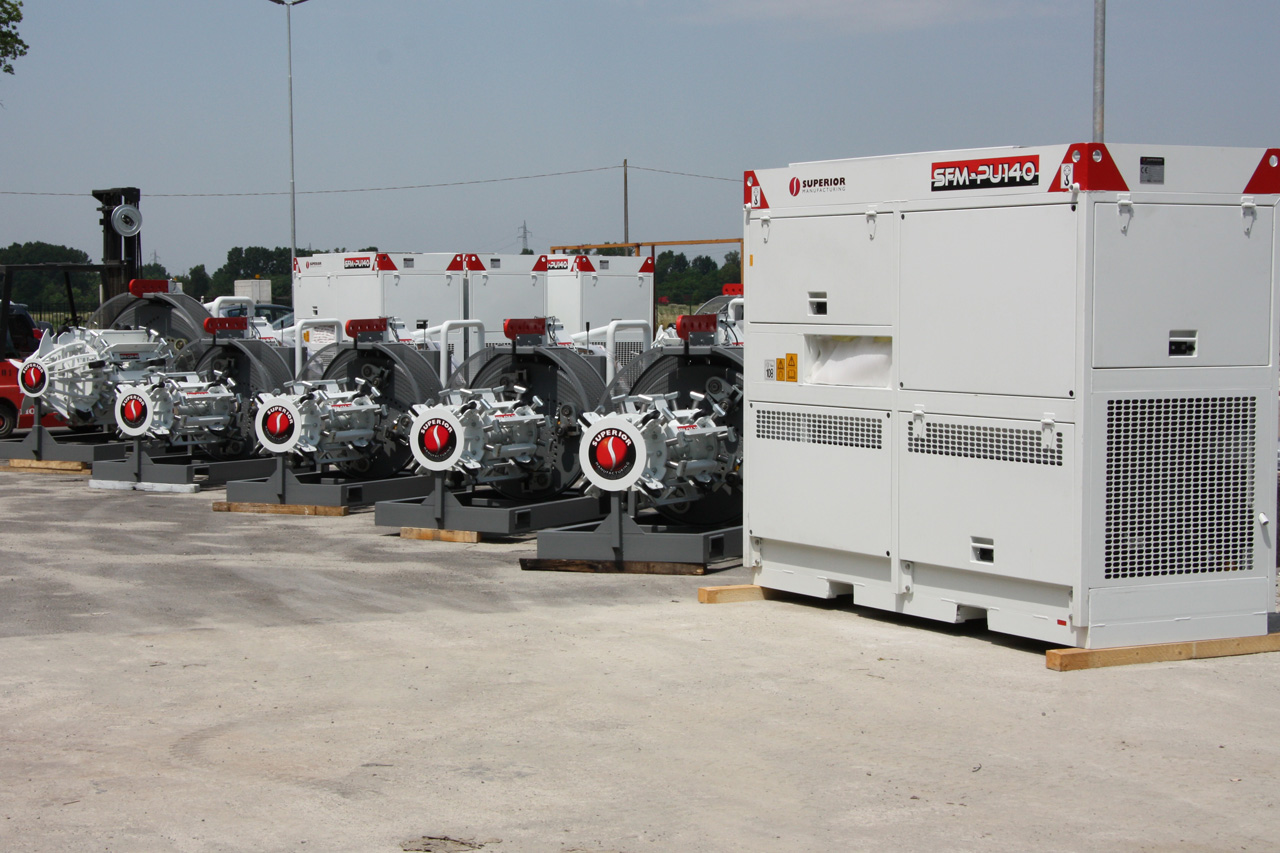

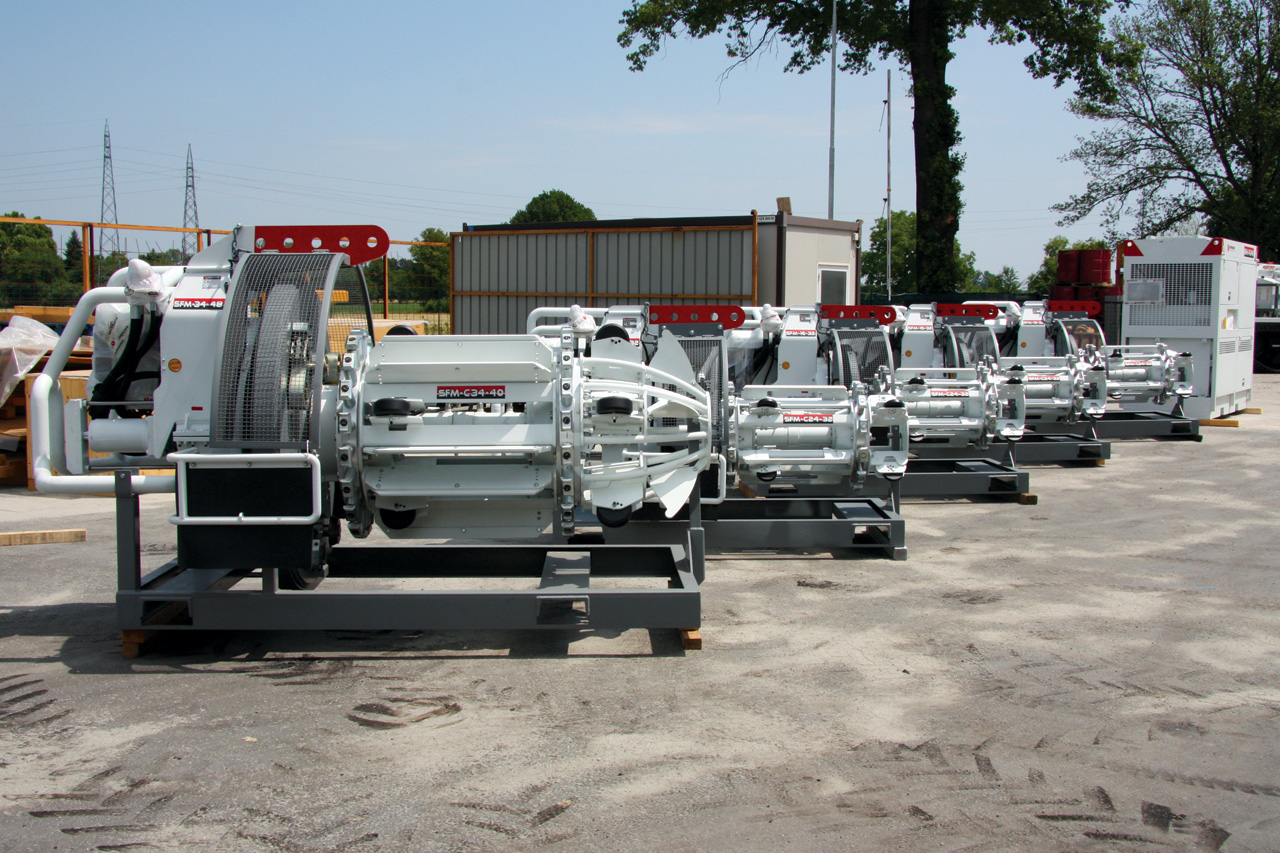

The SFM 16-32 pipe facing machines consists of three basic elements: the base unit, the clamp (one large and one small) that fits into it and the generator that powers it up. The SFM 16-32's small clamp can fit a pipe range from 16 to 22 inches while the large clamp fits 24 to 32 inch pipe.

• Size Chart



• Main Features

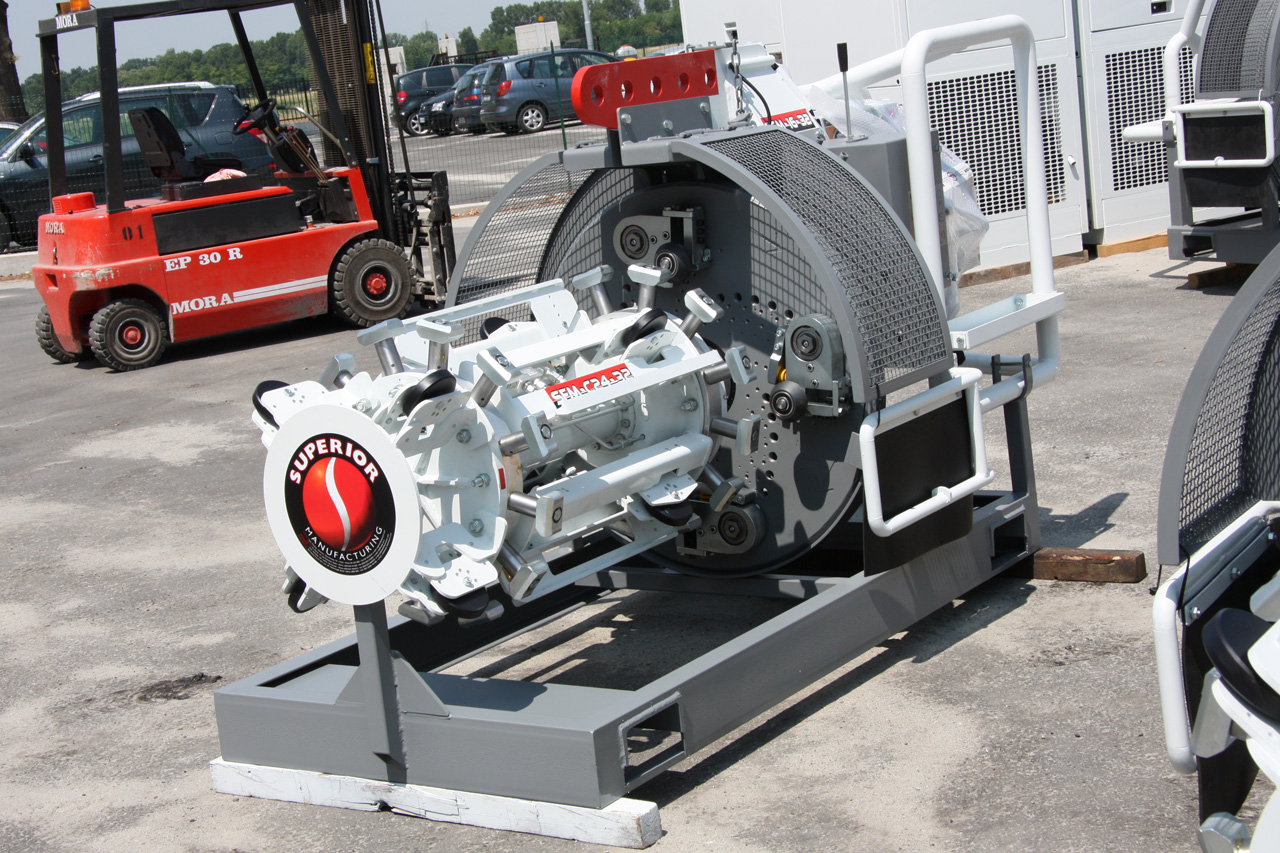

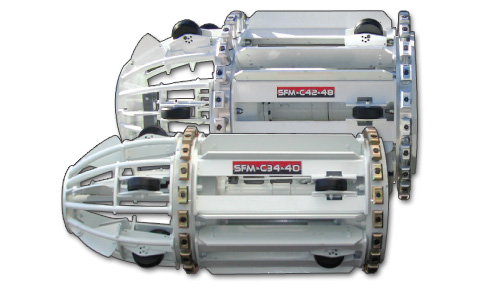

	Clamp Assembly There are two clamp sizes available for each pipe facing machine model: a large clamp and a small one. Each clamp can handle a wide range of pipe sizes. The SFM pipe facing machines come with either a large or a small clamp assembly. < Click image to enlarge

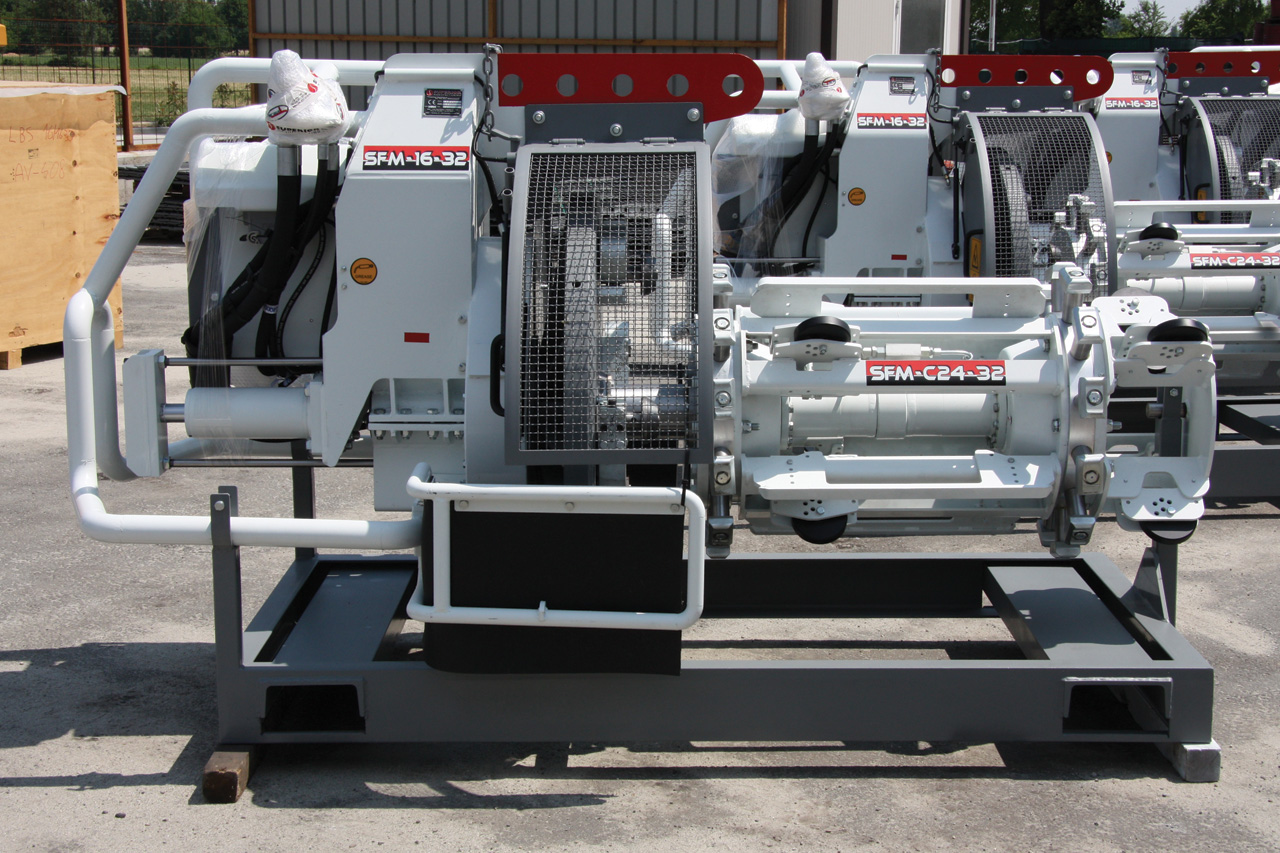

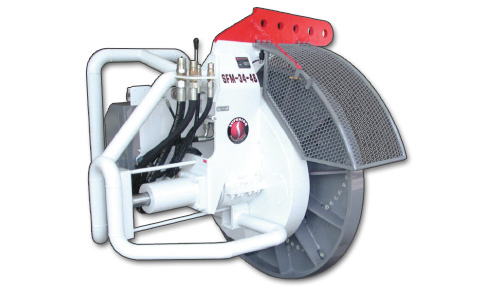

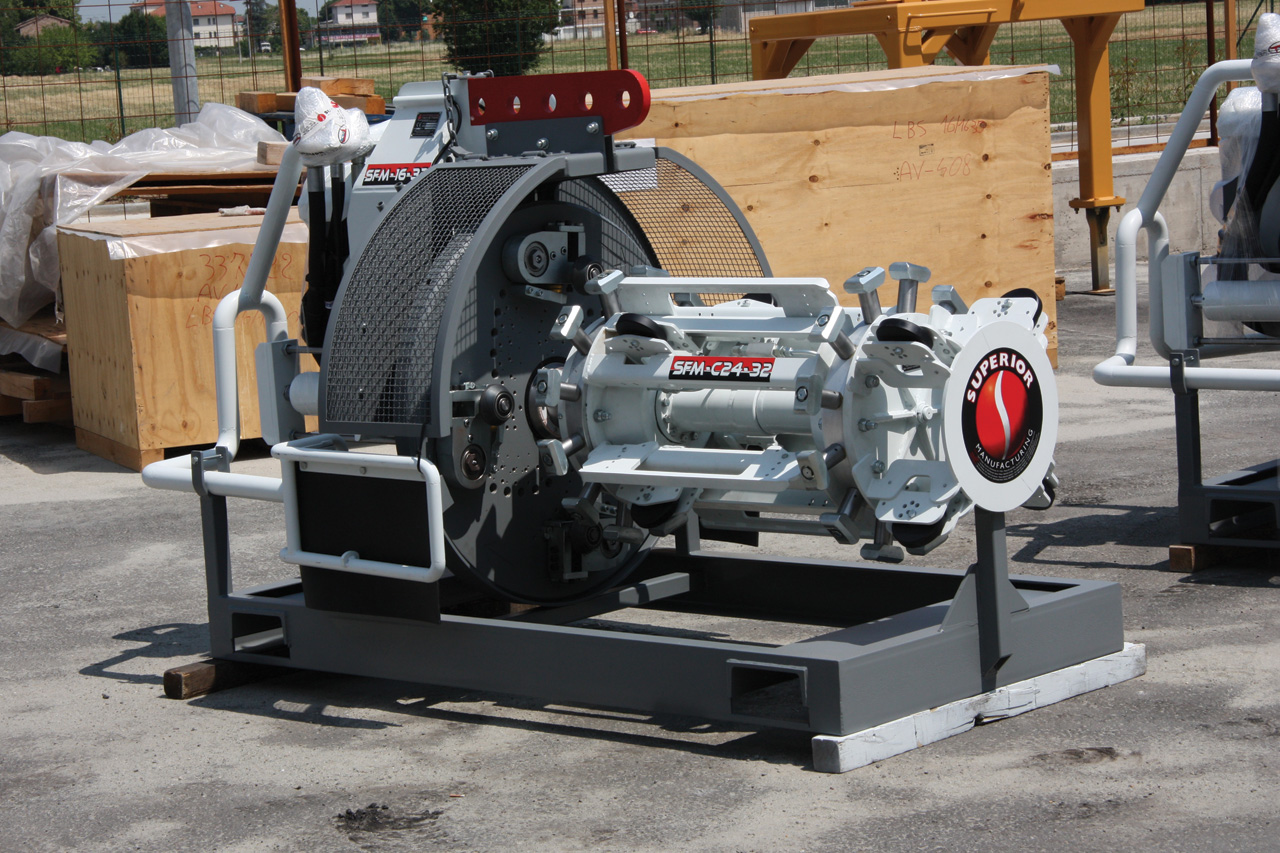

	Main Frame The main frame features a strong metal construction to withstand high pressure. Quick connectors are located at the top of the machine to easily hook it up to the power unit. A mesh covering on the bearing wheel serves as a safety feature. The guard frame on the back protects both the control panel and push cylinder. < Click image to enlarge

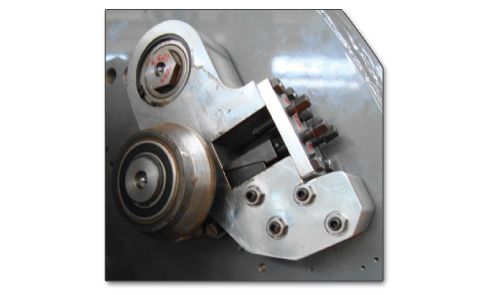

	Tooling The bearing wheel features a number of tool-holding heads. Rotation and forward motion allow these heads to bevel the pipe. < Click image to enlarge

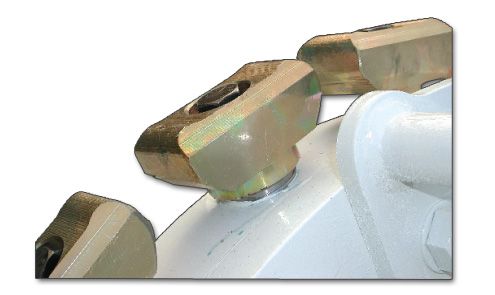

	Pistons Small pistons push into the internal wall of the pipe during clamp opening to allow for the pipe facing machine's alignment. < Click image to enlarge

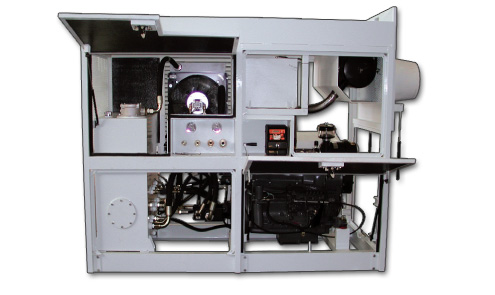

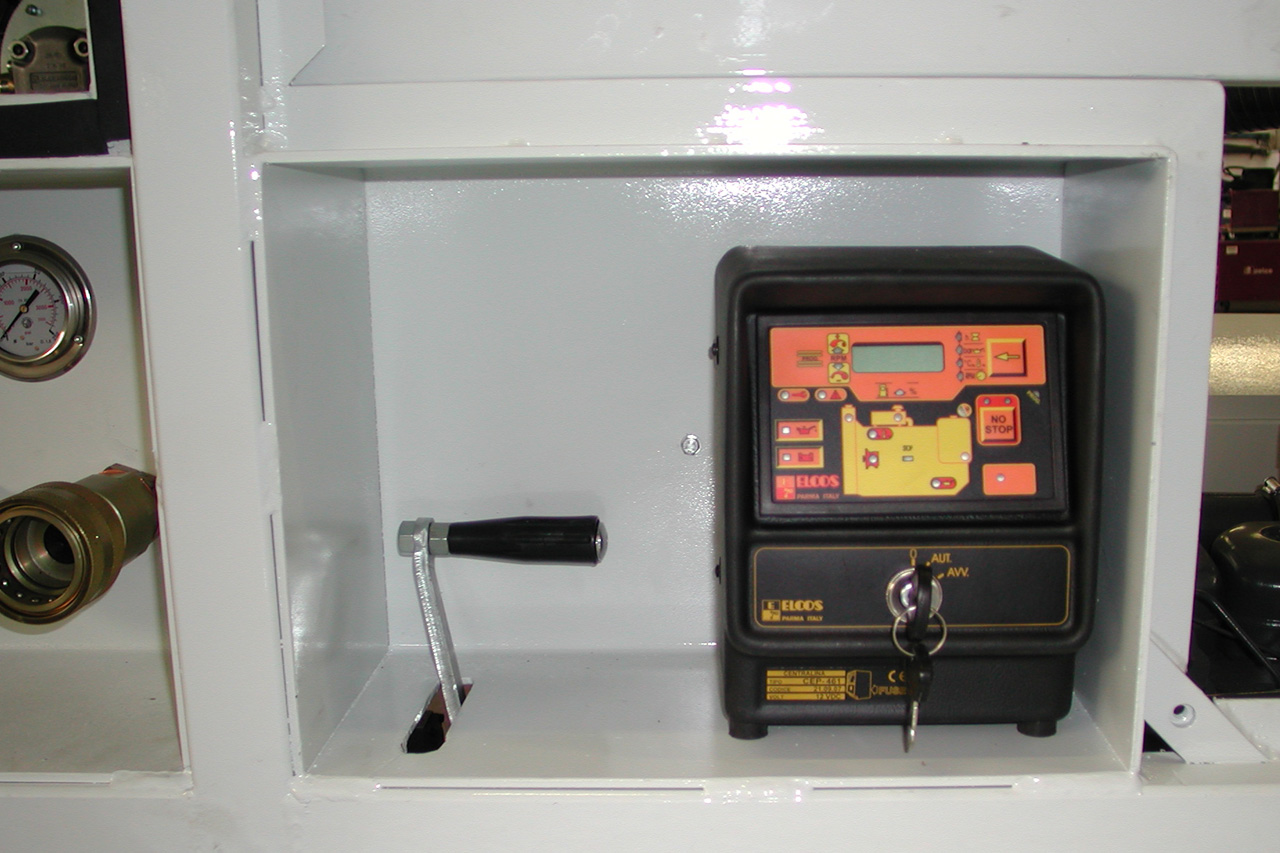

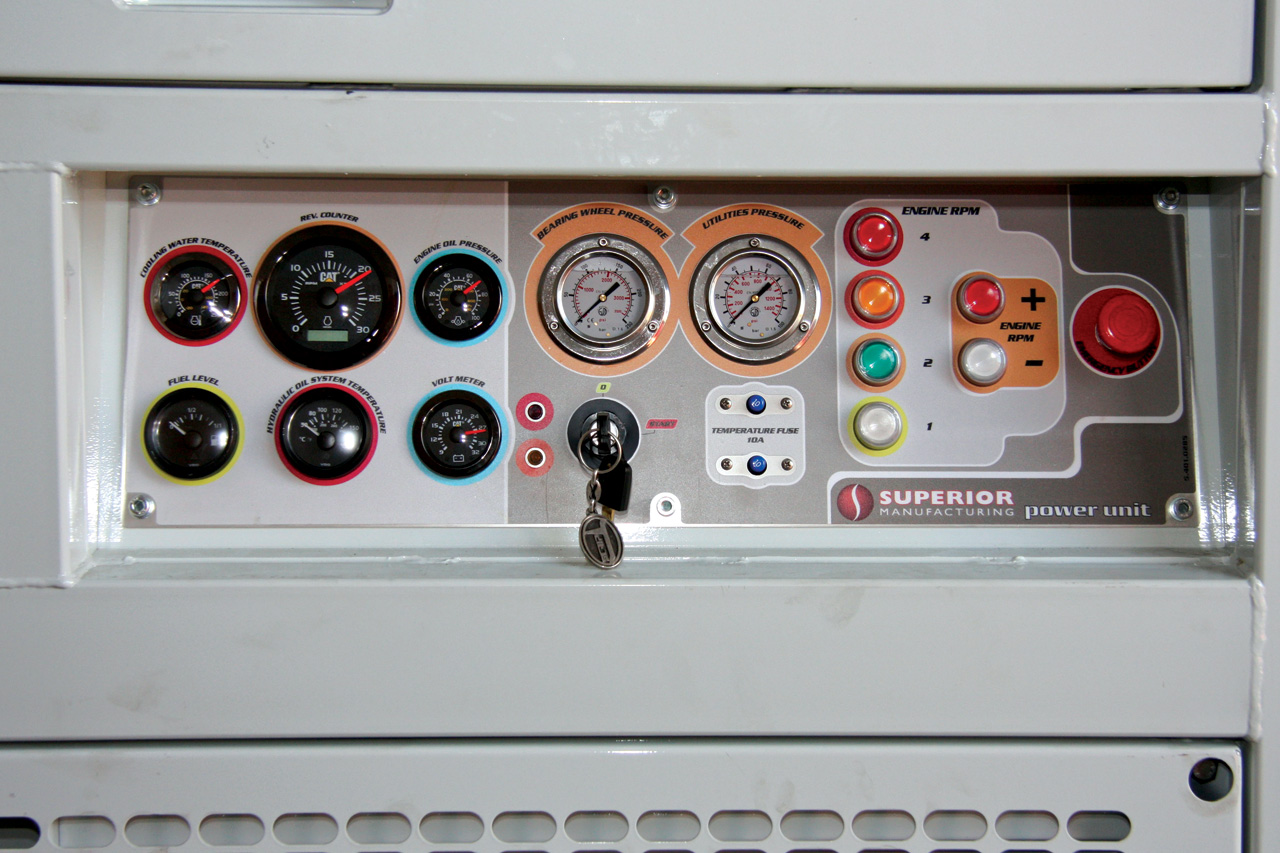

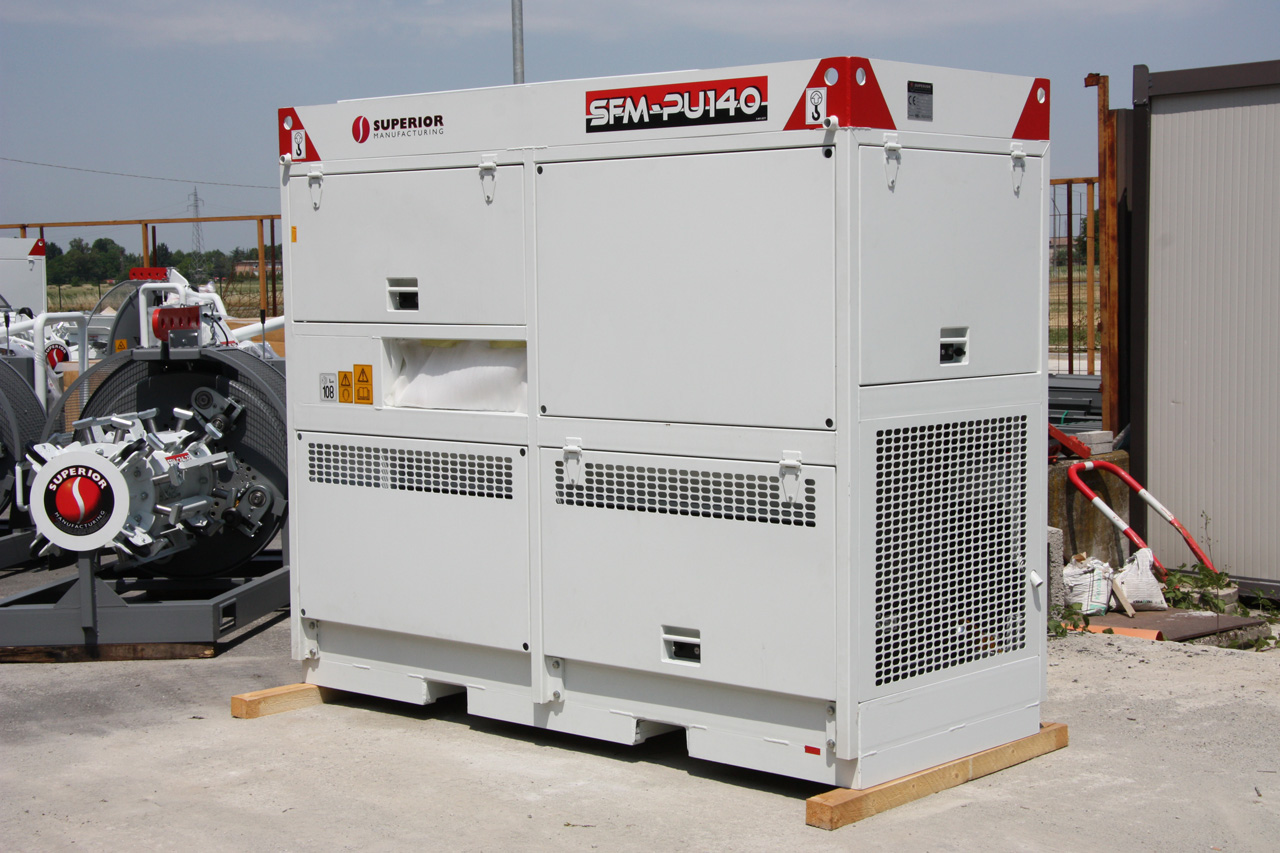

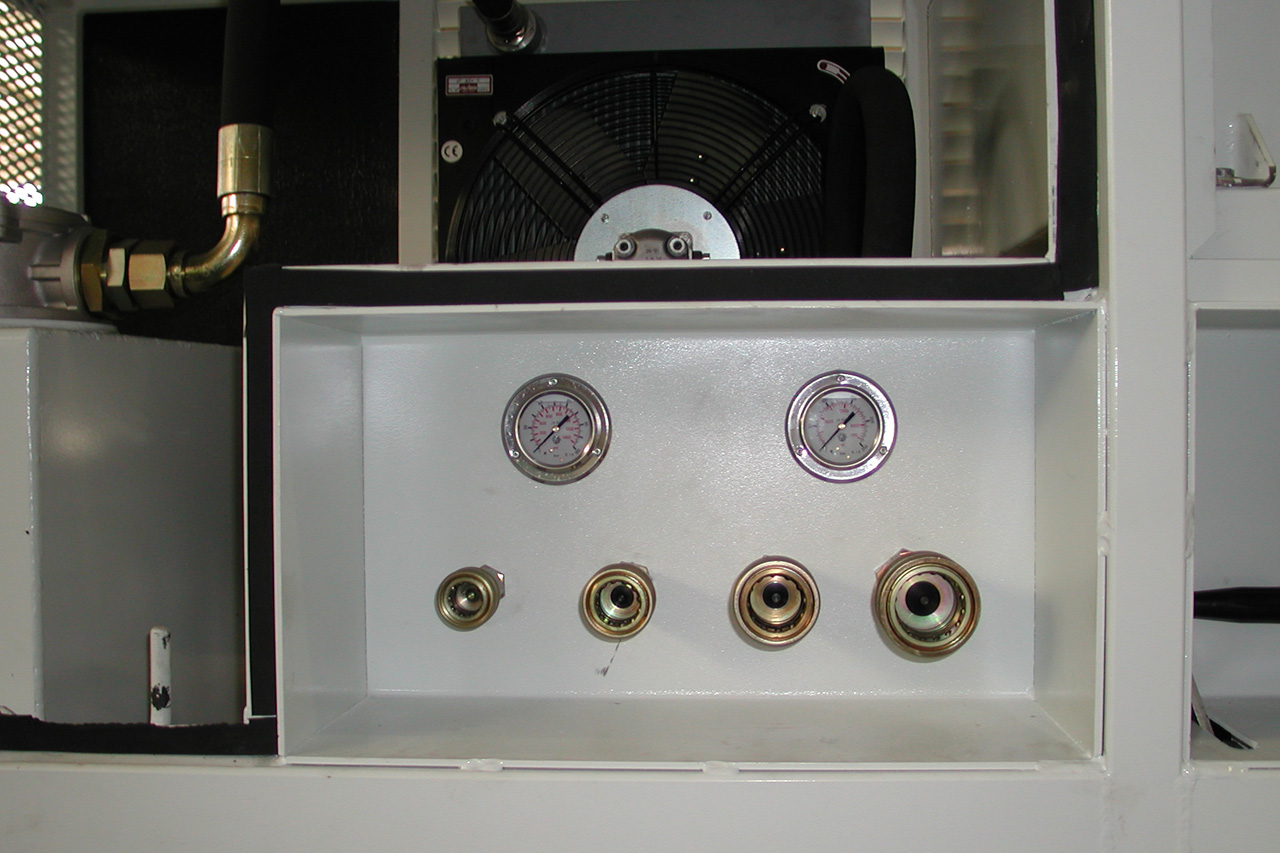

	Power Unit The power unit is a diesel-powered, independent unit which supplies the necessary hydraulic power to the pipe facing machine. The power unit's easy-to-read control panel controls the power unit. It is separate from the SFM's control panel, which controls the pipe facing machine. < Click image to enlarge

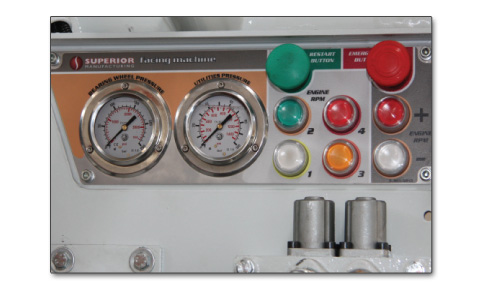

	Control Panel A control panel allows the operator to control the machine's main functions. An emergency button will block all hydraulic operations without affecting the diesel engine of the power unit. < Click image to enlarge
