Overview

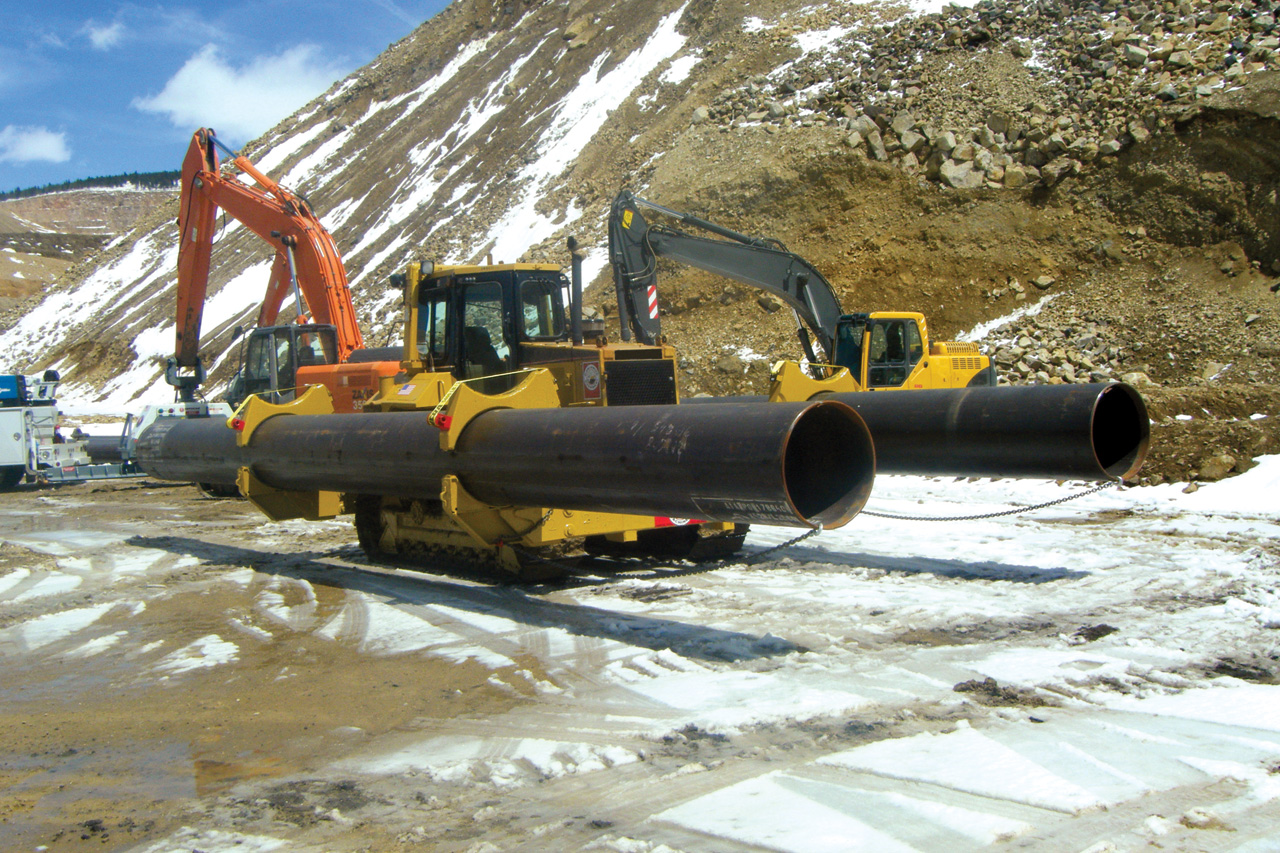

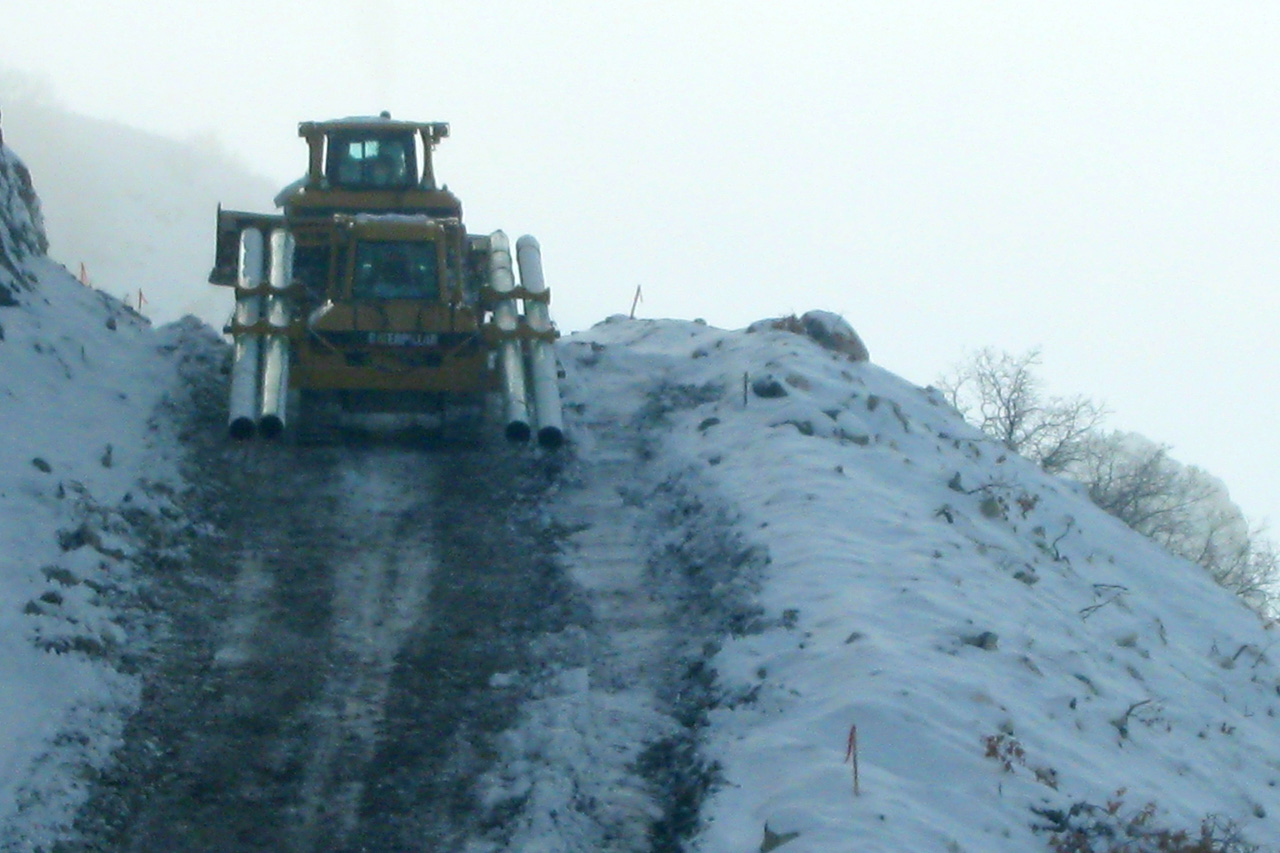

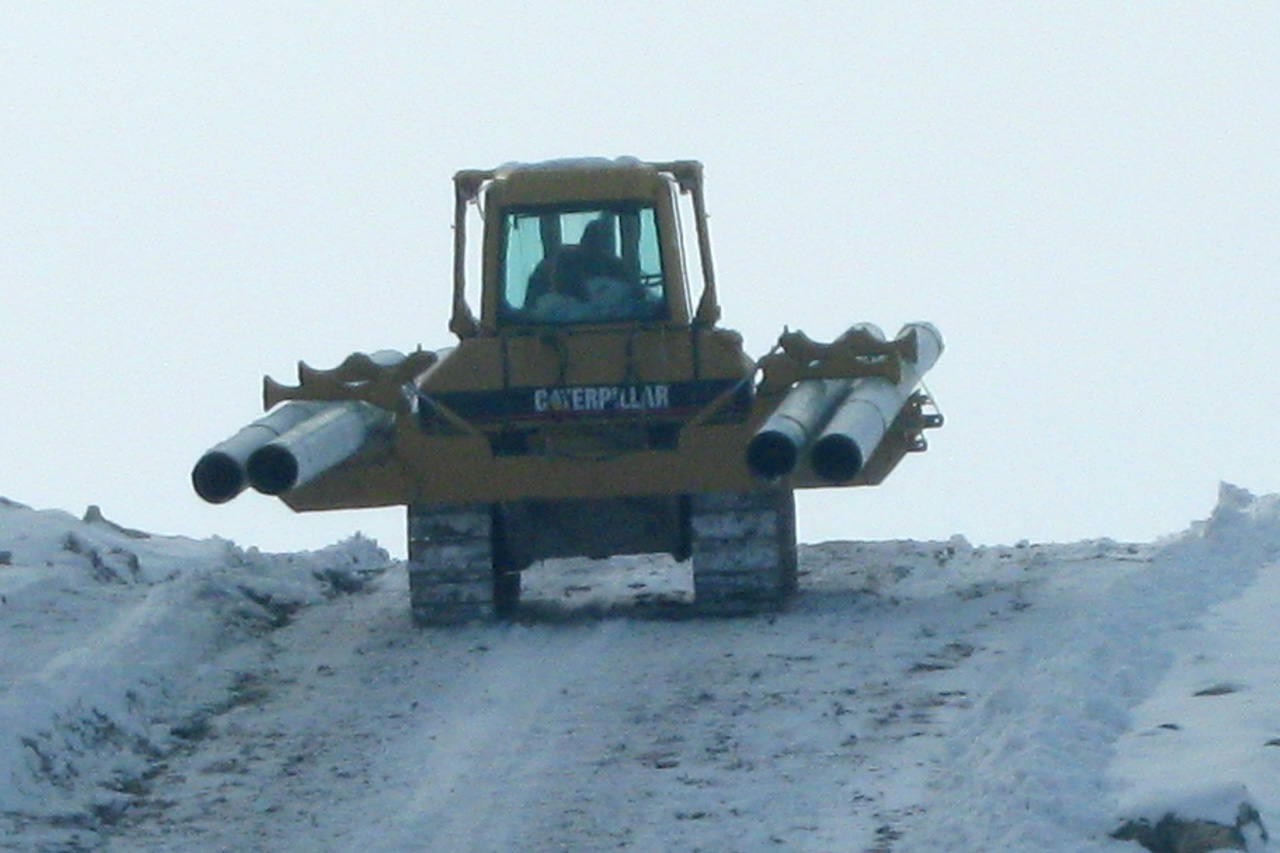

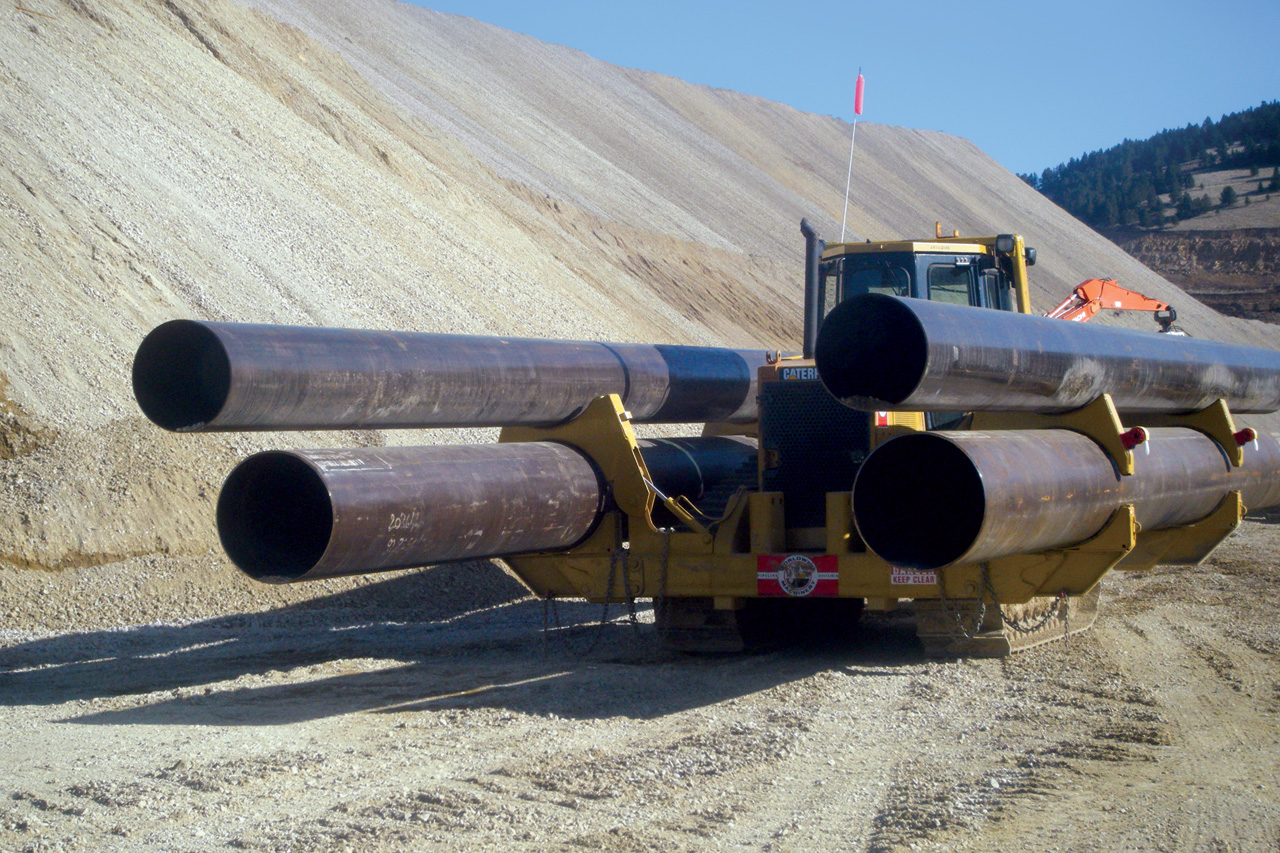

The SPC-Series are Cat-based pipe carriers fitted with a special kit to transport pipes of various diameters. The hydraulic operated cradle arms require no special hydraulic power source and can be easily removed and re-installed. In addition, this kit can be made to fit your Caterpillar tractor. The biggest model of the family, the SPC-D80, is suitable for sizes ranging from 40 to 60 inches and it’s based on a D8R tractor.

  • Specifications

PIPE D.N. NO. PIPES PER SIDE TOTAL PIPES PER TRACTOR MAXIMUM WALL THICKNESS
60 in 1 2 1-1/4 in - 31.6 mm
58 in 1 2 1-1/4 in - 31.6 mm
56 in 1 2 1-1/4 in - 31.6 mm
54 in 1 2 1-1/4 in - 31.6 mm
52 in 1 2 1-1/4 in - 31.6 mm
50 in 1 2 1-1/4 in - 31.6 mm
48 in 1 2 1-1/4 in - 31.6 mm
46 in 1 2 1-1/4 in - 31.6 mm
44 in 1 2 1 in - 25 mm
42 in 2 4 1 in - 25 mm
40 in 2 4 1 in - 25 mm

  • Main Features

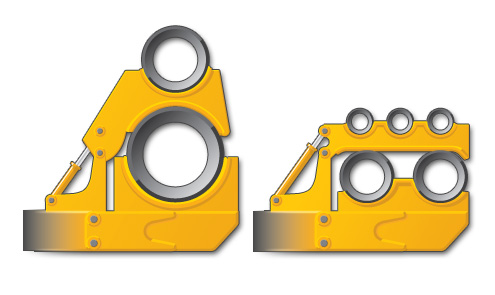

Custom Cradles

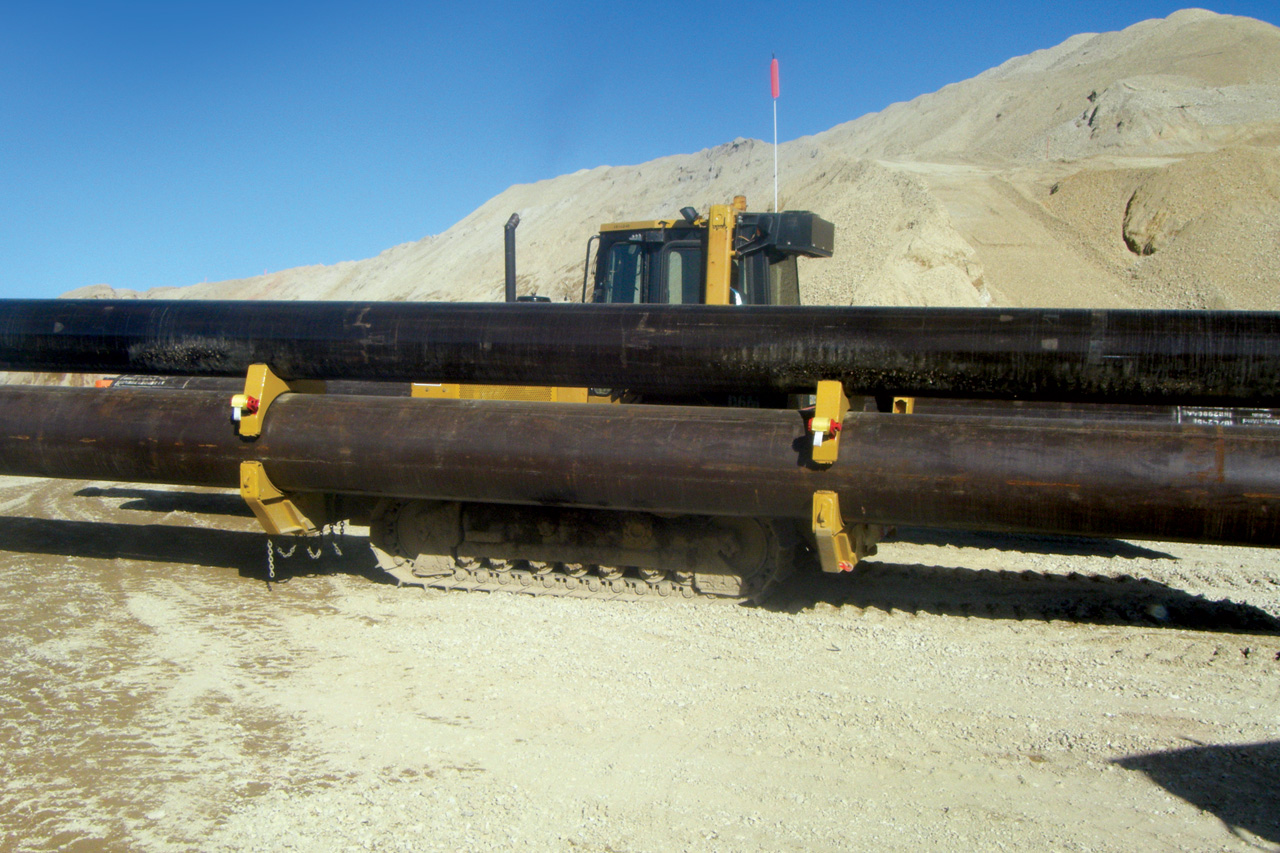

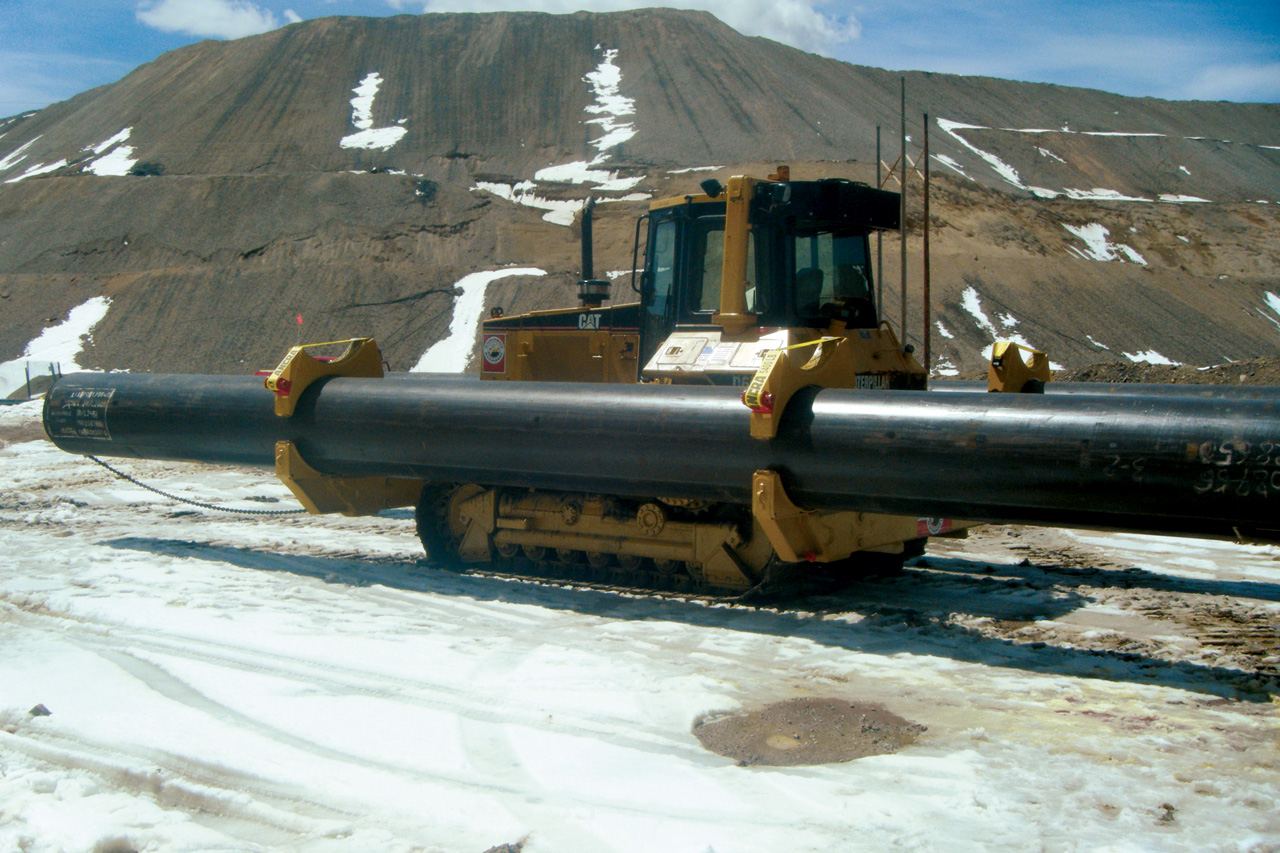

The cradles are custom-made to fit any pipe size combination the customer requires. The cradles can be replaced to fit different pipe sizes within the machine’s pipe range.

< Click image to enlarge

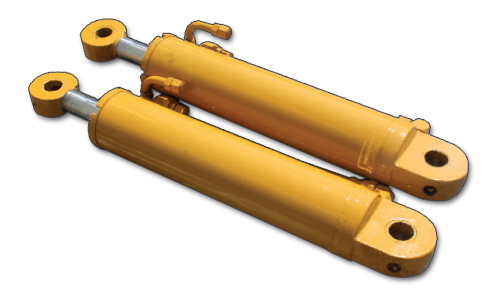

Hydraulic System

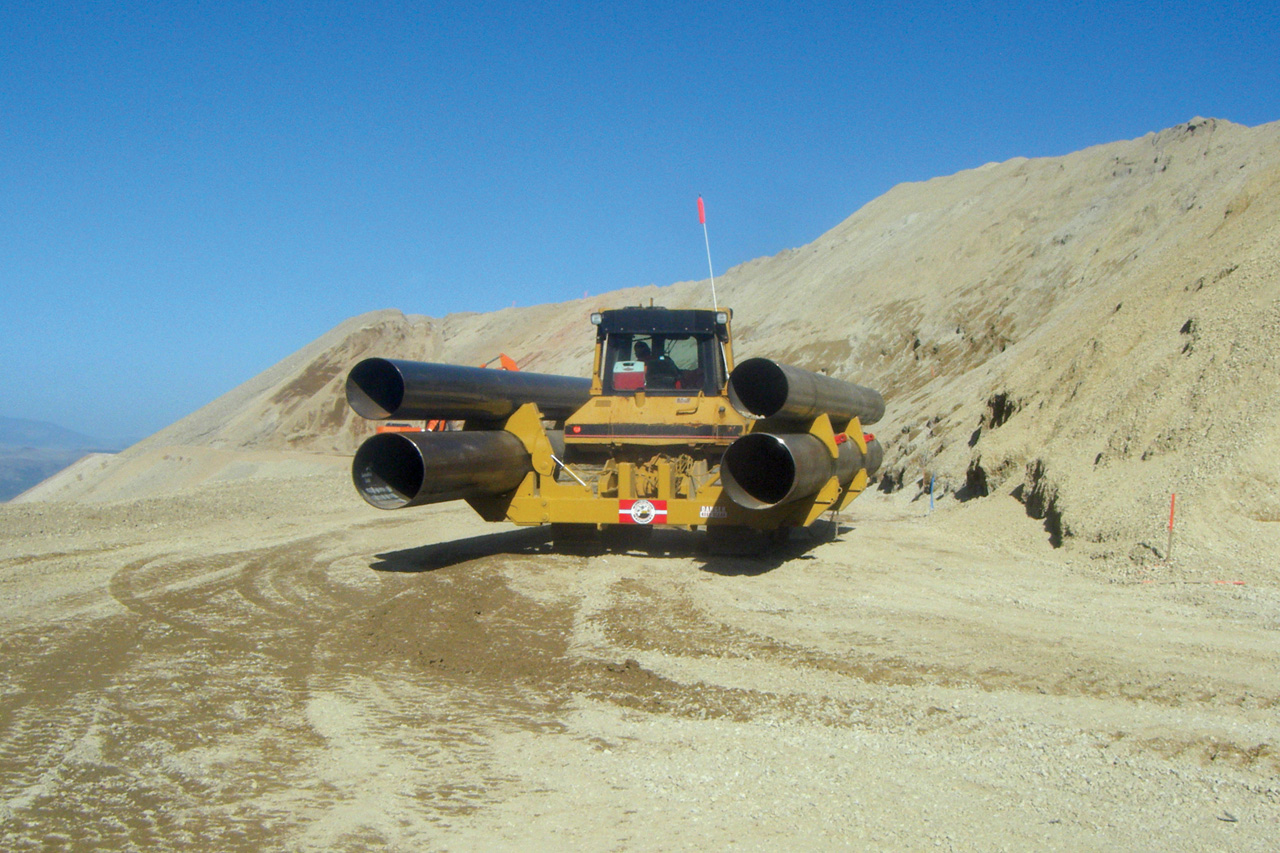

The top cradle tilts up hydraulically for loading and unloading, creating a safer work environment. The hydraulic cylinders are controlled from the cabin.

< Click image to enlarge

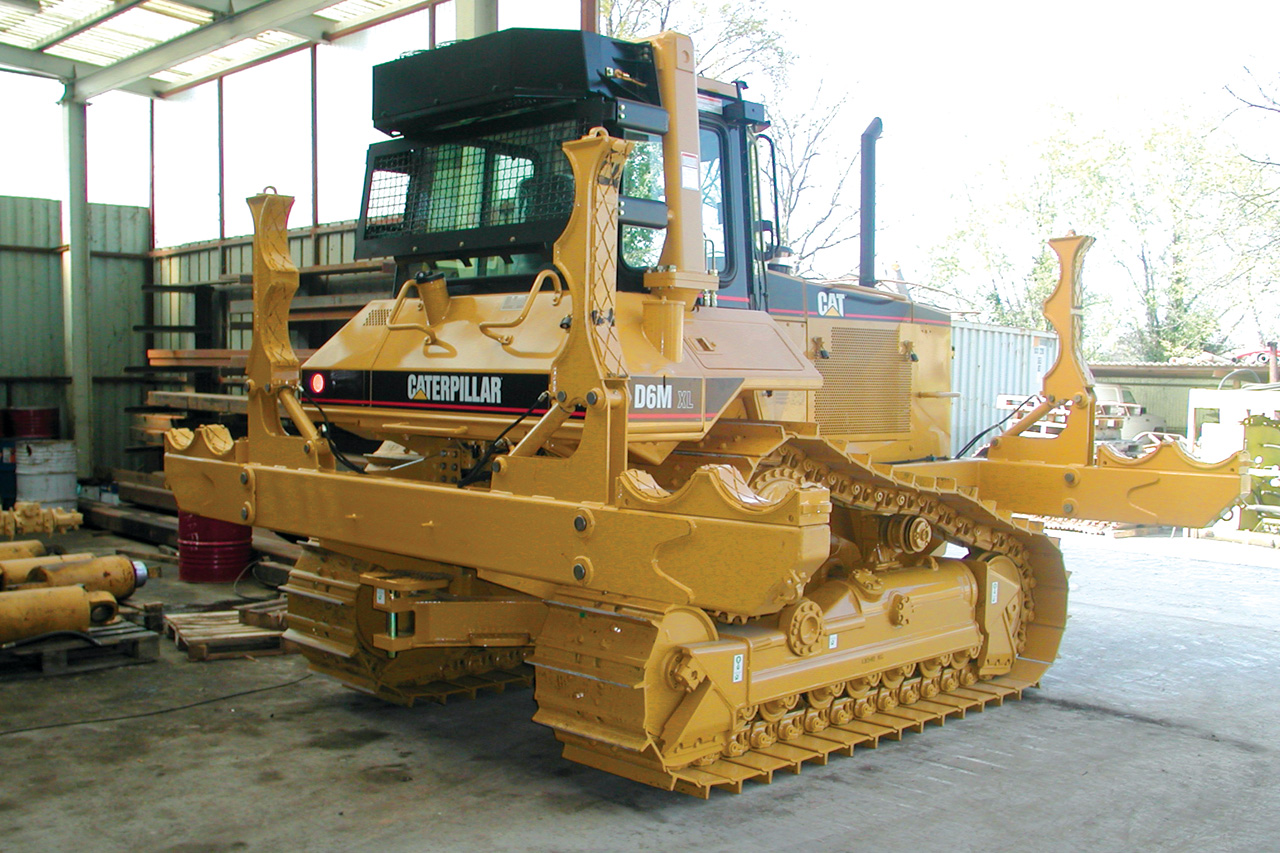

Ease of Transport

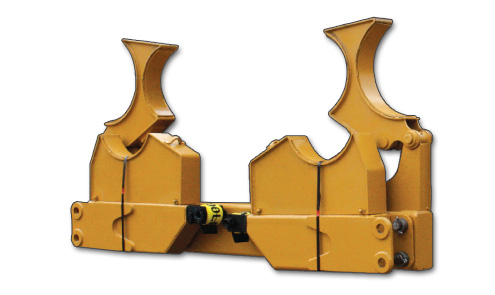

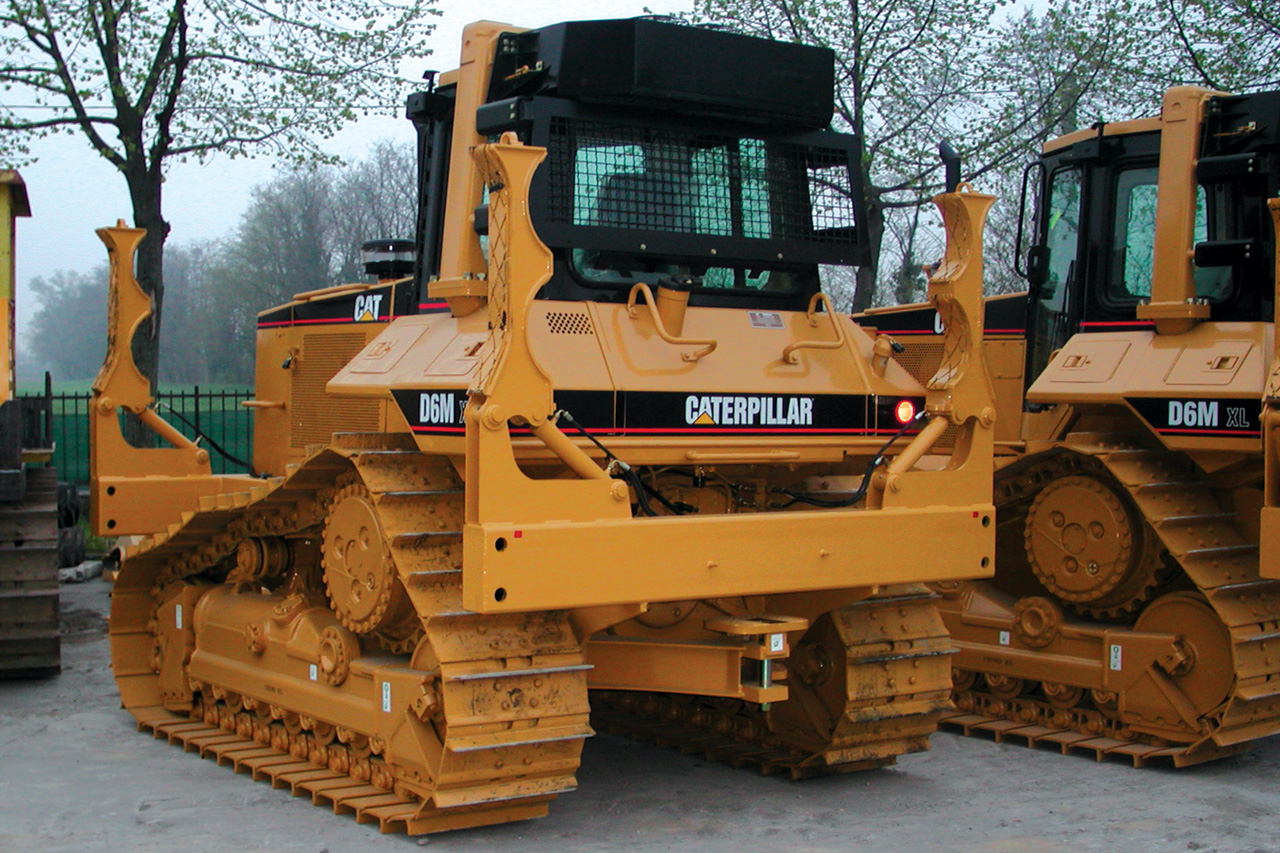

The pipe carrying kit can be partially disassembled for transport, then easily assembled back again.

< Click image to enlarge
