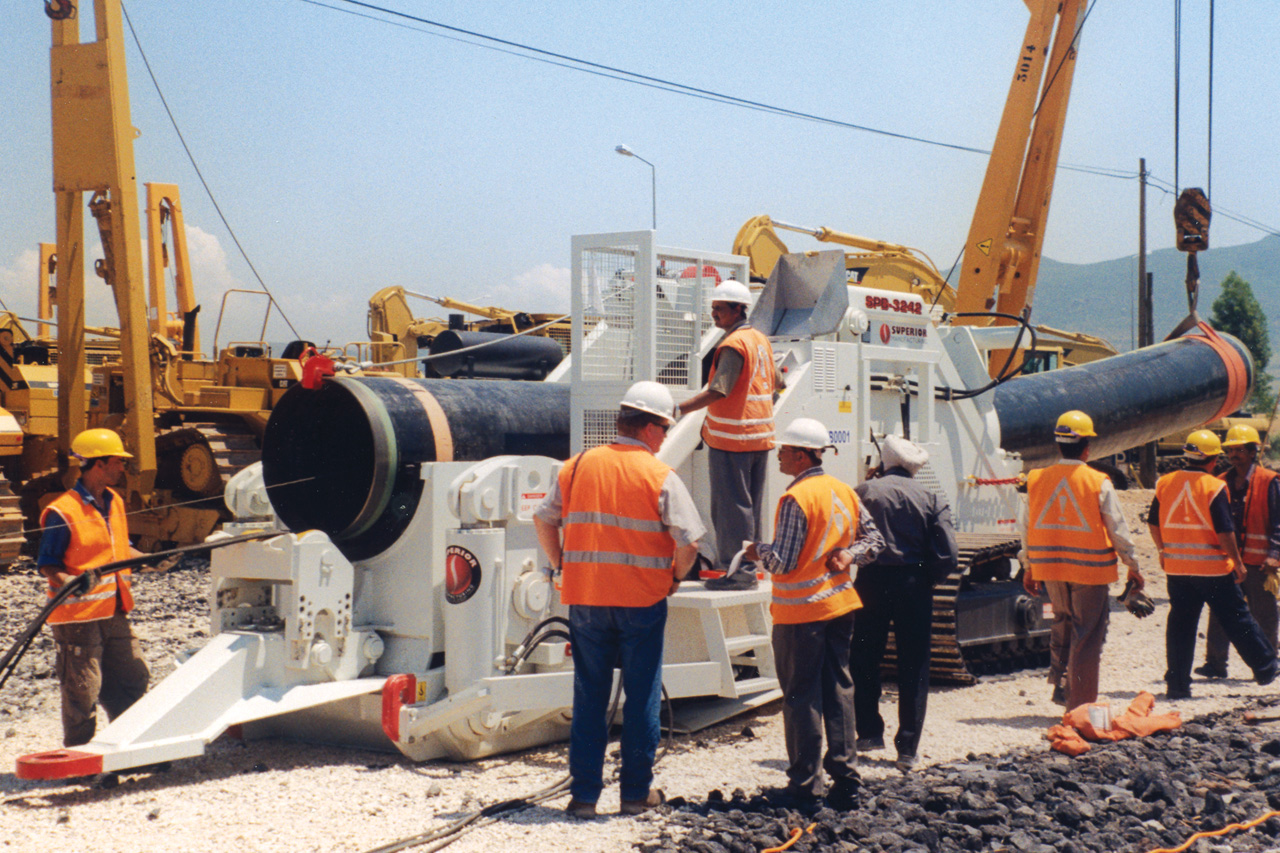

Overview


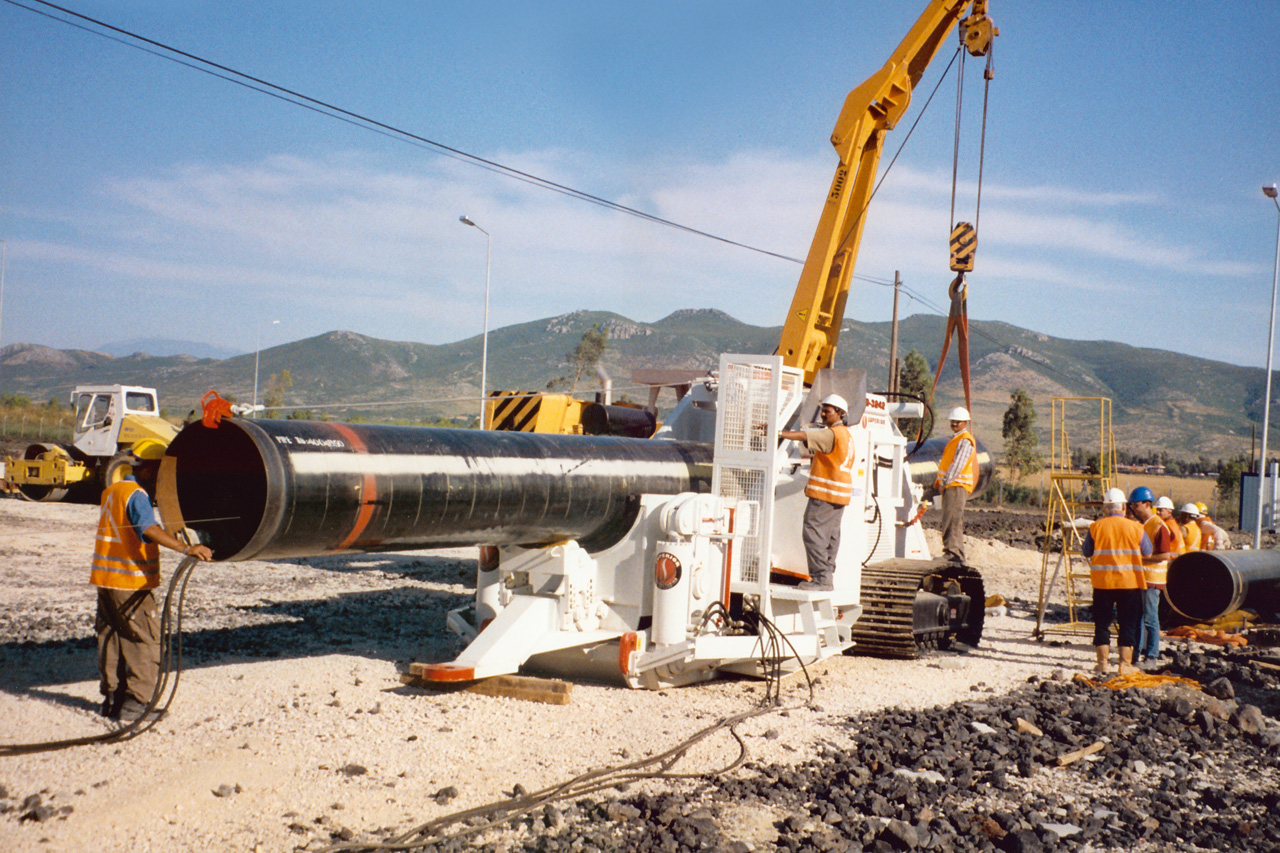

The new pipe bending machine SPB 32-42 belongs to the "Millennium Series" fleet, which is the new generation of SUPERIOR pipe benders. Despite its simplicity, this machine guarantees high performances in terms of speed and push. The hydraulic system has 5 spools; the fifth spool may be used to control the hydraulic mandrel, if fitted. The separate valves enable the operator to set the mandrel pressure independently from the machine. The hydraulic cylinders are sized in such a way that they can operate with pressures exceeding 300 bar.

  • Specifications


Model
Caterpillar C-6.6 ACERT
Net flywheel power (DIN 6271)
225 HP
Governed speed
1,900 rpm
Displacement
6.6 liters
Number of cylinders
6
Compression ratio
16:1
Engine bore
105 mm - 127 mm
Number of cylinders
6
Type
Metal work with filter
Capacity
121 U.S. gal / 460 lt
Cartridge type
Parker
Type
Axial piston, load-sensing pump with tilted plate and constant power control
Maximum flow rate
108 U.S. gal/min - 410 lt/min
Maximum constant pressure
4,351 p.s.i. / 300 bar
Maximum peak pressure
4,641 p.s.i. / 320 bar
Type
2.280.0017
Maximum pull at first layer
17,306 lbs / 7,850 kg
Hydraulic motor
Orbital DANFOSS
Frame
Aluminum alloy + ductile cast iron
Reduction gear
with worm screw, irreversible
Neutral
Manual
Maximum operating pressure
1,885 p.s.i. / 130 bar
Maximum feed flow rate
26 U.S. gal/min - 100 lt/min
Speed at first layer
16 ft/min - 4,85 m/min
Recommended cable diameter
1/2 inch / 13 mm
Wire rope type
6 strands with textyle core
R=2,160 N/mm2 min. breaking load guaranteed 15,700 kg
Brand
Rexroth
Type
Load-sensing with proportional control (LUDV)
Spools
N.5
Type
Metal work with filter
Capacity
76 U.S. gal / 290 lt
Spool 1: Out-board and in-board cylinders, clamp
Maximum Flow
84.5 U.S. gal/min - 320 lt/min
Pressure
4,641 p.s.i. / 320 bar
Spool 2: Wedge cylinder
Maximum Flow
84.5 U.S. gal/min - 320 lt/min
Pressure
2,175 - 3,190 p.s.i. / 150-220 bar
Spool 3: Winch
Maximum Flow
42.2 U.S. gal/min - 160 lt/min
Pressure
1,990 p.s.i. / 140 bar
Spool 4: Auxiliary control 1
Maximum Flow
42.2 U.S. gal/min - 160 lt/min
Pressure
1,740 p.s.i. / 120 bar
Spool 5: Auxiliary control 2
Maximum Flow
42.2 U.S. gal/min - 160 lt/min
Pressure
1,740 p.s.i. / 120 bar

  • Main Features

Engine

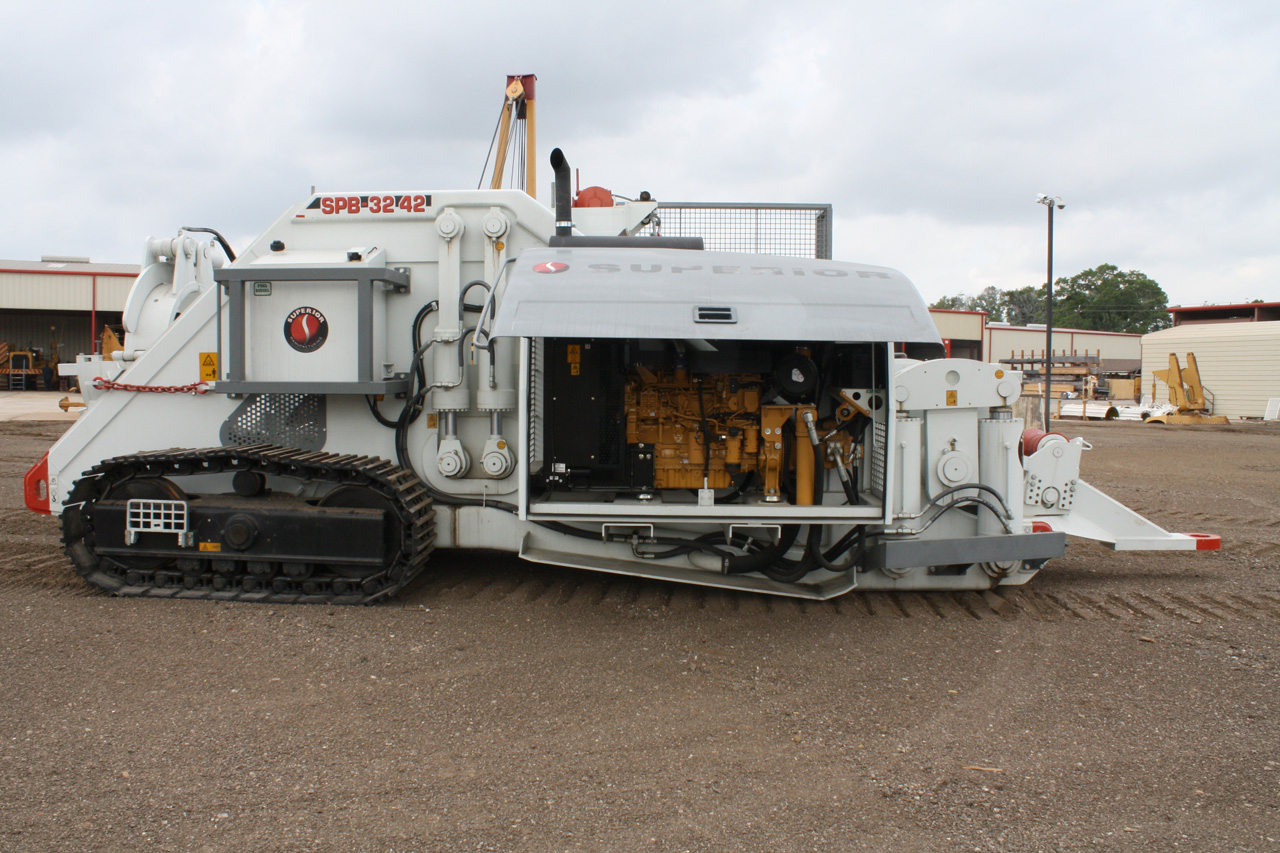

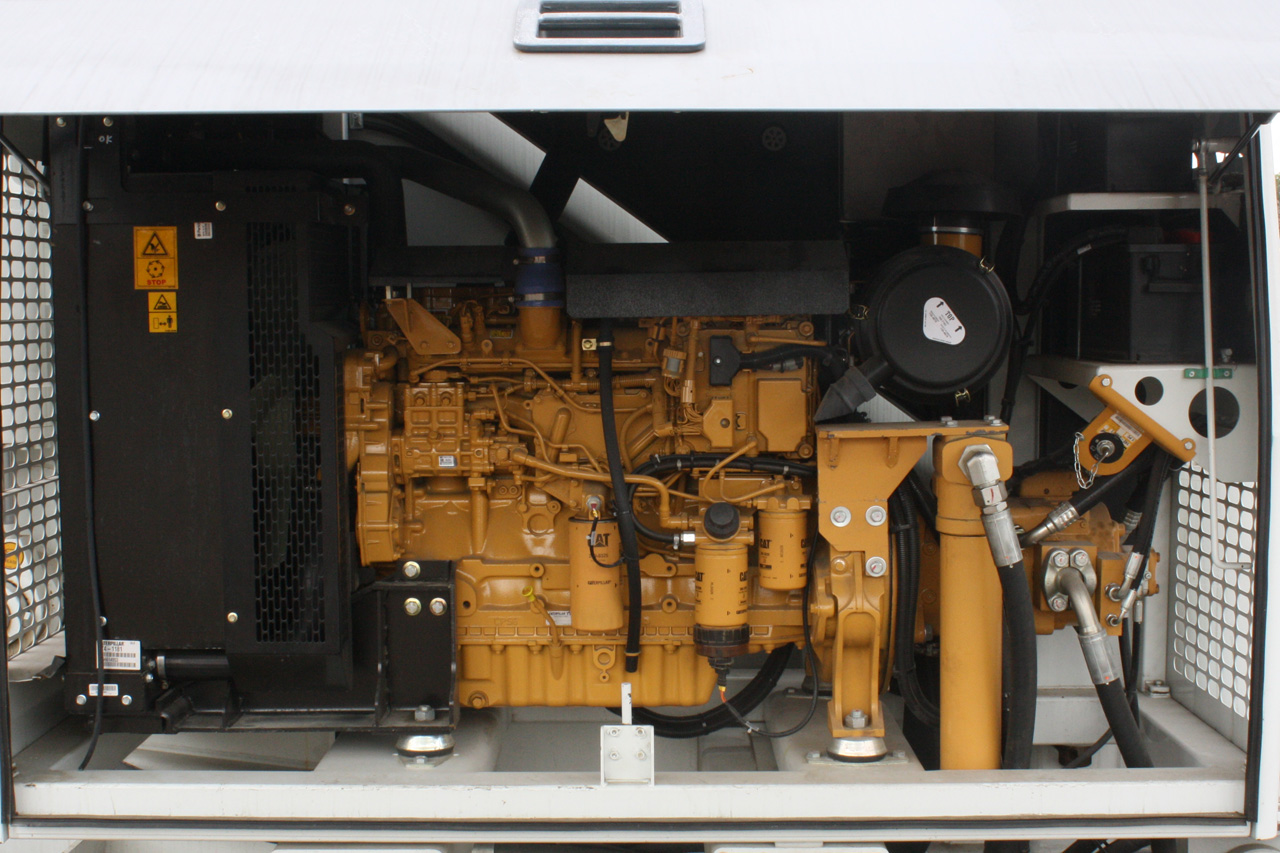

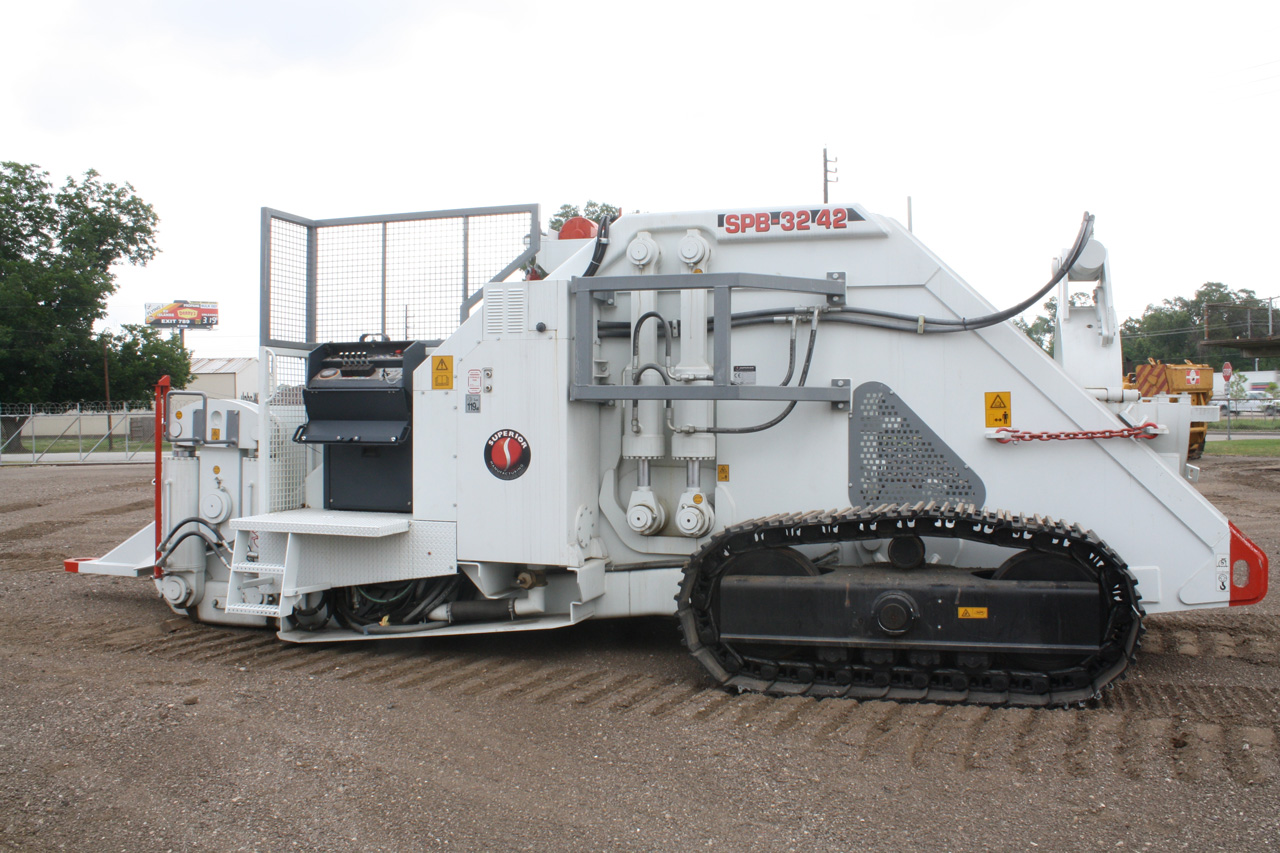

The engine is enclosed in a sound reducing box and is located on the side opposite the operator and complies with recent anti-pollution requirements in all of the industrialized nations. The engine compartment is cleverly designed to swing open to allow easier access to the engine for maintenance.

< Click image to enlarge

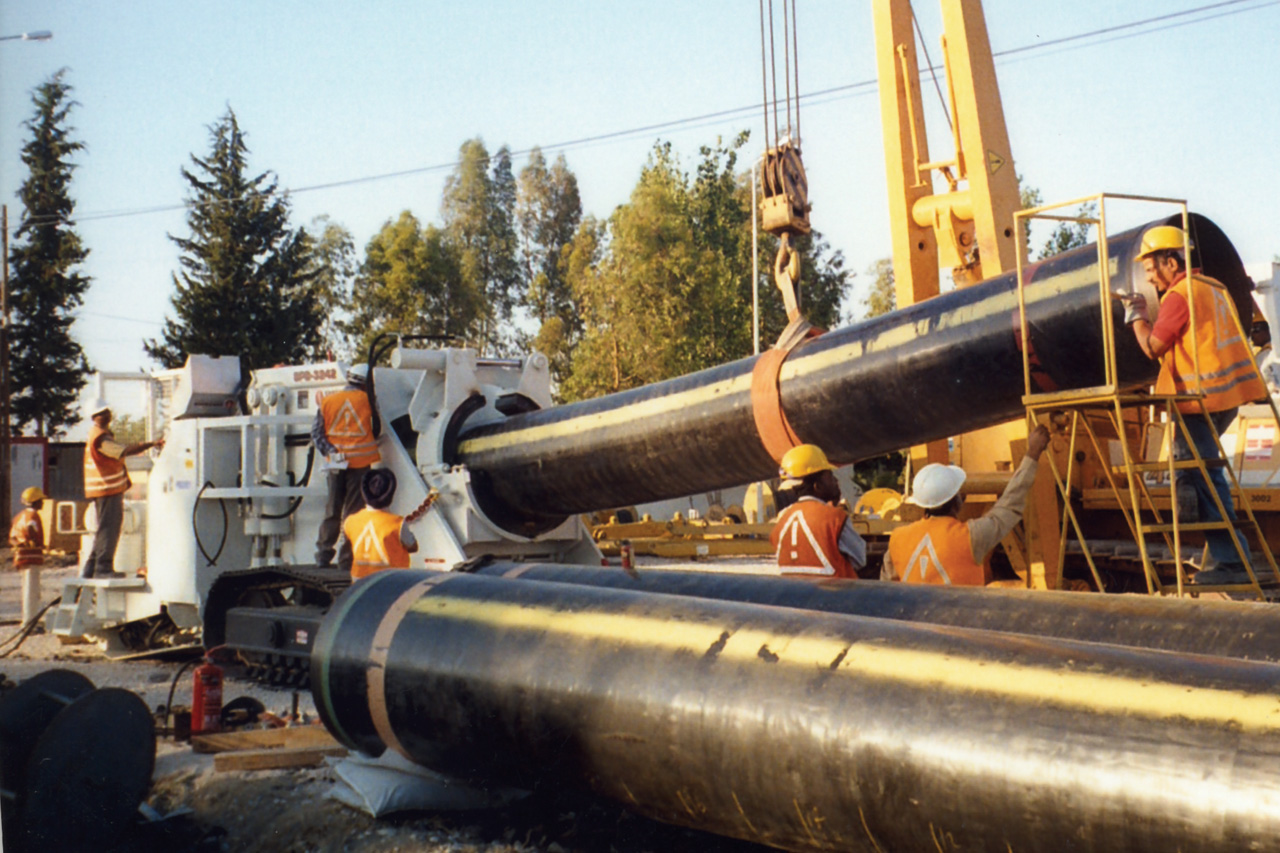

Operator's Platform

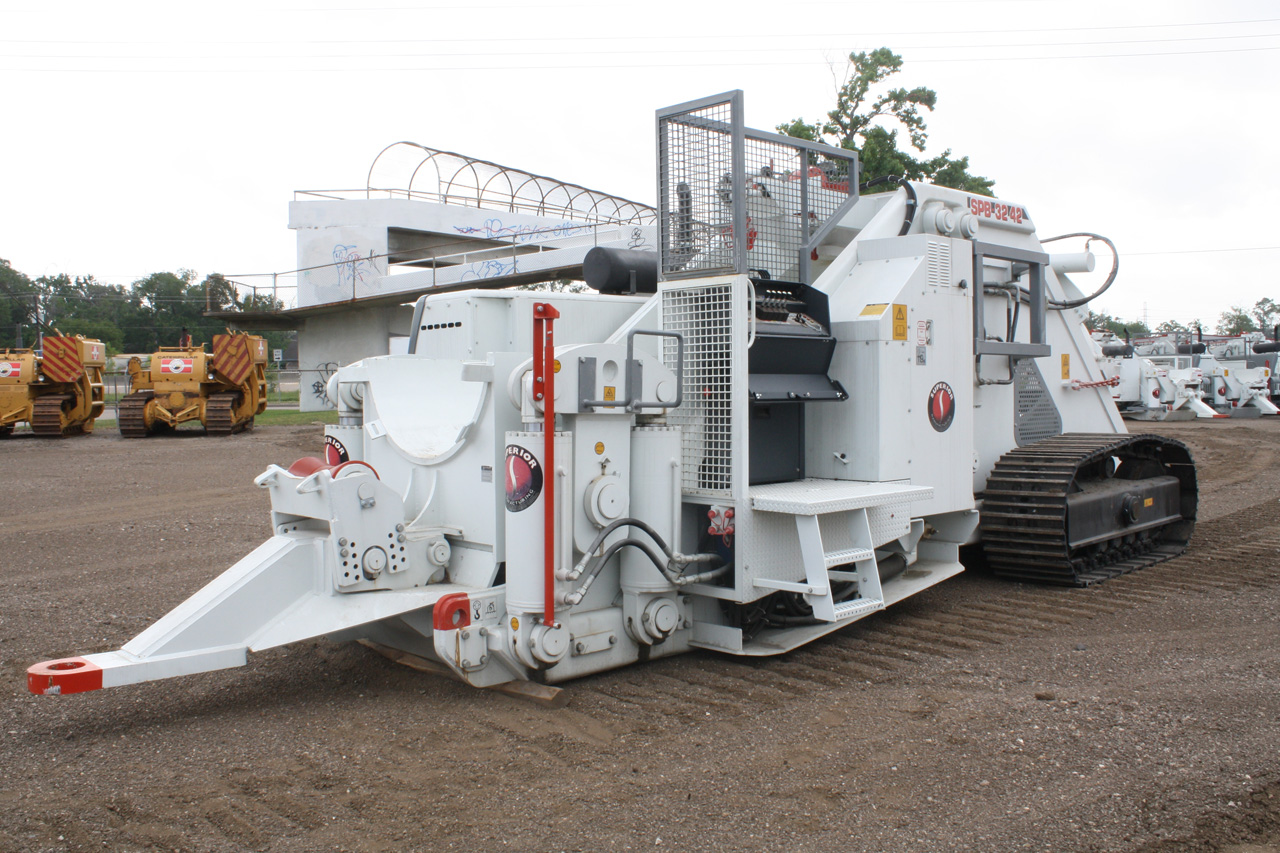

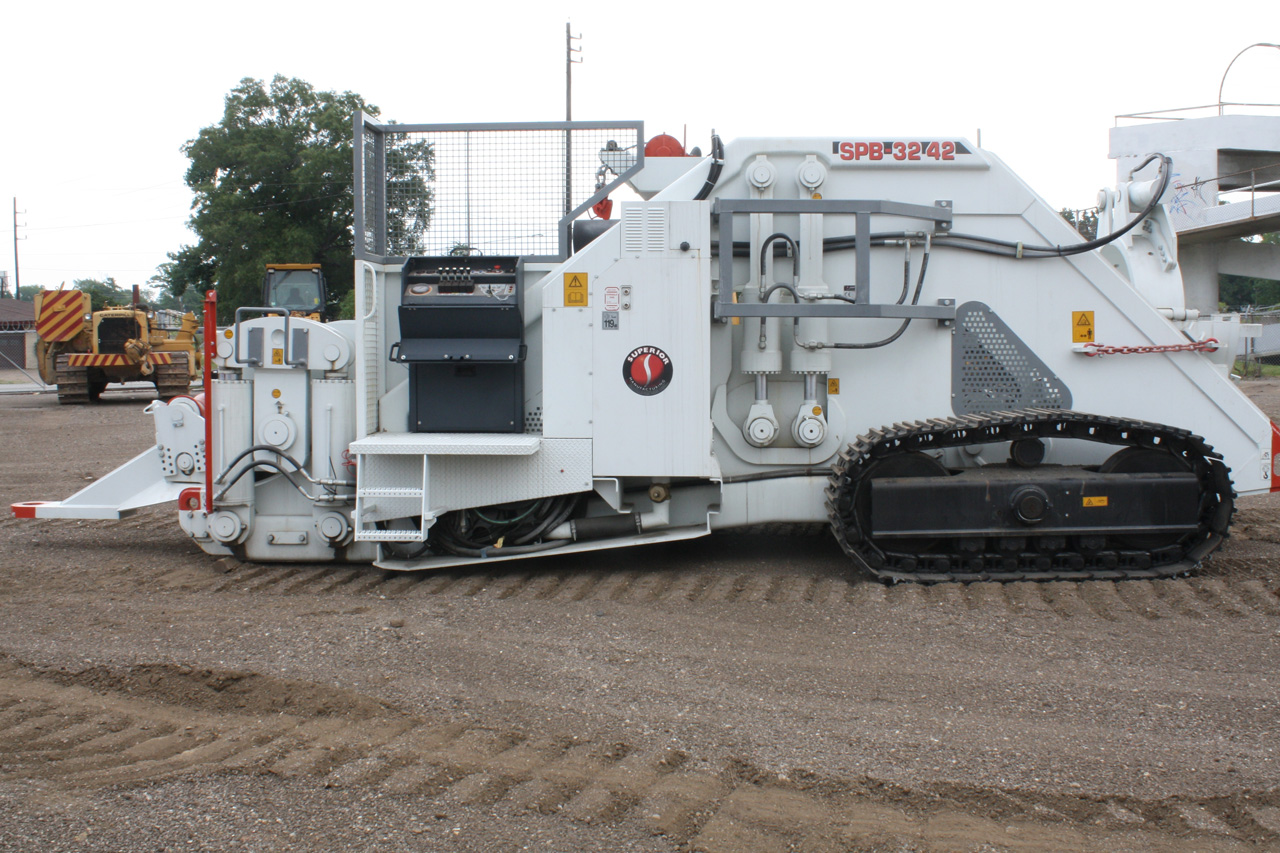

The position of the piloting platform and the engine compartment on opposite sides make this machine unique in terms of operating comfort and guarantee maximum visibility and low noise levels to the operator.

< Click image to enlarge

Hydraulic WInches


Pulling capacity ranging from 3,000 to 10,000 Kg. The free drum control is located in the control panel on the operator's platform.

< Click image to enlarge

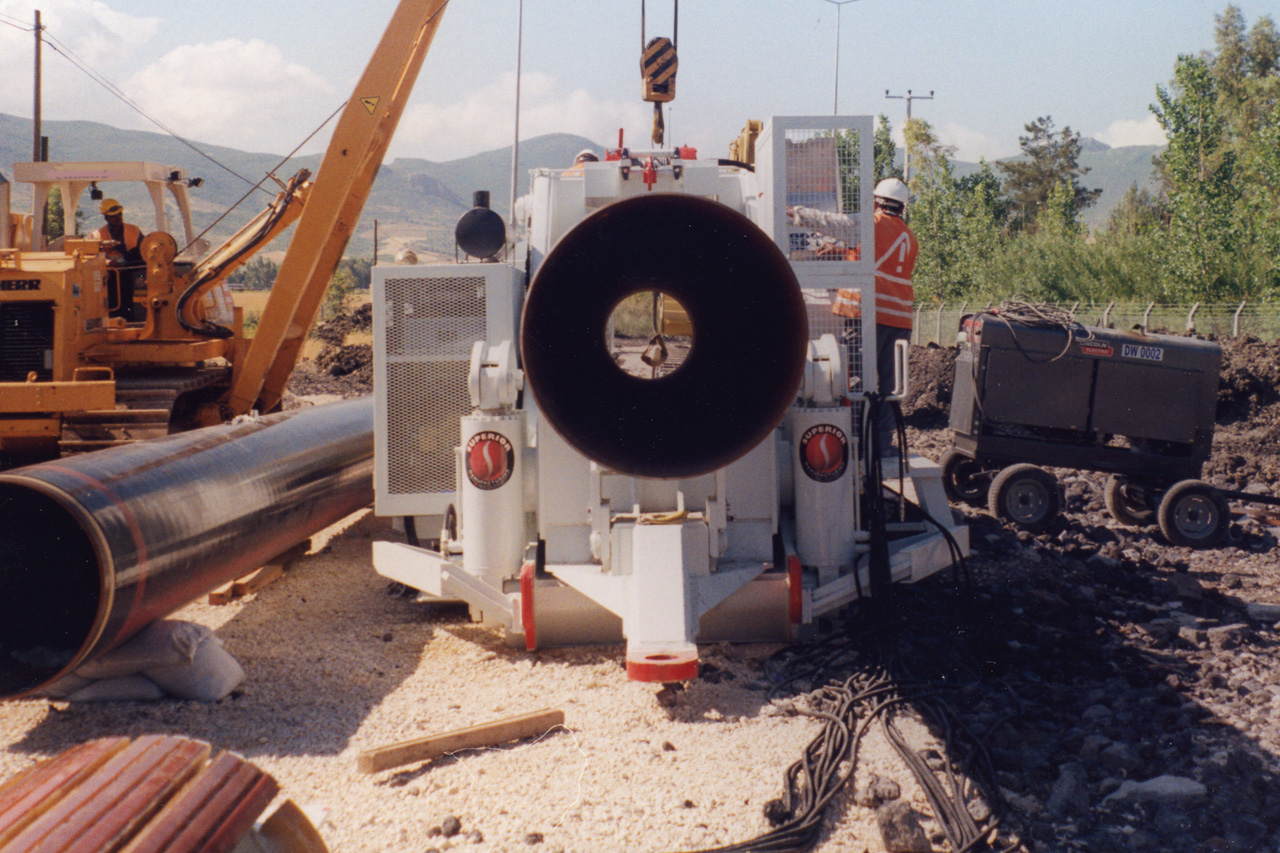

Frame

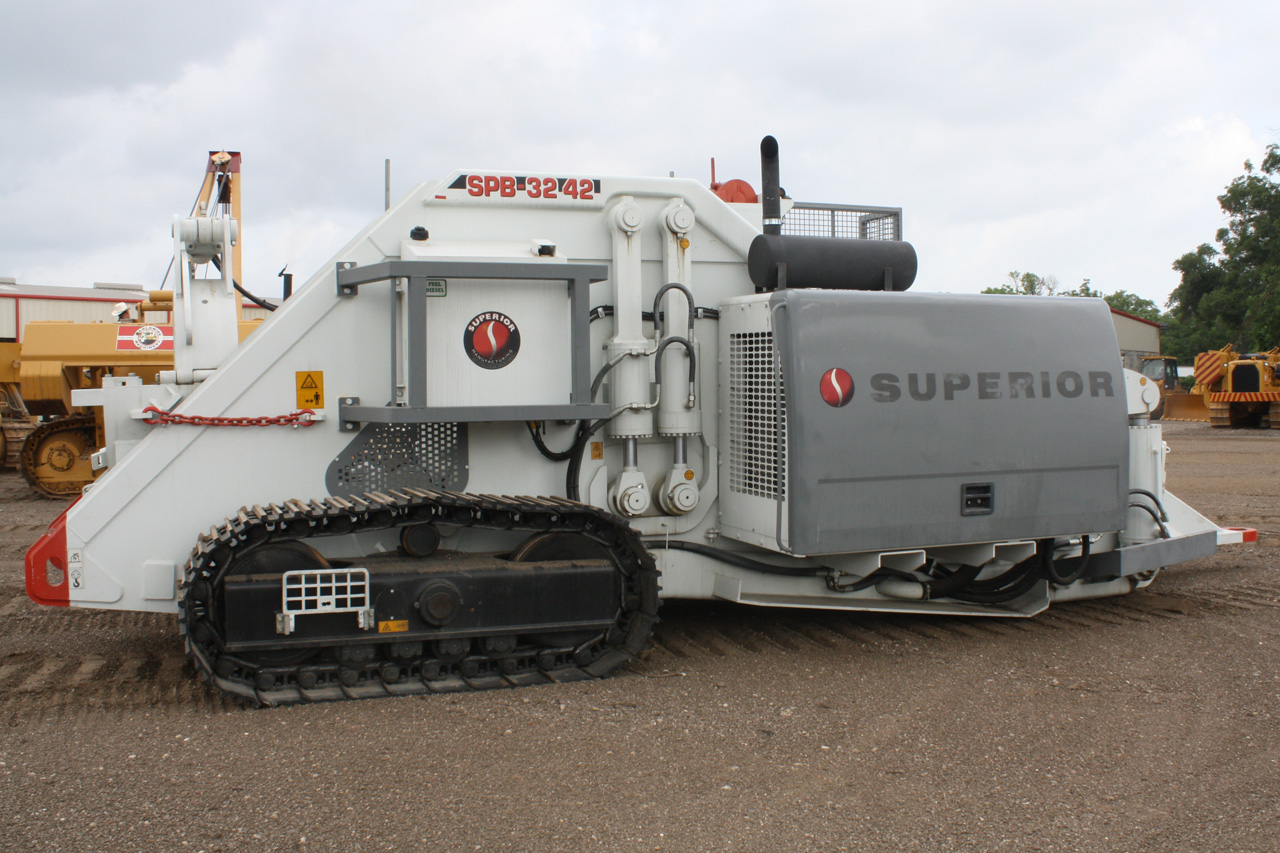

The main frame is built with high quality steel plate and box-section design, making the machine more resistant to stresses, thus permitting bending of high tensile strength pipes.

< Click image to enlarge

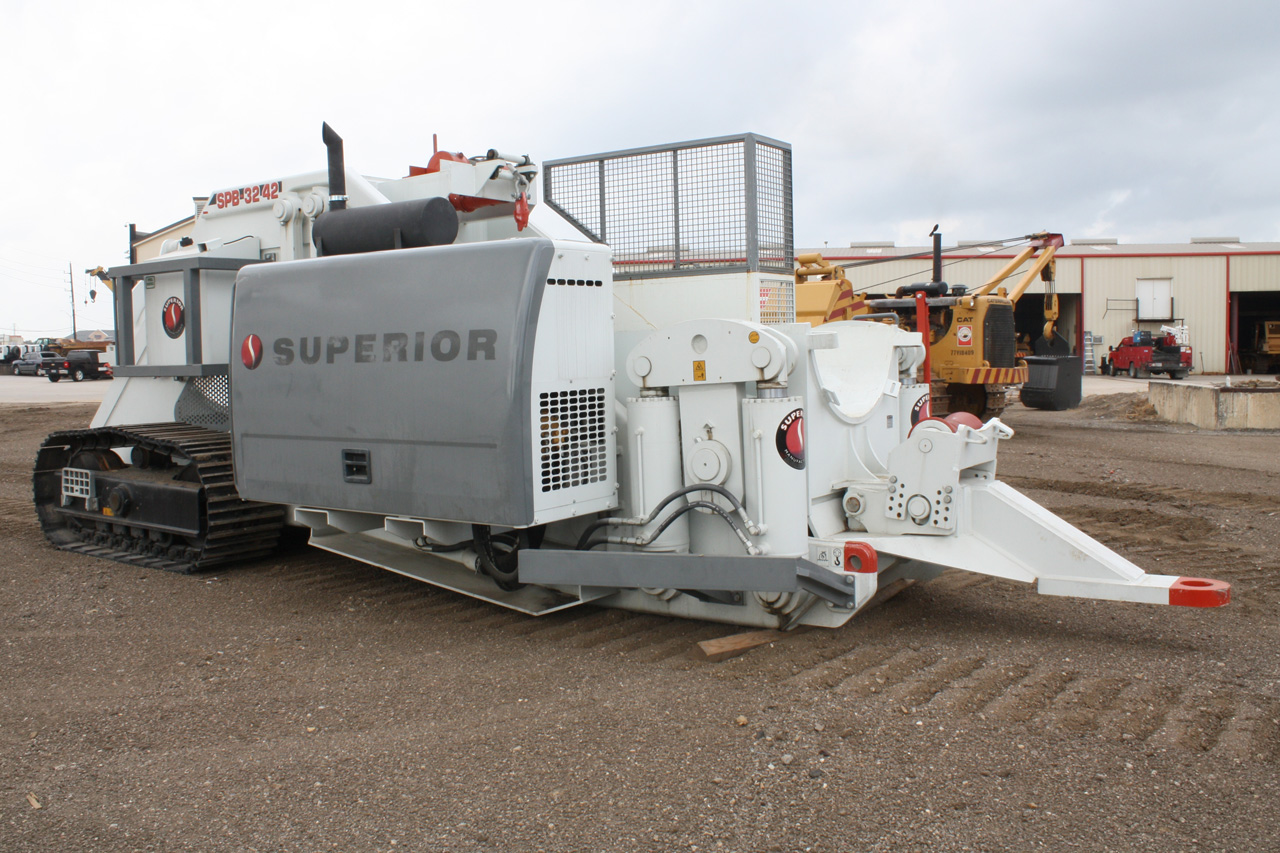

Tracks


Caterpillar-type crawler undercarriages with triple grouser bars on industrial-grade shoes. A hydraulic cylinder controls the tensioning of the tracks.

< Click image to enlarge

Hydraulic System


New hydraulic system with a load-sending variable pump and a five-spool proportional valve, allowing much safer, faster and precise control of movements. The new valve allows the regulation of the pressure and the capacity of each function according to its purpose.

< Click image to enlarge

Optional Cabin


An optional cabin is part of the winterization package and it's available on the larger models.

< Click image to enlarge
