Overview

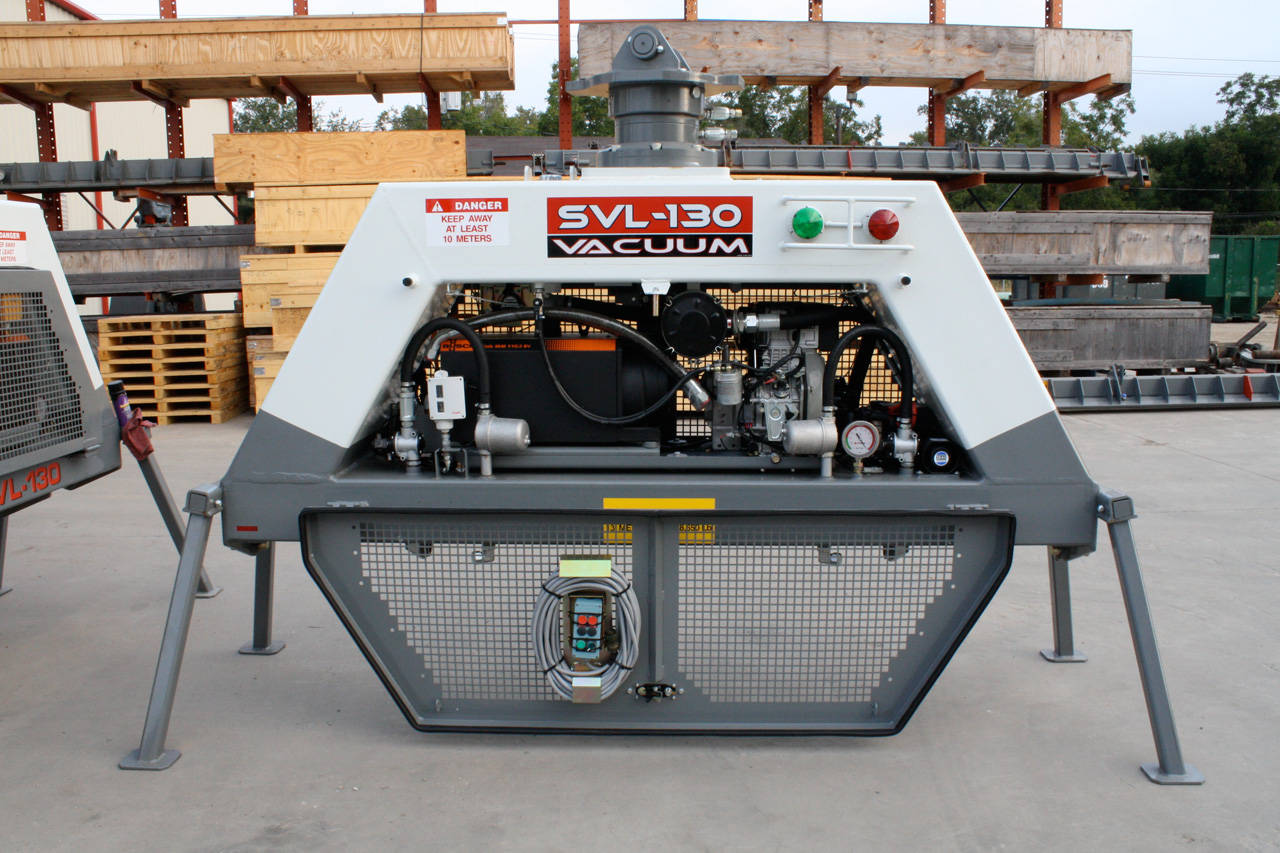

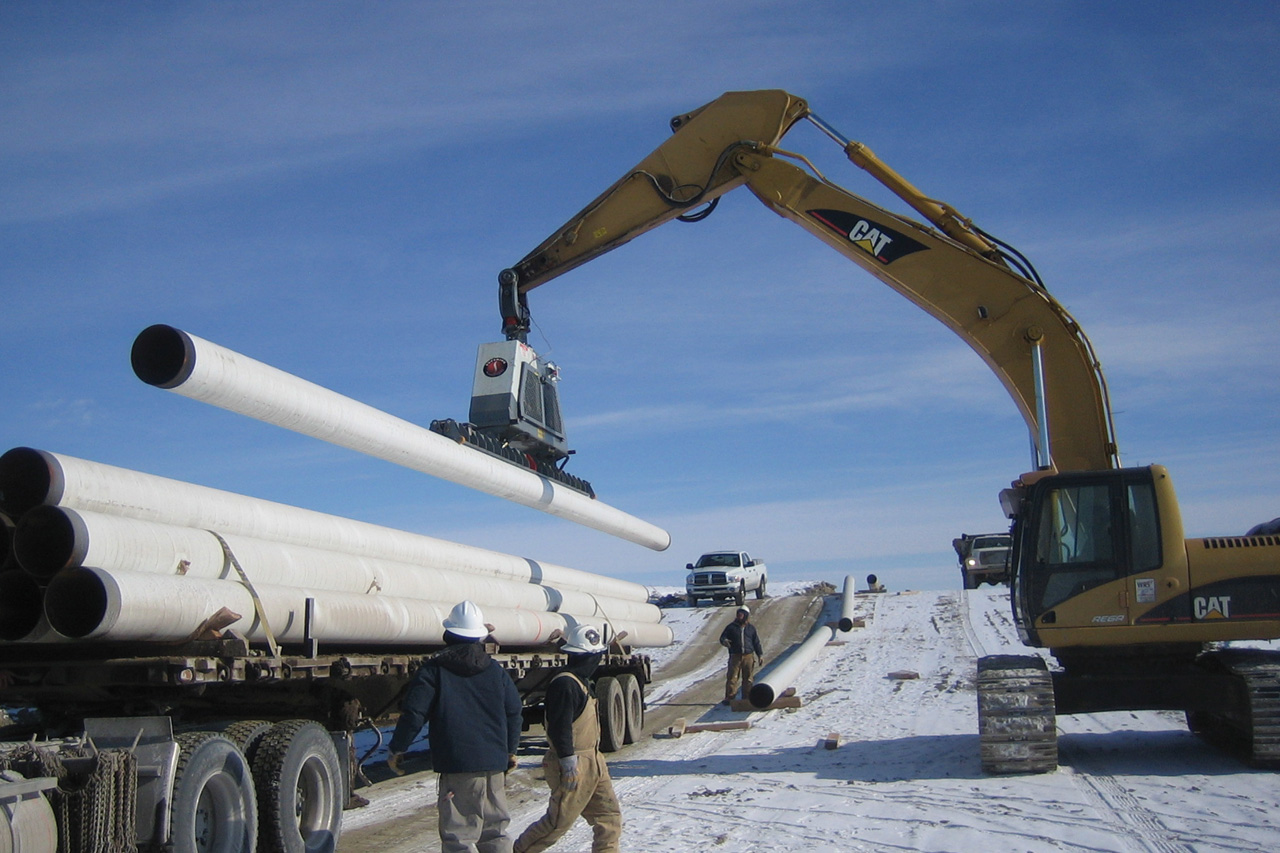

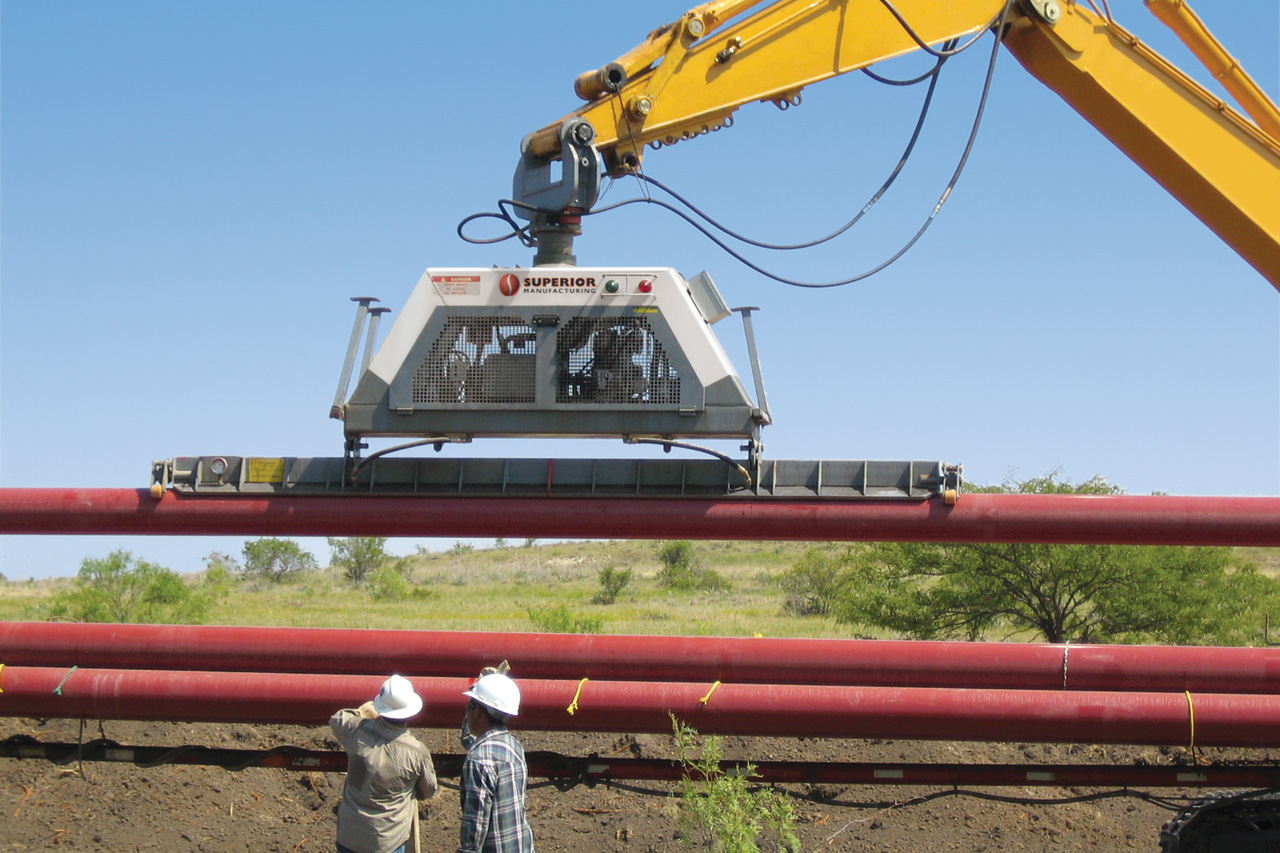

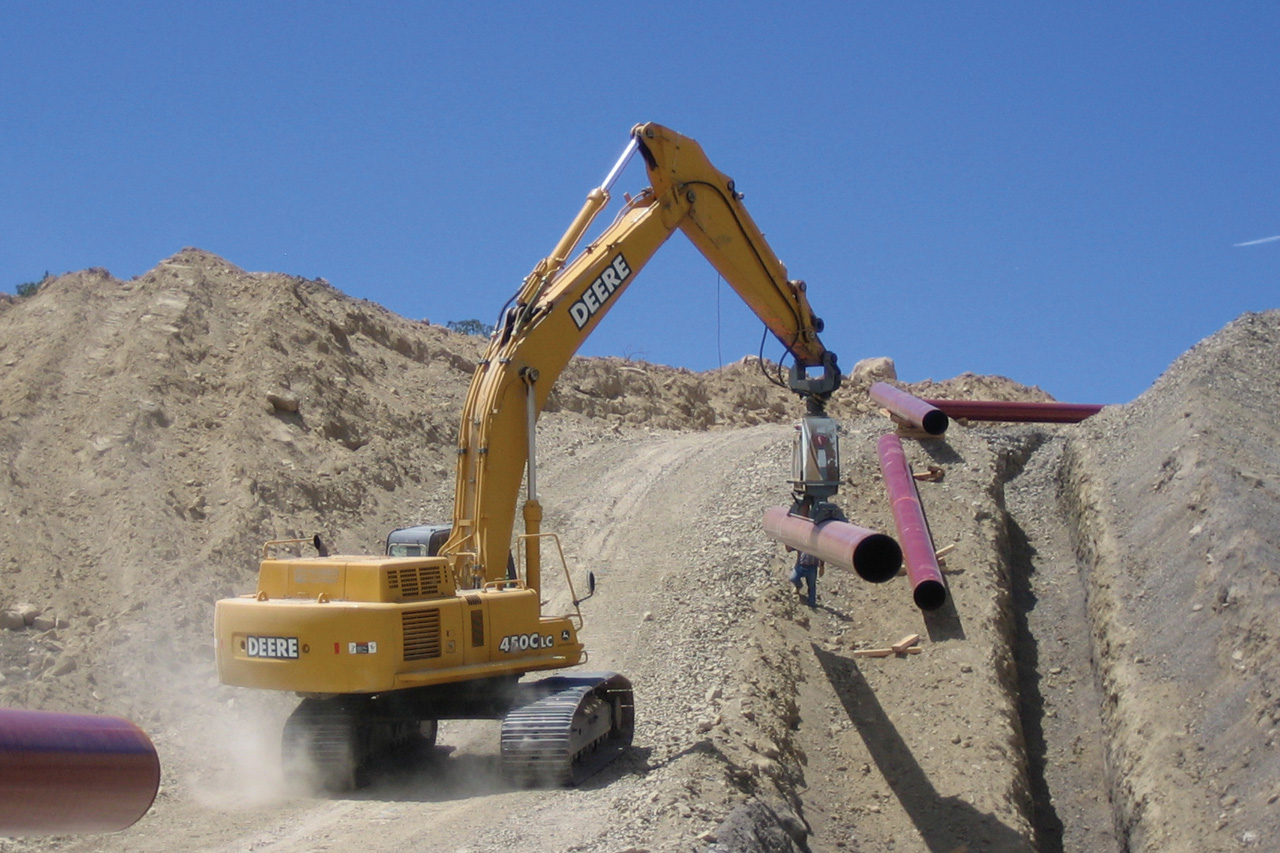

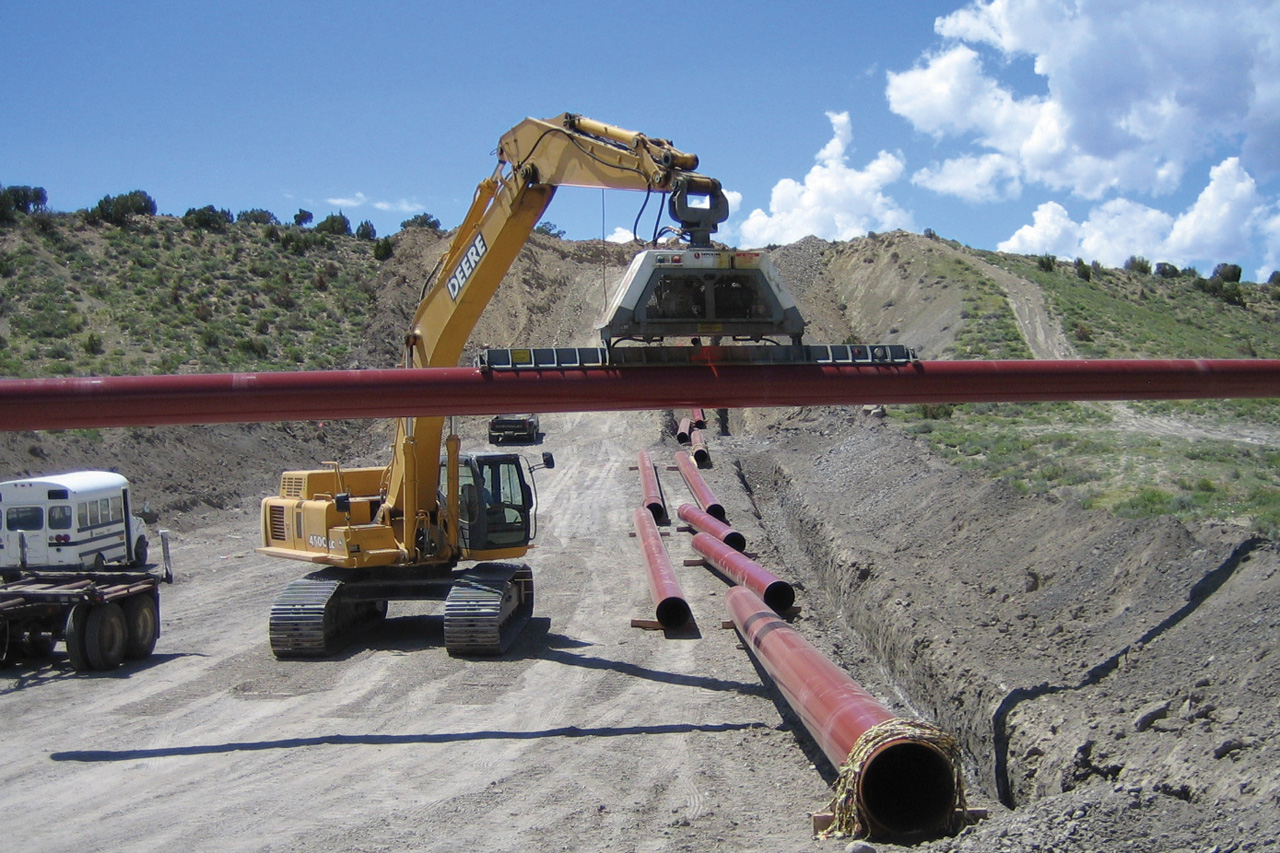

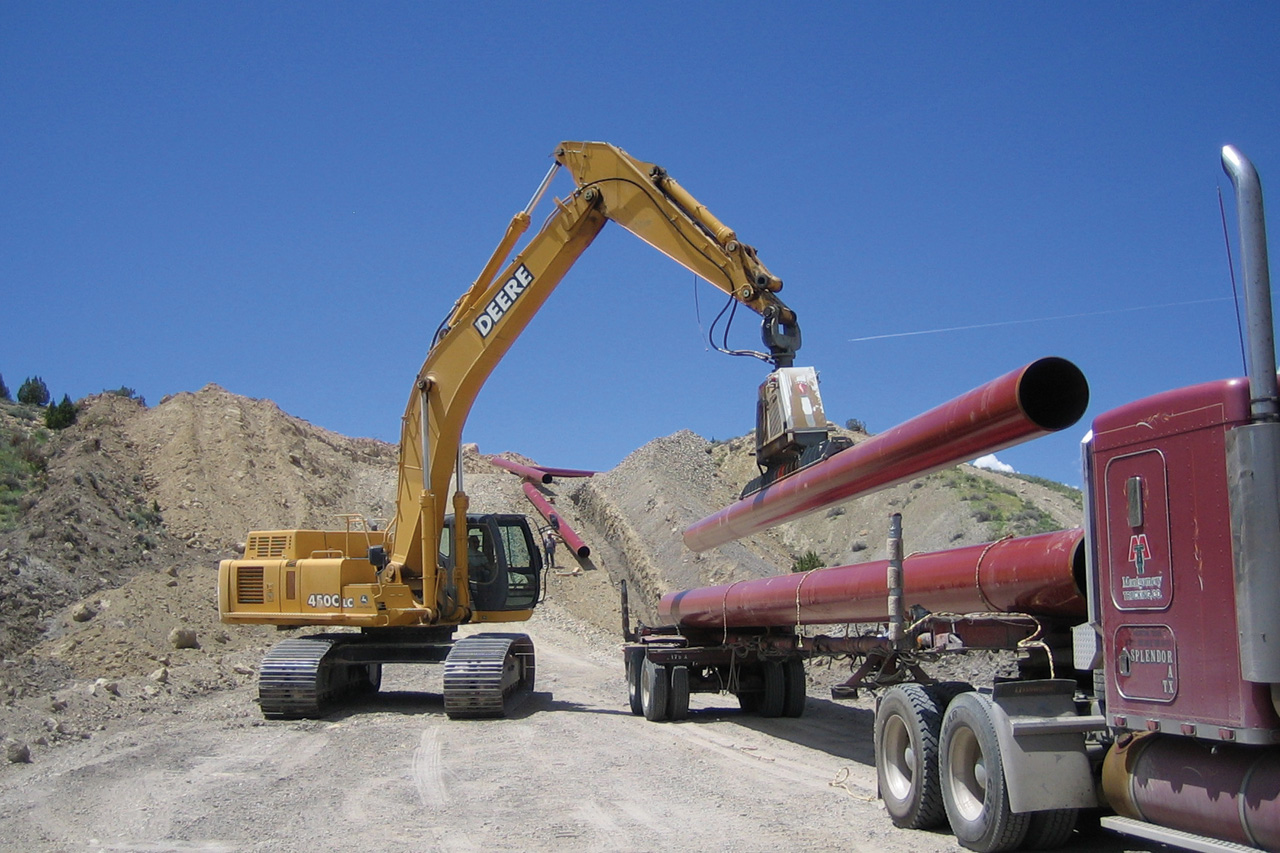

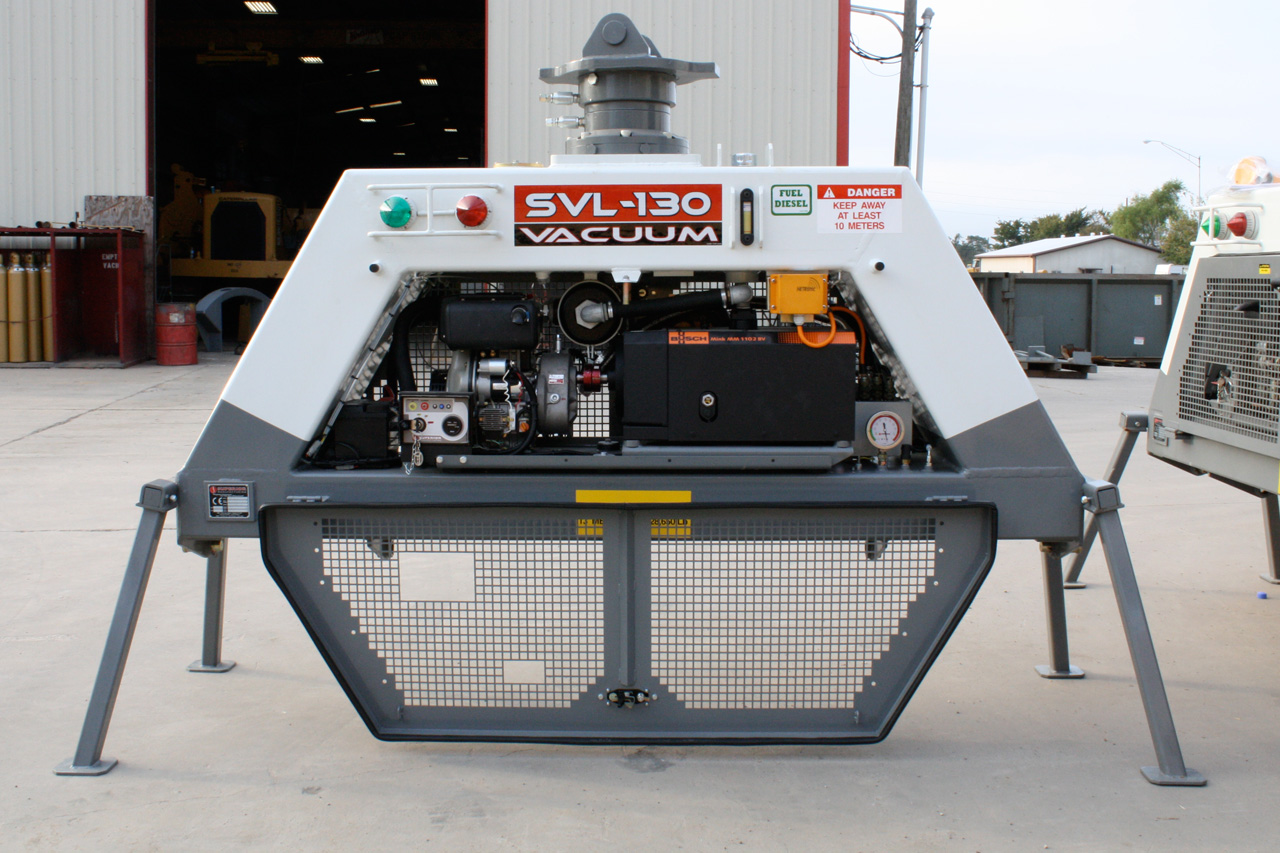

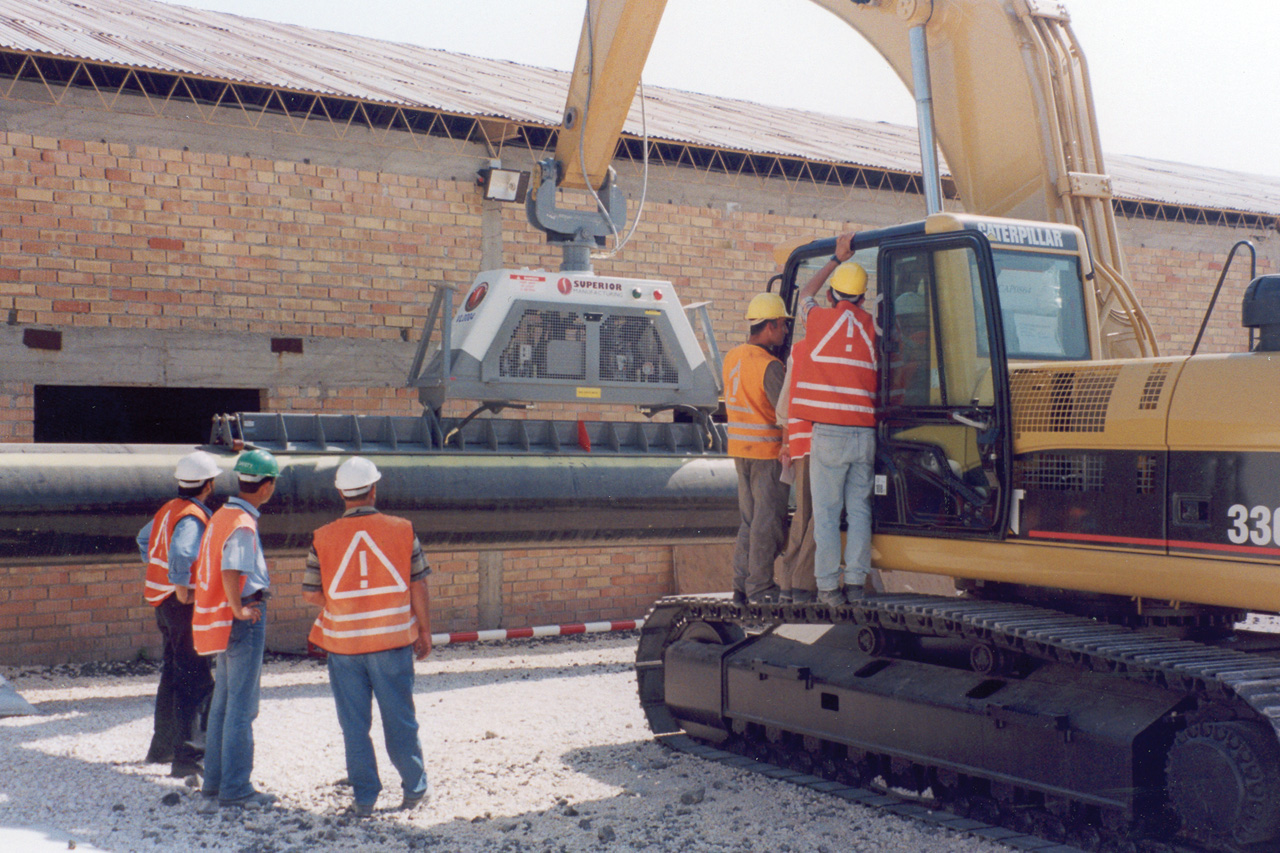

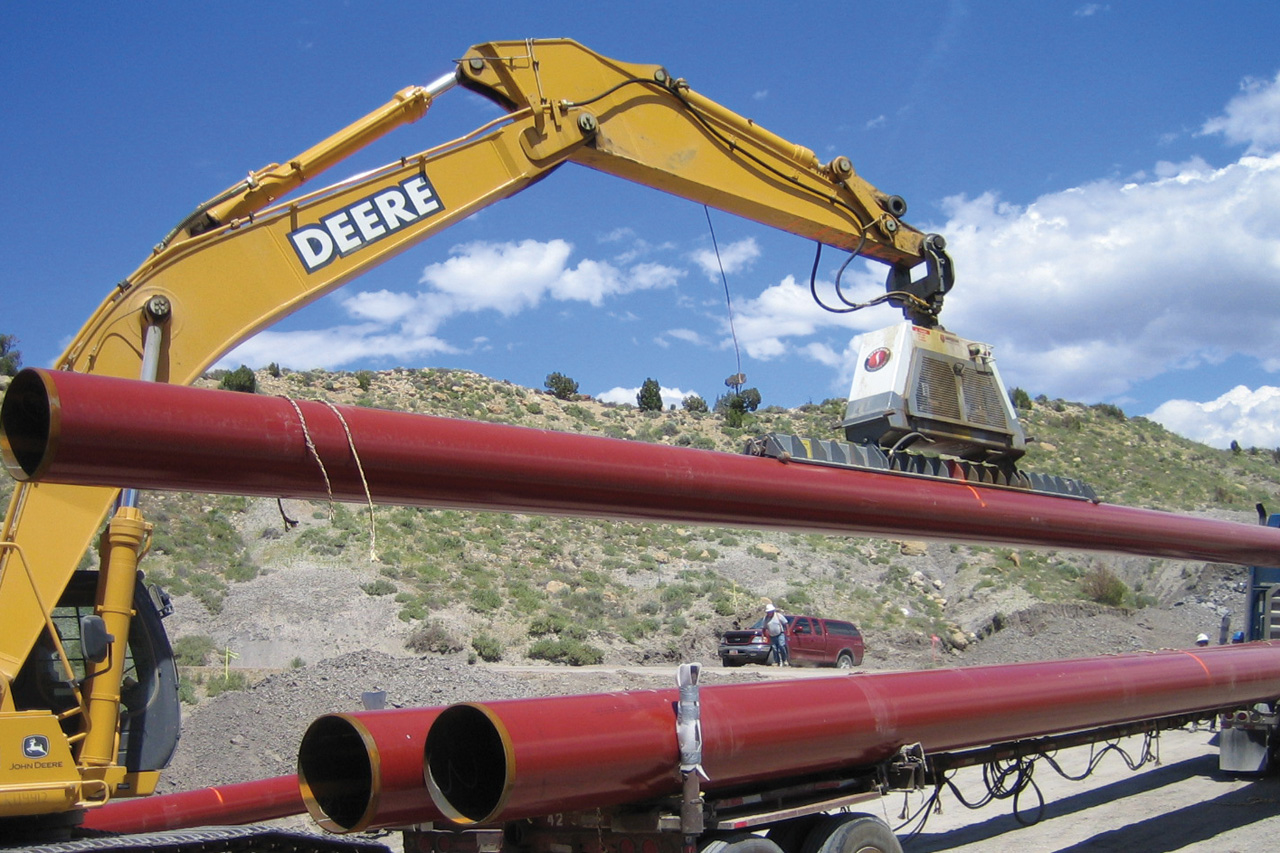

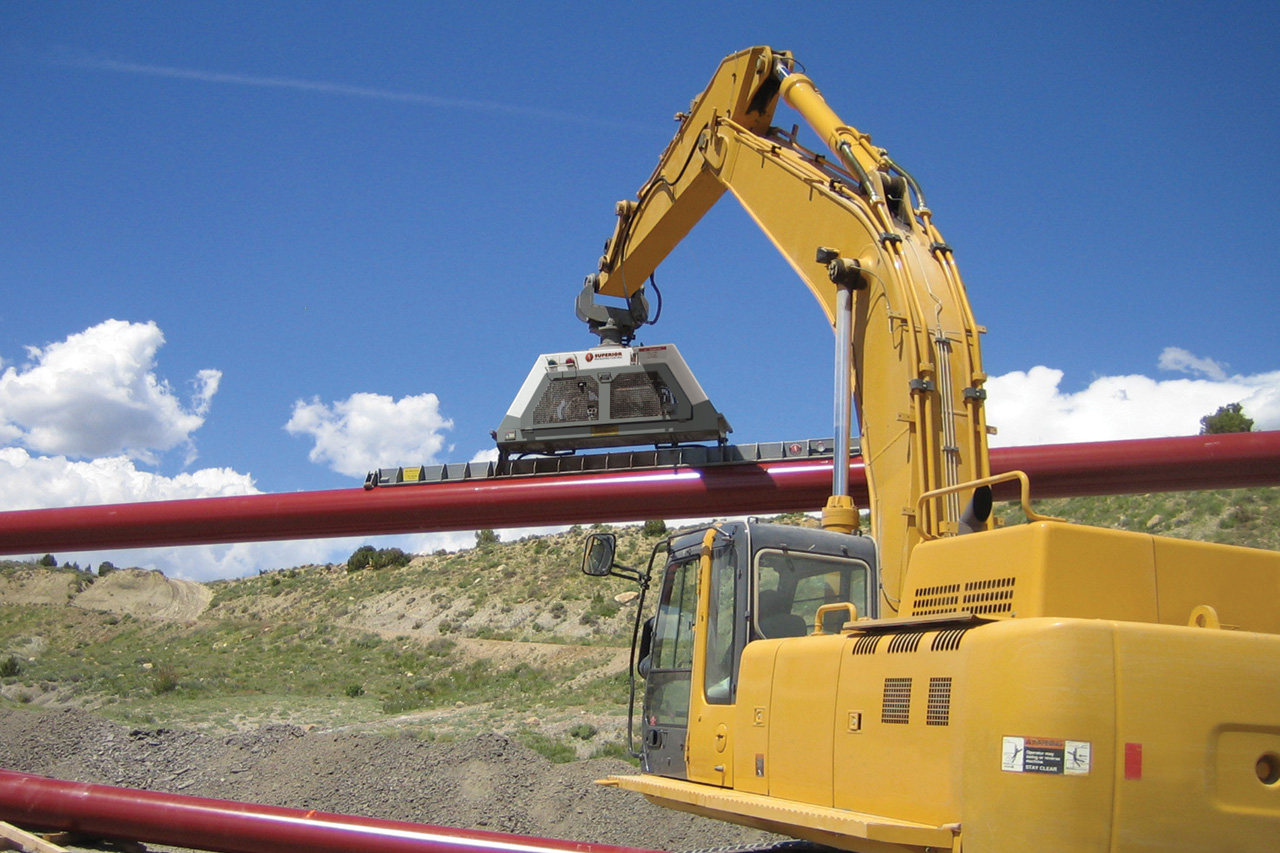

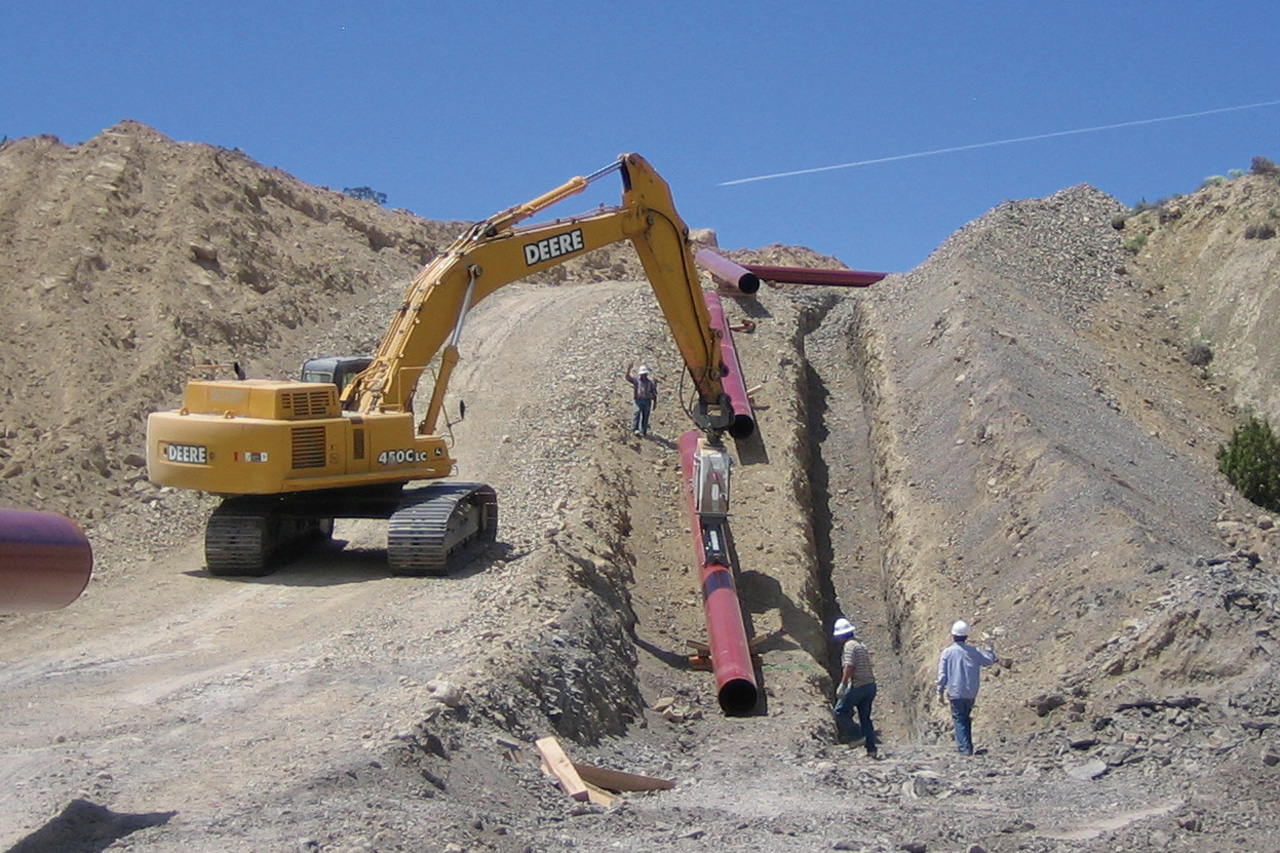

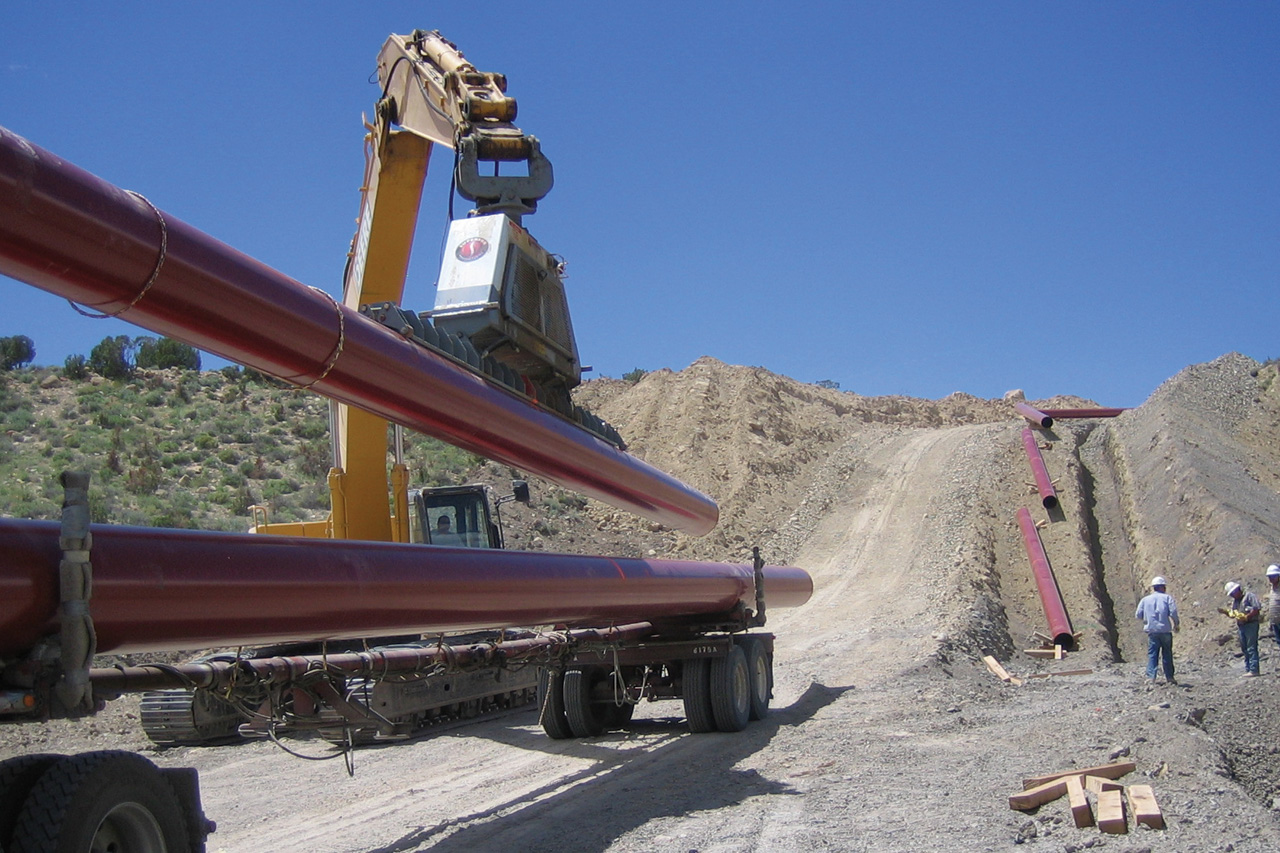

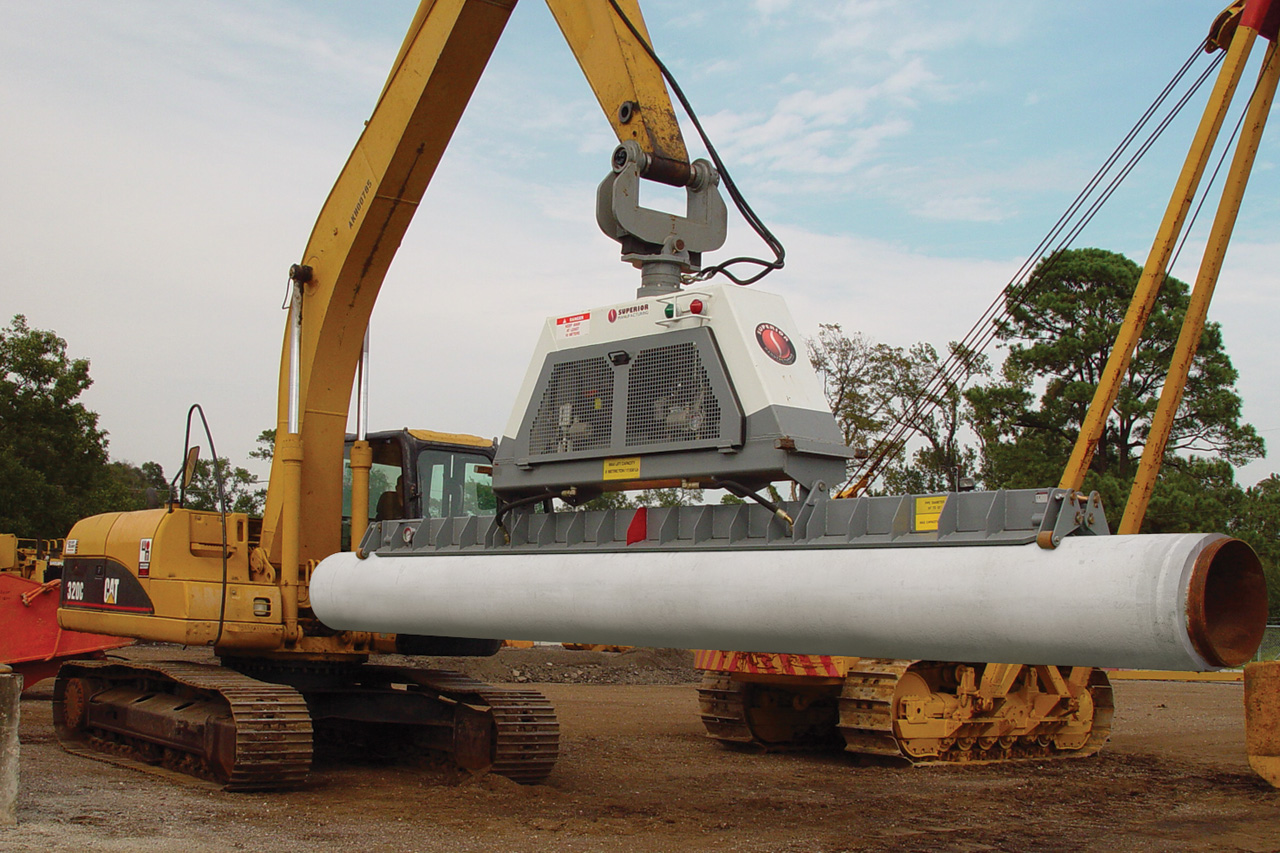

SUPERIOR Vacuum Lifts allows one operator to do the job of several by eliminating the need for a slinging crew, thus saving you money in redundant labor and making the job site safer. The SVL-130 vacuum lift has a lifting capacity of 13 tons and it's better suited for a 25/35 ton excavator.

  • Specifications


Lift capacity
13,000 kg - 28,660 lbs
Power source
A self contained diesel engine with electric start and 100 liter (26 gal) fuel tank.
Control blocks
Can be controlled by machine operator, by direct-connected cable or by remote control.
Fail-safe features
Both types of controllers have many fail-safe features. A visual-audio alarm warns against lifting if vacuum is insufficient.
Pads
Double set of lugs to hold any single or double suction pad arrangement. Quick fittings for easy pad change. Only the suction pad must be changed to switch to a different pipe diameter.
Shock stabilizing
Horizontally stabilized.
Design

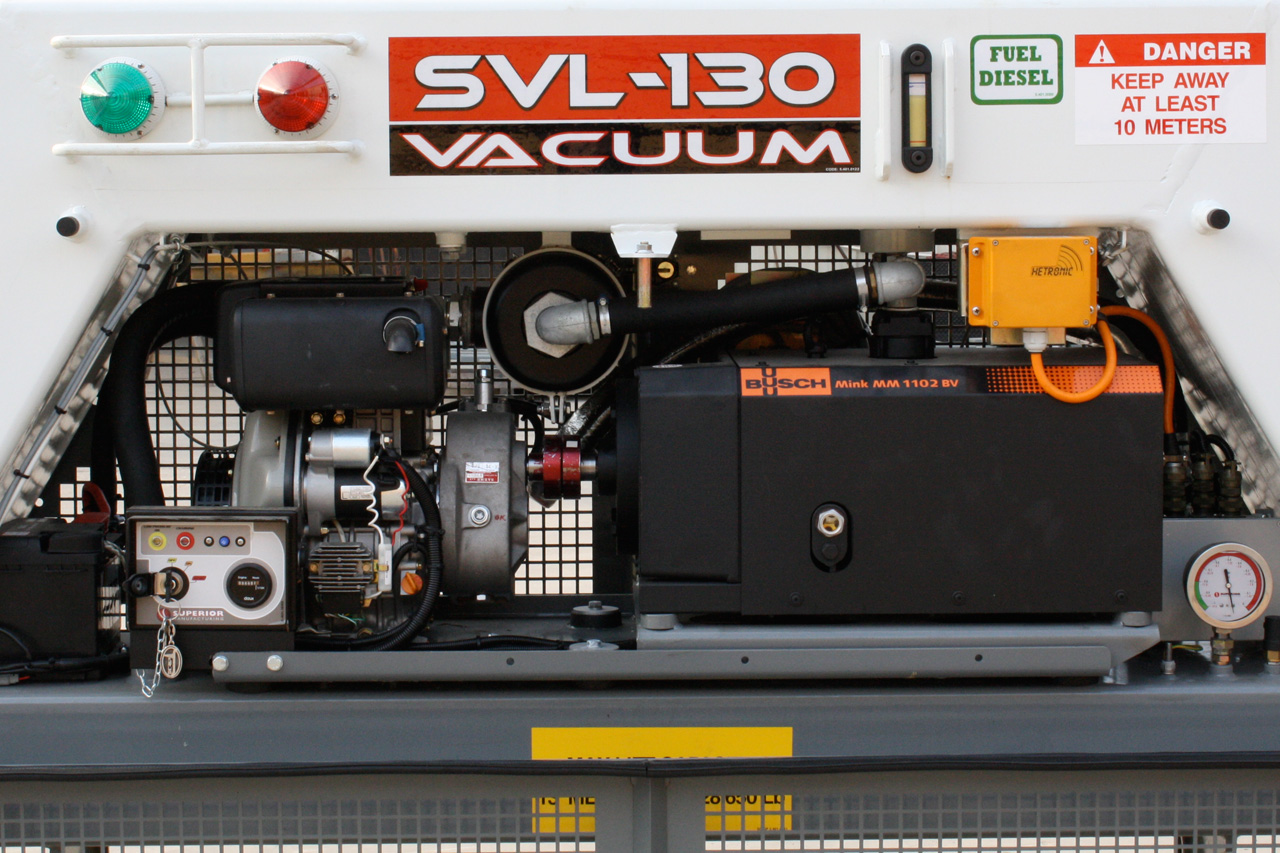

Fully self contained unit can be hooked up in a matter of seconds. Vacuum source is a rotary vane pump with oil circulation.
Type
YANMAR L100AE
Rated power
7.4 Kw - 10 HP
Diesel capacity
17.7 U.S. gal - 67 liters
Vacuum pump capacity
3,531 cu ft - 100 m3/h
Suction pressure
40 mbar
Maximum axial load of rotator
33,000 lbs - 15 metric tons
Maximum torque
380 daNm
Maximum rotation pressure
4,640 p.s.i. - 320 bar
Oil flow volume
5 U.S. gal/min - 20 liters/min
Rotation
Continuous

  • Main Features

Flashing Lights


Indicate whether there is an adequate bond between the pipe and the suction pad.

< Click image to enlarge

Manometer


The manometer is used for vacuum pressure measurement between pipe and suction pad. There's another manometer located in the suction pad.

< Click image to enlarge

Remote Control


Serves to control the operation without the use of a connected electric cable. This control will apply and release the vacuum and as added safety it requires the operator to push two buttons at the same time to release the pipe. As an option, it can also control the rotation of the rotator mechanism.

< Click image to enlarge

Rubber Seals


Designed for less time to suction ratios, and are especially effective in extreme cold and hot temperatures.

< Click image to enlarge

Alarm Sound


Makes loud alarm sound simultaneously with Red Flashing Alarm Light.

< Click image to enlarge

Yoke Attachment


Allows to easily change sizes of excavators by only replacing a bushing.

< Click image to enlarge
