Overview

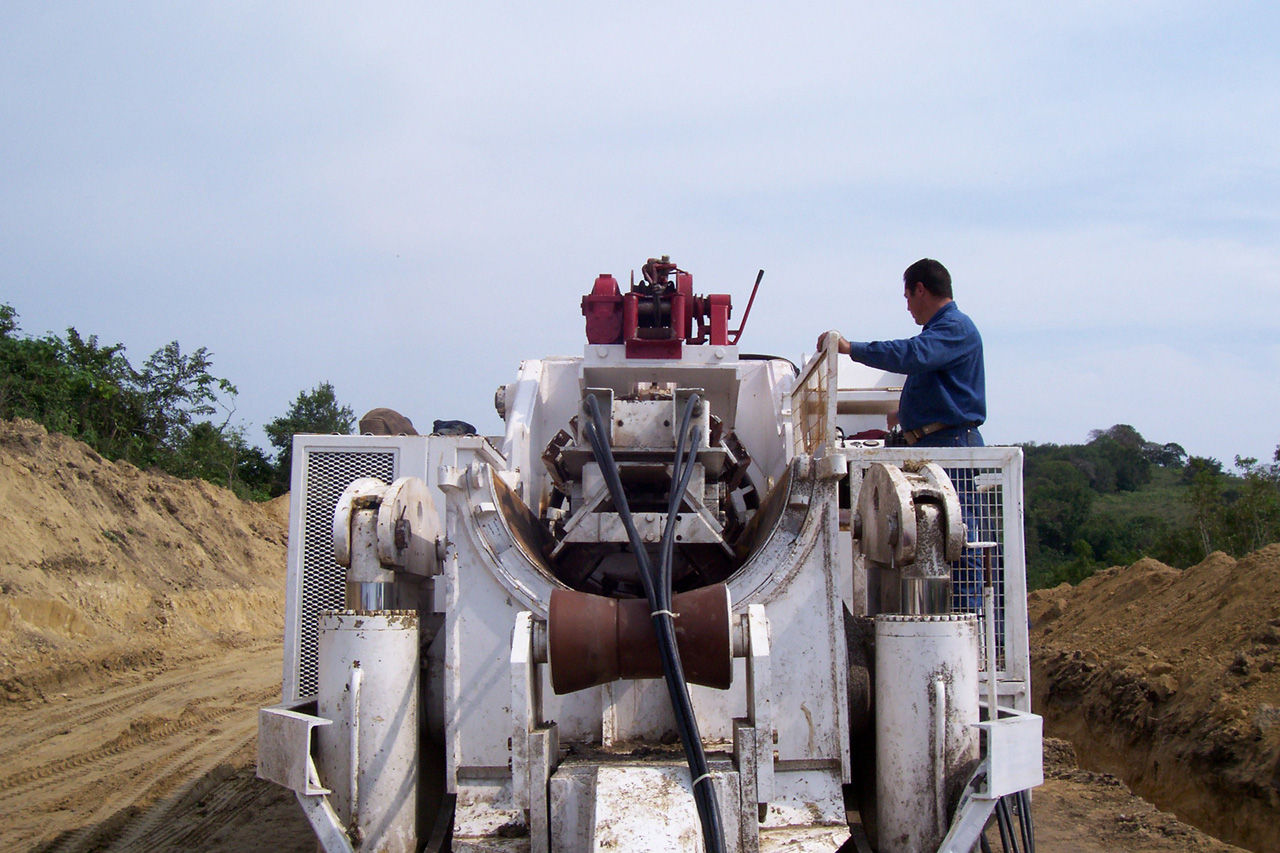

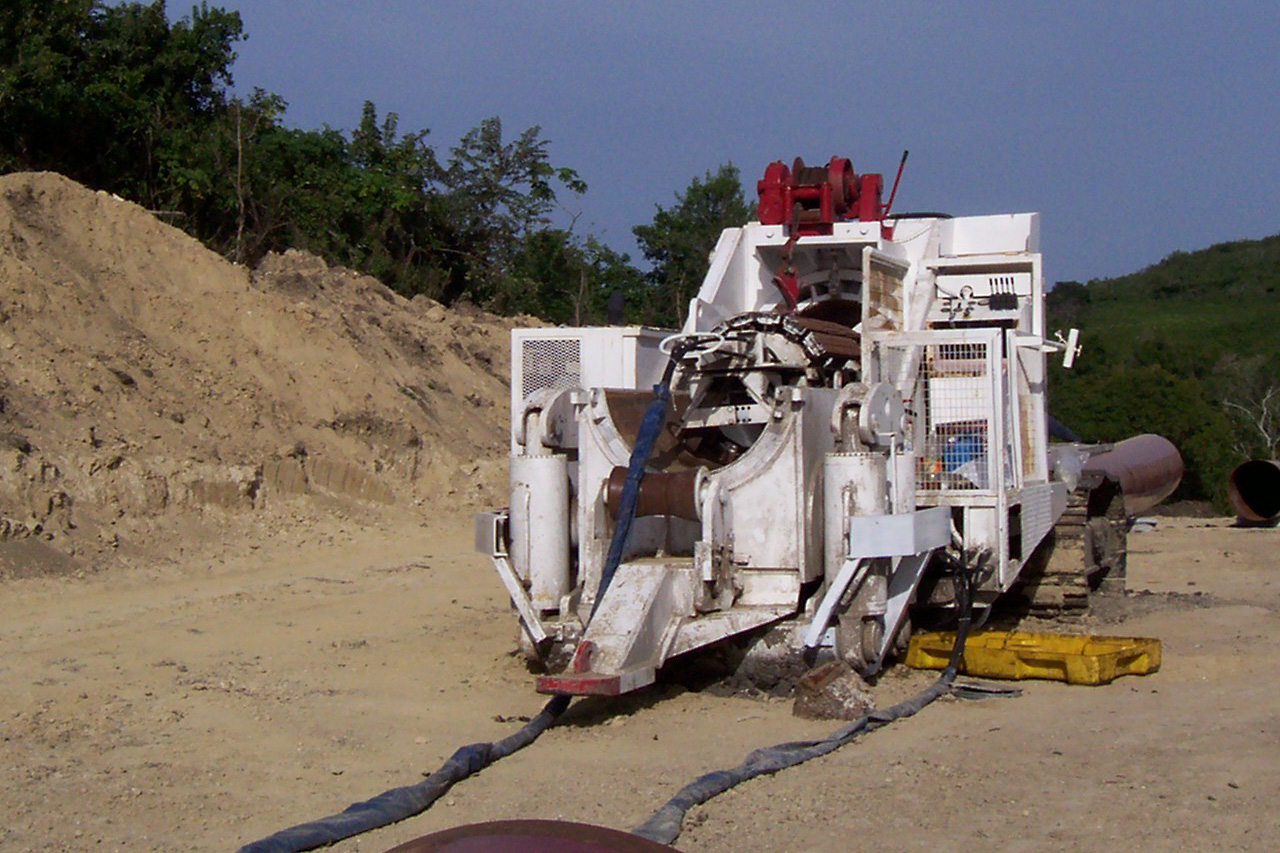

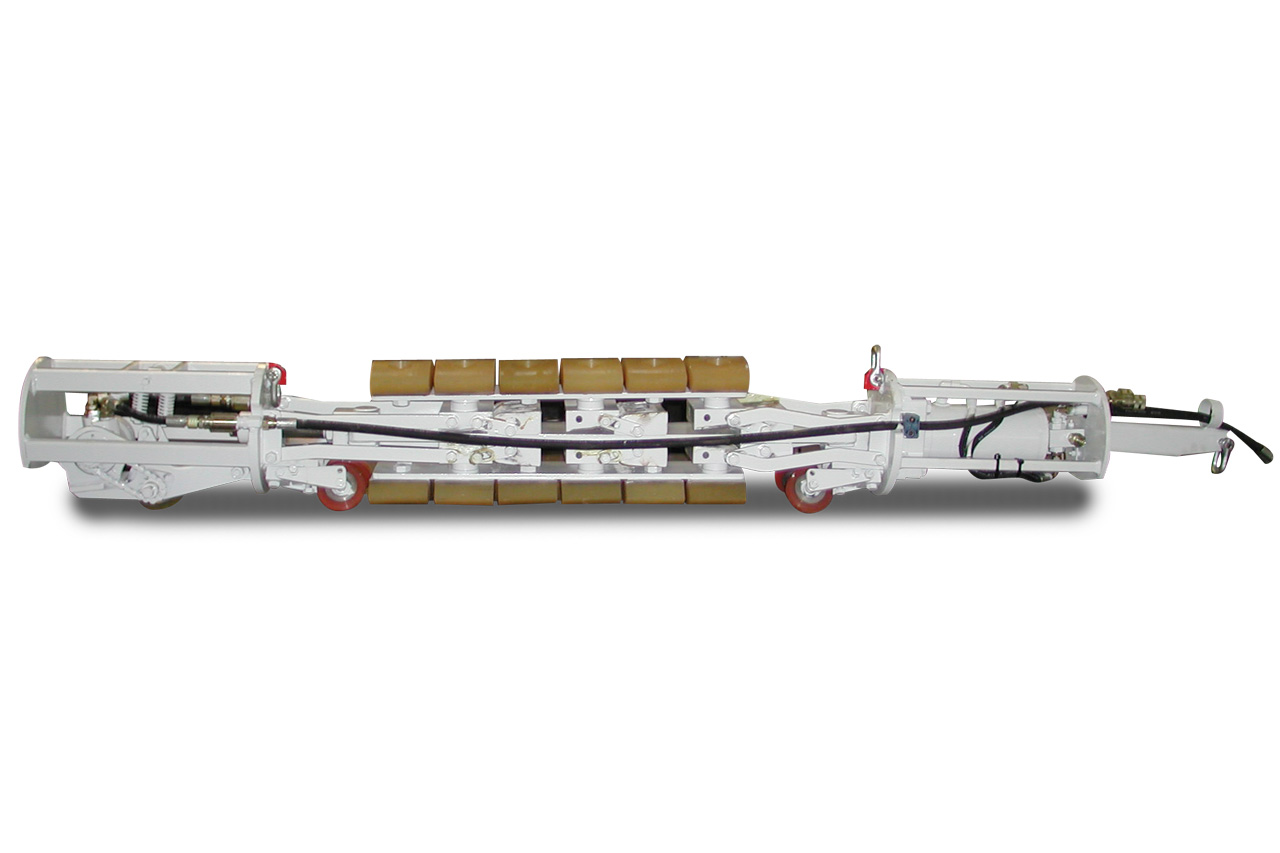

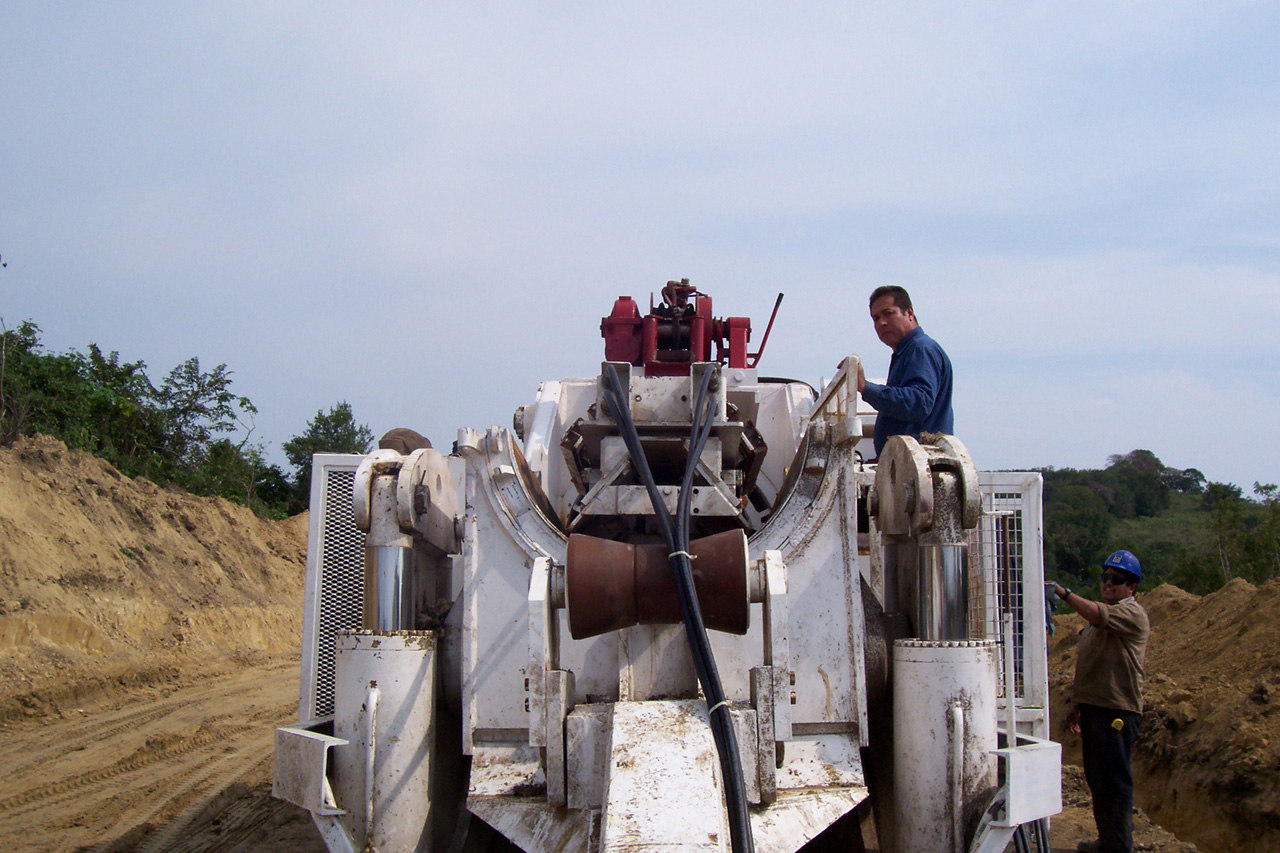

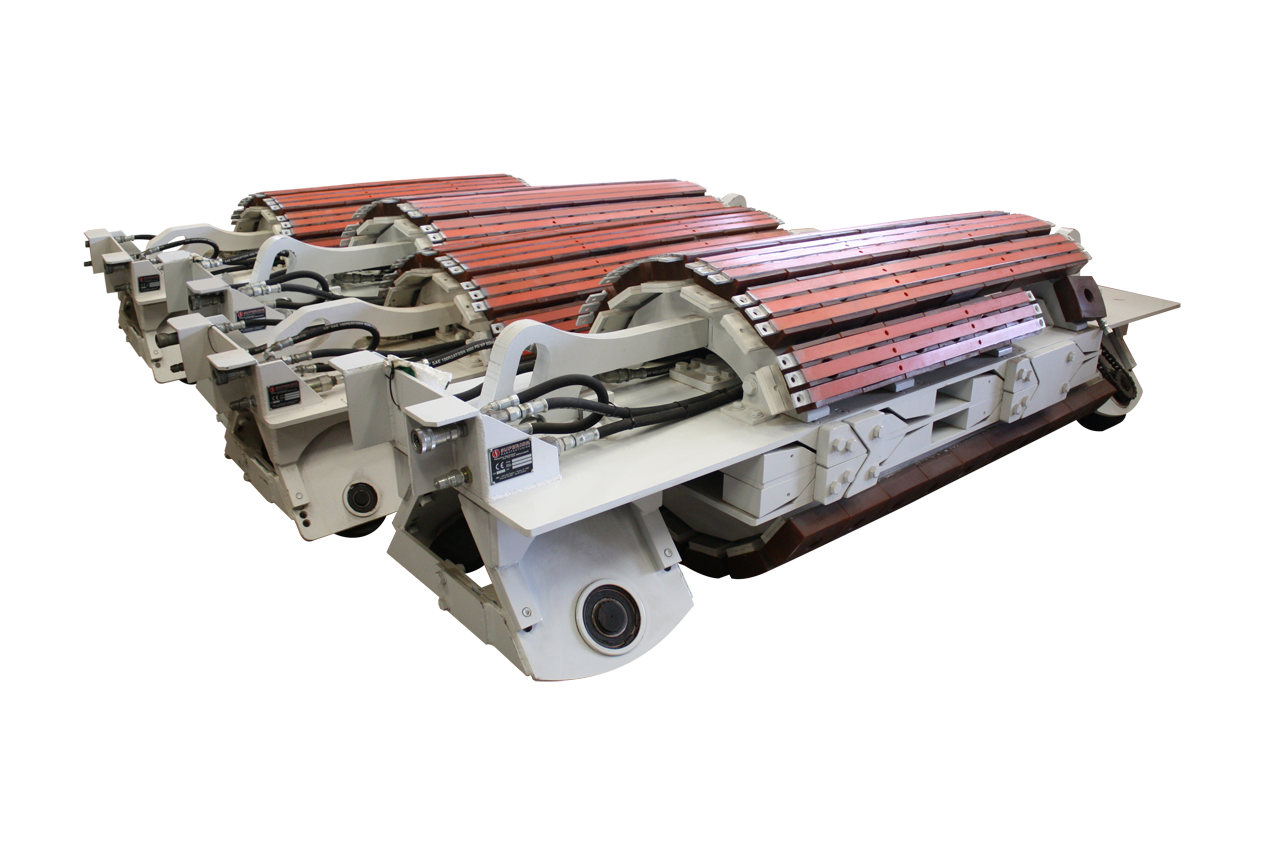

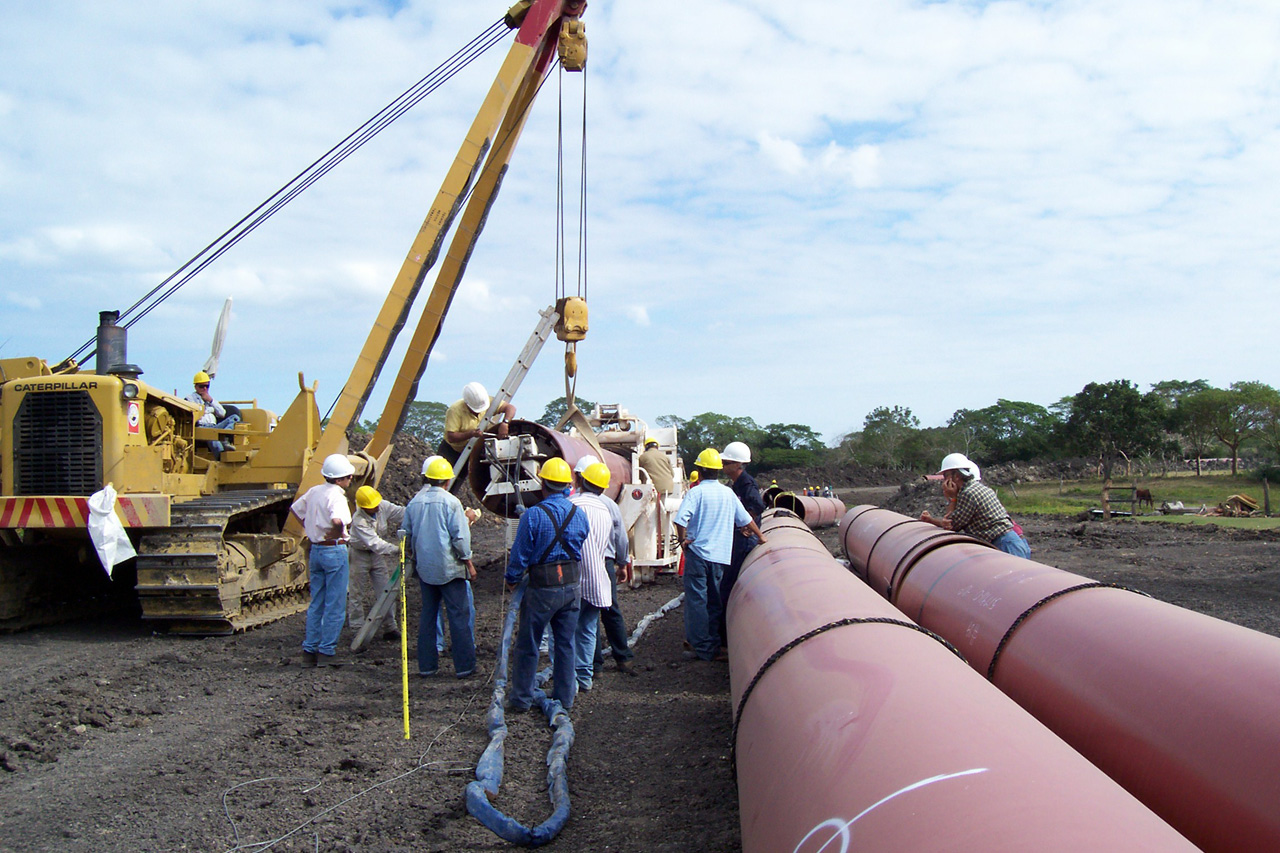

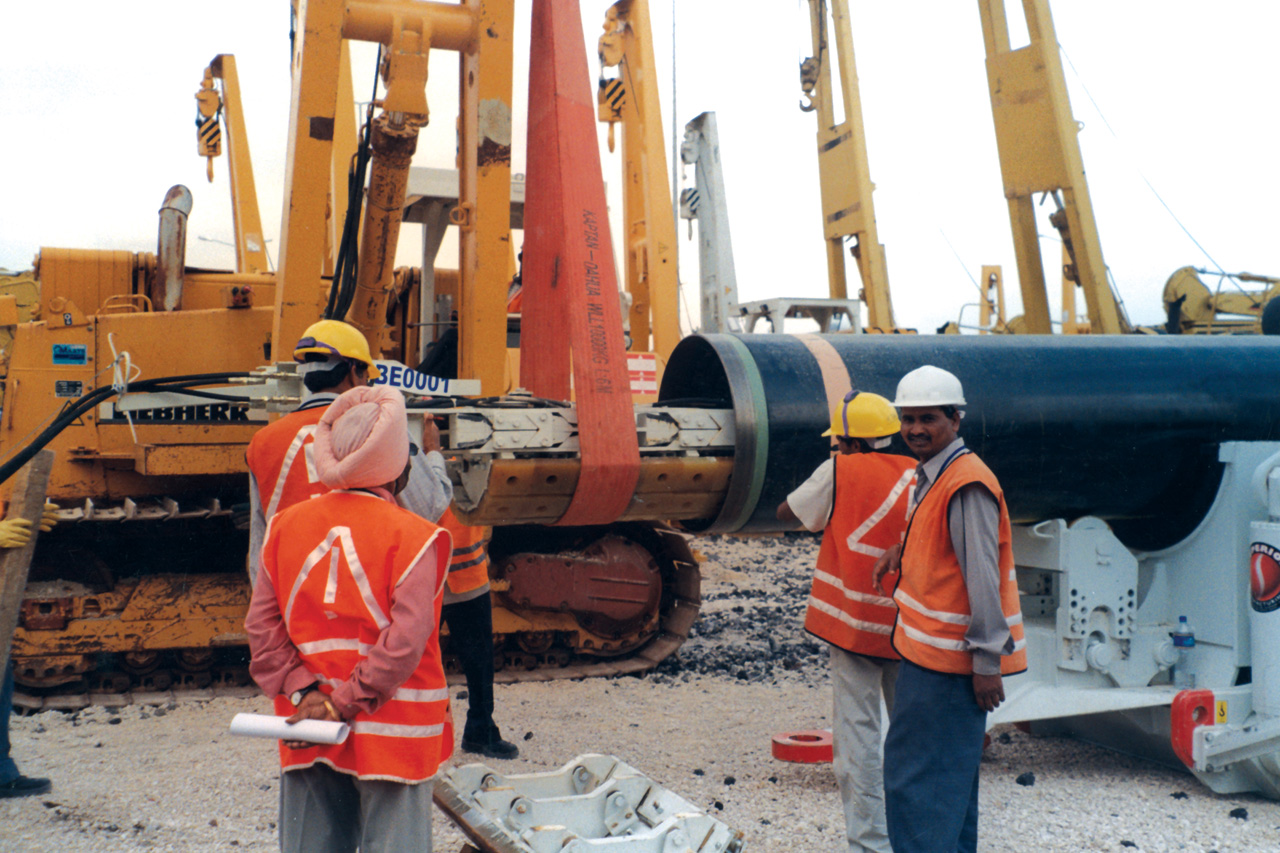

SUPERIOR's line of mandrels are available for all pipe diameter sizes and are designed for thicker wall pipe. They are designed to complement all SUPERIOR pipe bending machines, which have 2 extra hydraulic valves that can power any of our hydraulic mandrels.

  • Size Chart

MODEL PIPE SIZE DIMENSIONS     WEIGHT
    Length Width Height
SWH 10 10 in 73 in / 1,850 mm 8 in / 203 mm 8 in / 203 mm 374 lb / 170 kg
SWH 12-14 12-14 in 81 in / 2,050 mm 12 in / 305 mm 12 in / 305 mm 440 lb / 200 kg
SWH 16-18 16-18 in 86.5 in / 2,200 mm 16 in / 407 mm 16 in / 407 mm 924 lb / 420 kg
SWH 20-22 20-22 in 95.5 in / 2,430 mm 20 in / 508 mm 20 in / 508 mm 1,452 lb / 660 kg
SWH 24-26 24-26 in 107.5 in / 2,730 mm 22 in/ /559 mm 22 in / 559 mm 1,760 lb / 800 kg
SWH 28-30 28-30 in 123.5 in / 3,140 mm 24 in / 610 mm 24 in / 610 mm 2,904 lb / 1,320 kg
SWH 30-32 30-32 in 123.5 in / 3,140 mm 28 in / 711 mm 28 in / 711 mm 3,795 lb / 1,725 kg
SWH 34-36 34-36 in 123.5 in / 3,140 mm 31 in / 787 mm 31 in / 787 mm 3,927 lb / 1,785 kg
SWH 36-38 36-38 in 115 in / 2,920 mm 33 in / 838 mm 33 in / 838 mm 5,390 lb / 2,450 kg
SWH 40-42 40-42 in 115 in / 2,920 mm 37 in / 940 mm 37 in / 940 mm 5,522 lb / 2,510 kg
SWH 42-44 42-44 in 158 in / 4,013 mm 39 in / 990 mm 39 in/ /990 mm 8,020 lb / 3,638 kg
SWH 46-48 46-48 in 158 in / 4,013 mm 43 in / 1,092 mm 43 in / 1,092 mm 9,504 lb / 4,320 kg
SWH 48-50 48-50 in 158 in / 4,013 mm 45 in / 1,143 mm 45 in / 1,143 mm 1,1030 lb / 5,003 kg
SWH 52-54 52-54 in 158 in / 4,013 mm 49 in / 1,245 mm 49 in / 1,245 mm 11,946 lb / 5,430 kg
SWH 56-58 56-58 in 158 in / 4,013 mm 50 in / 1,270 mm 50 in / 1,270 mm 13,112 lb / 5,960 kg
SWH 60-62 60-62 in 158 in / 4,013 mm 54 in / 1,372 mm 54 in / 1,372 mm 13,640 lb / 6,200 kg
SWH 64-66 64-66 in 158 in / 4,013 mm 58 in / 1,473 mm 58 in / 1,473 mm 14,828 lb / 6,740 kg
