Overview

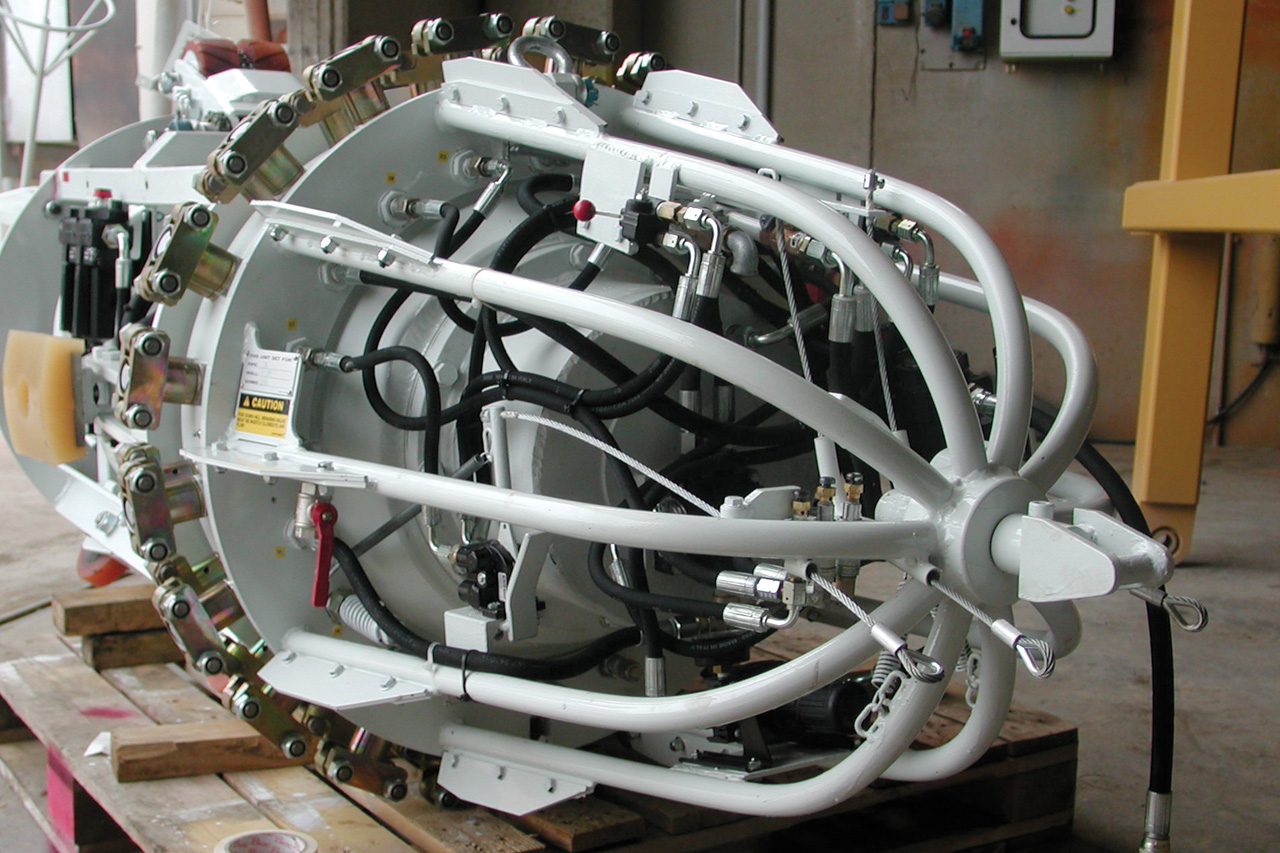

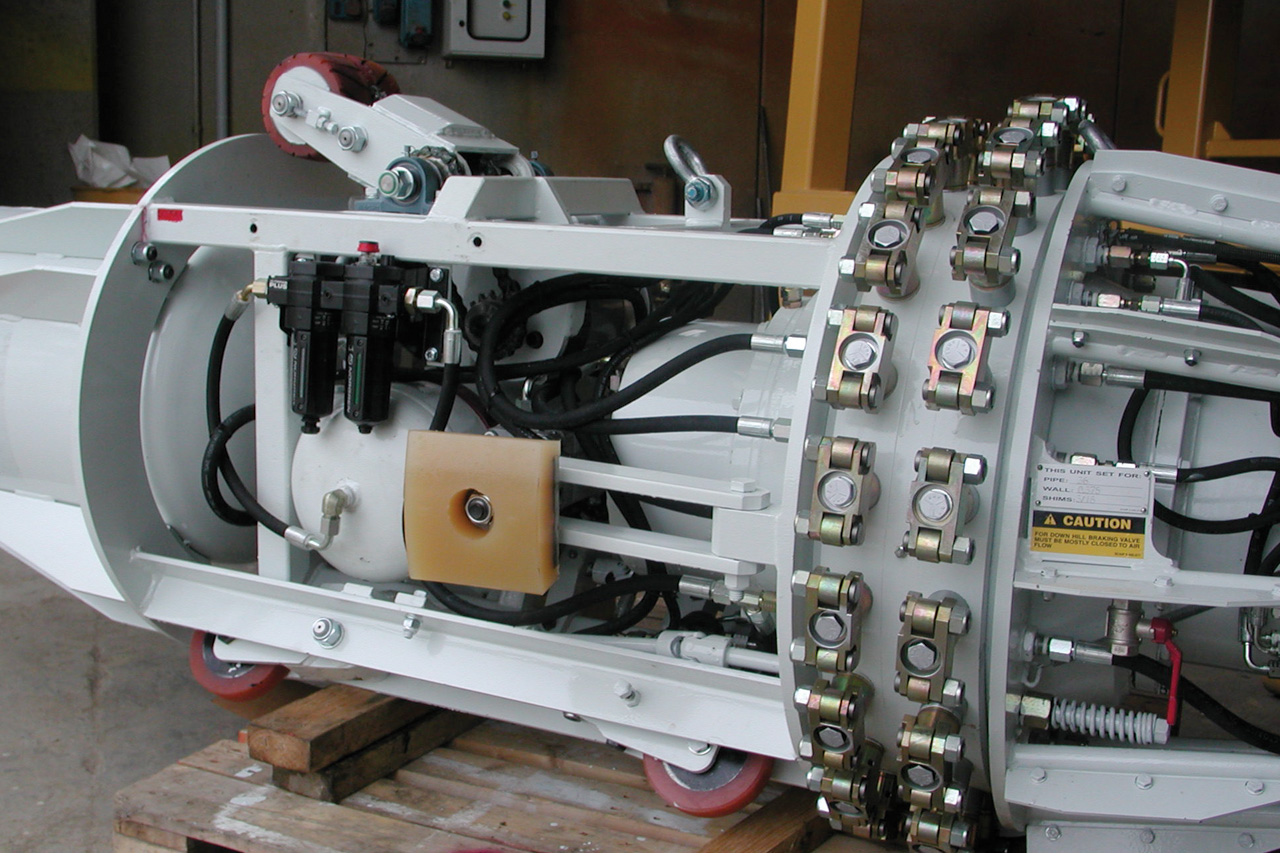

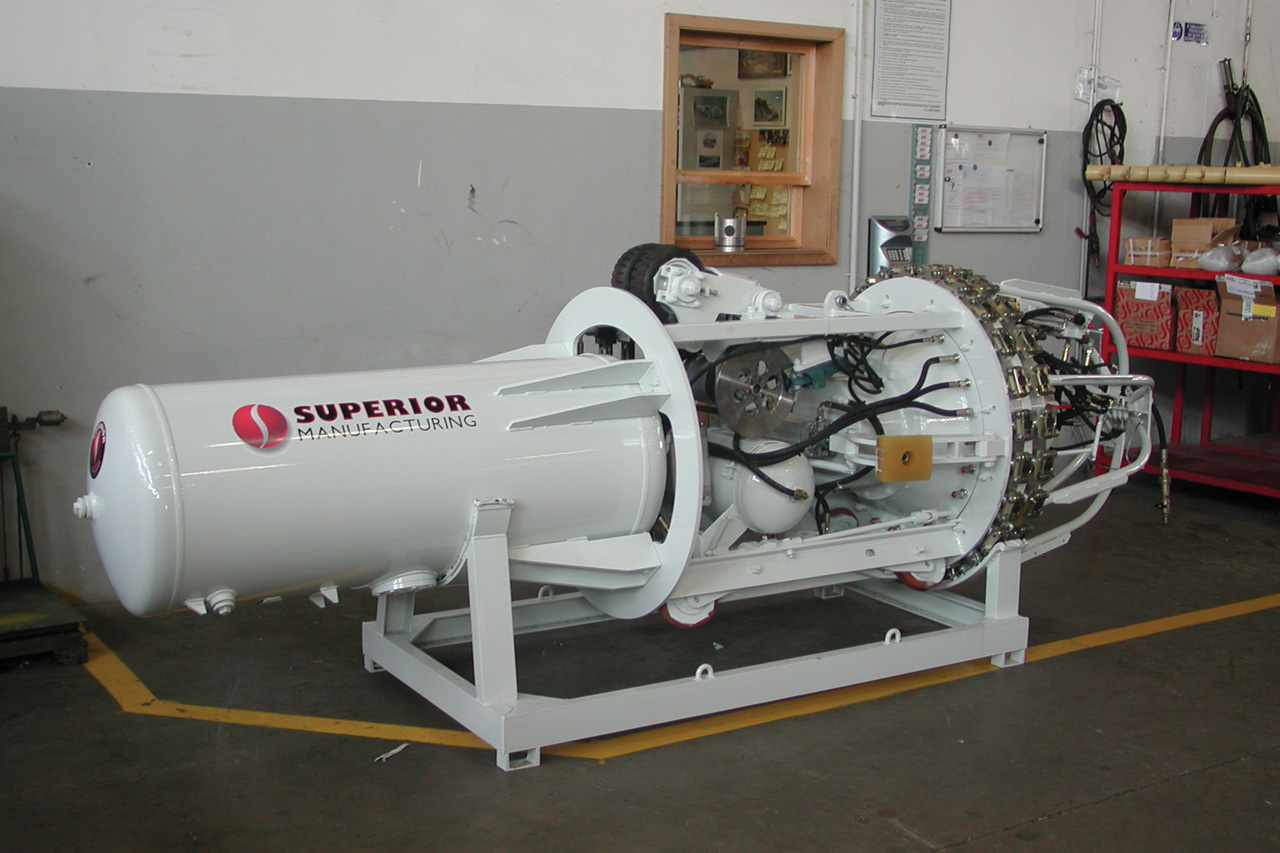

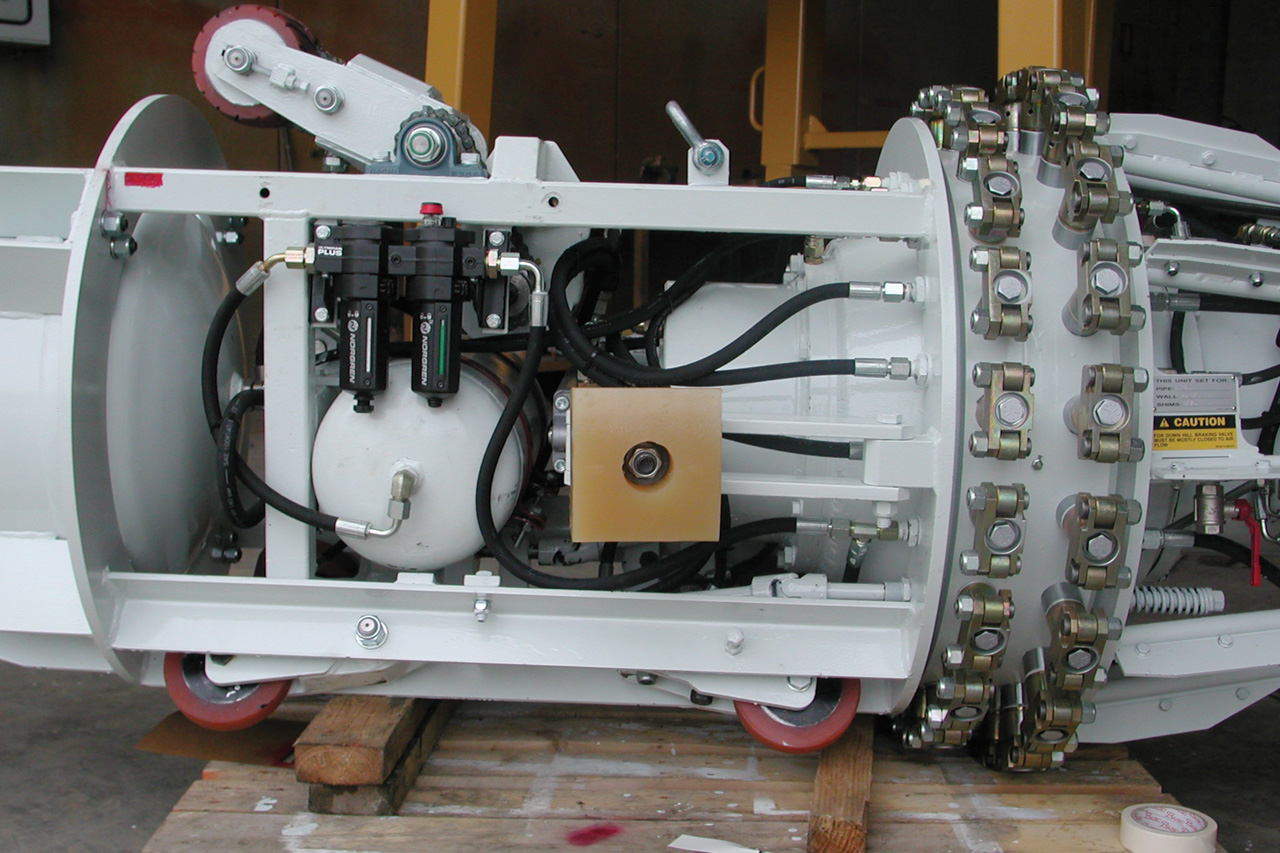

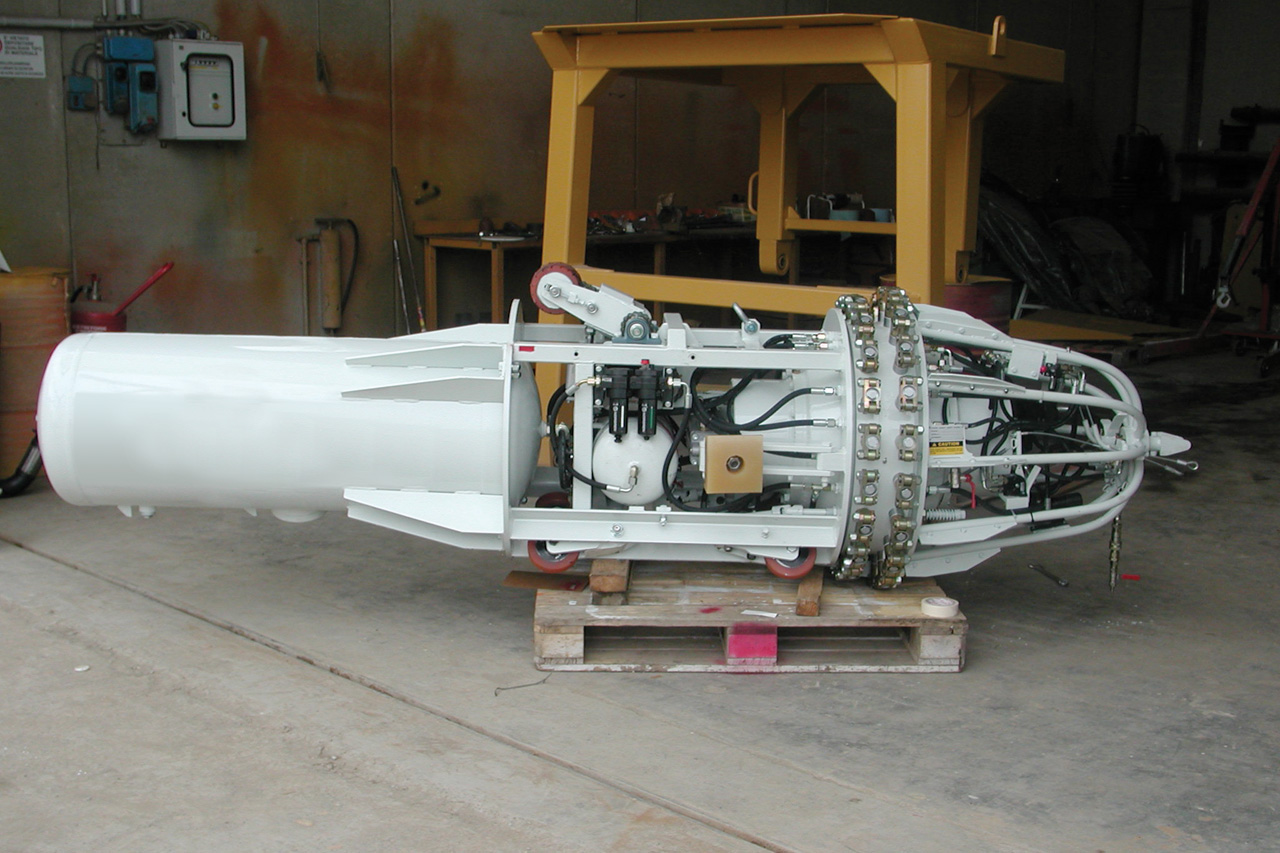

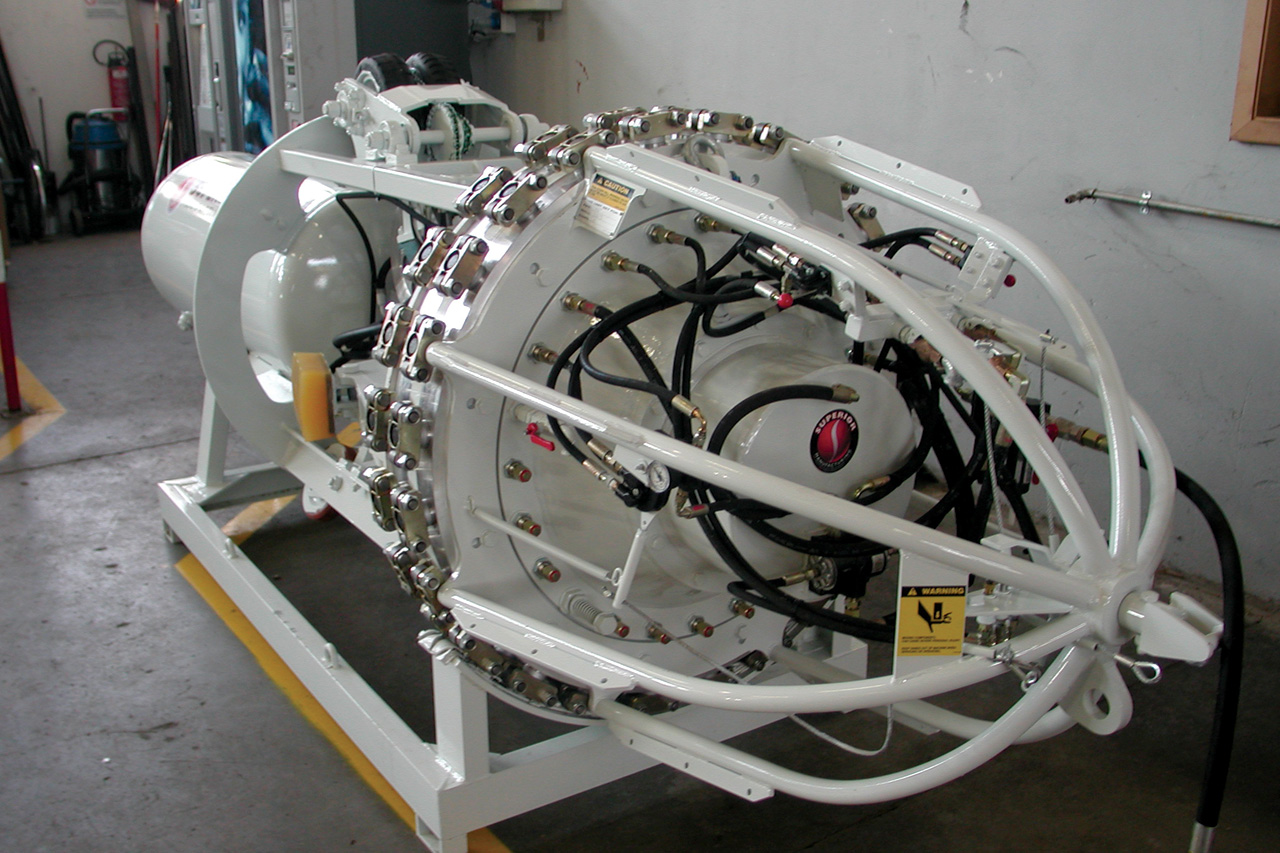

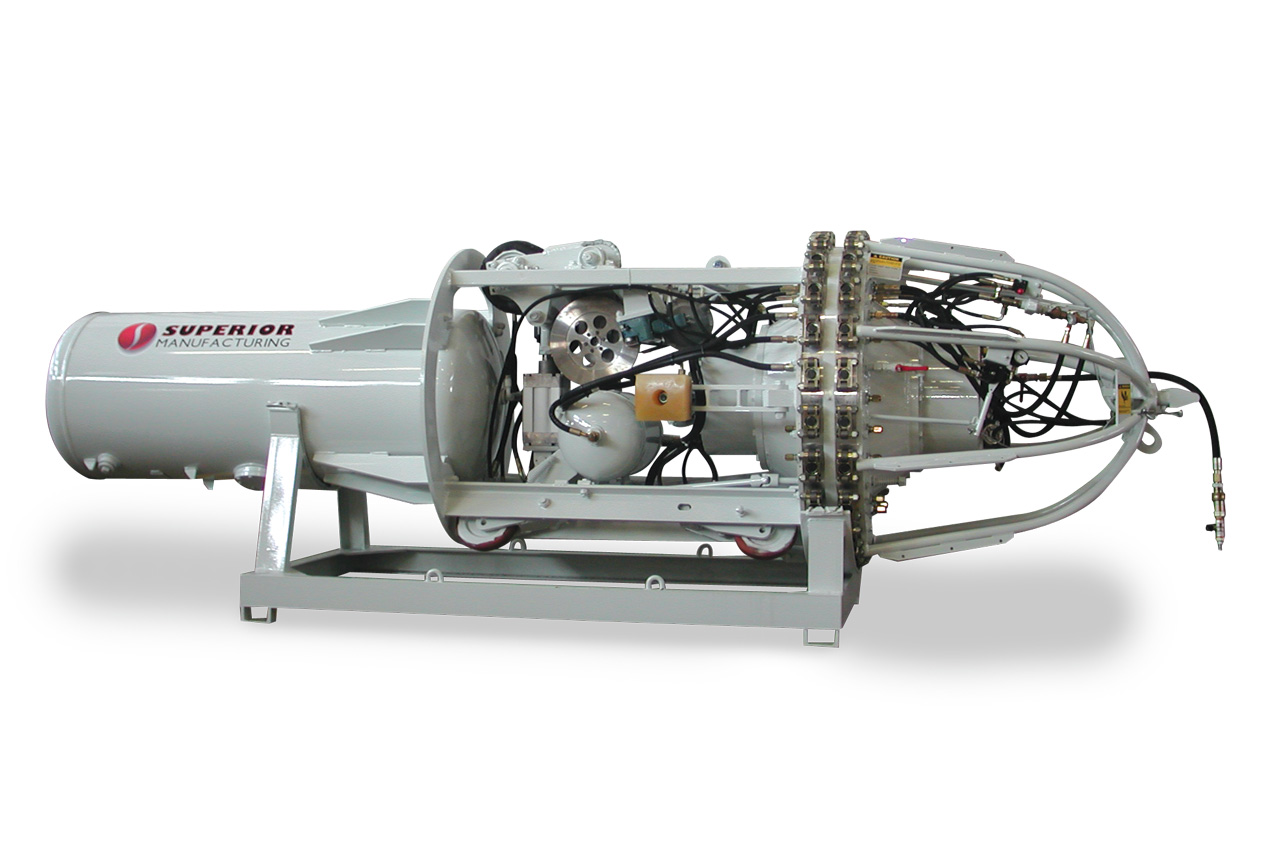

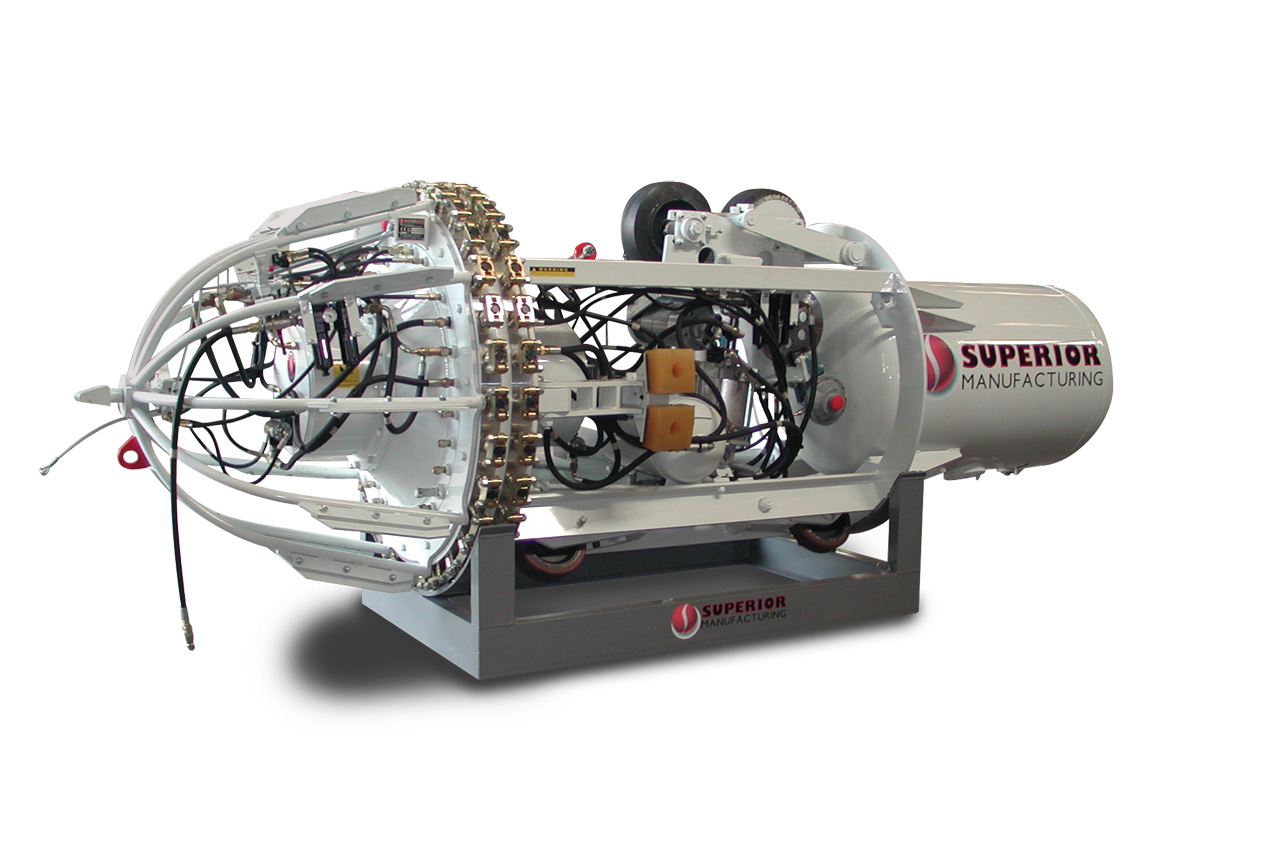

SUPERIOR's internal pneumatic line-up clamps are available for all pipe diameter sizes and are made with the highest quality components. Motorized travel is standard at 20 inches and above. Optional motorized travel is also available for sizes below 20 inches.

  • Size Chart

MODEL PIPE SIZE DIMENSIONS     WEIGHT
    Length Width Height
SLC 8 8 in 59.5 in / 1,510 mm 7.5 in / 190 mm 9 in / 229 mm 253 lb / 115 kg
SLC 10 10 in 64 in / 1,625 mm 10 in / 254 mm 11.5 in / 292 mm 286 lb / 130 kg
SLC 12-14 12-14 in 90.5 in / 2,300 mm 12 in / 305 mm 13.5 in / 343 mm 319 lb / 145 kg
SLC 16-18 16-18 in 95.5 in / 2,430 mm 16 in / 406 mm 17.5 in / 445 mm 418 lb / 190 kg
SLC 20-22 20-22 in 105 in / 2,680 mm 18.5 in / 469 mm 20 in / 508 mm 693 lb / 315 kg
SLC 24-26 24-26 in 113.5 in / 2,880 mm 26 in / 660 mm 27.5 in / 698 mm 935 lb / 425 kg
SLC 28 28 in 113.5 in / 2,880 mm 28 in / 710 mm 29.5 in / 749 mm 1,122 lb / 510 kg
SLC 30-32 30-32 in 124.5 in / 3,160 mm 30 in / 762 mm 31.5 in / 800 mm 1,148 lb / 522 kg
SLC 34-36 34-36 in 134 in / 3,400 mm 36 in / 910 mm 37.5 in / 952 mm 2,640 lb / 1,200 kg
SLC 40-42 40-42 in 140 in / 3,550 mm 40 in / 1,016 mm 41.5 in / 1,054 mm 3,080 lb / 1,400 kg
SLC 46-48 46-48 in 151 in / 3,850 mm 45 in / 1,143 mm 46.5 in / 1,181 mm 4,290 lb / 1,950 kg
SLC 50-52 50-52 in 157 in / 4,000 mm 50 in / 1,270 mm 51.5 in / 1,308 mm 4,620 lb / 2,100 kg
SLC 54-56 54-56 in 157 in / 4,000 mm 54 in / 1,372 mm 55.5 in / 1,410 mm 4,950 lb / 2,250 kg
SLC 56-60 56-60 in 181 in / 4,600 mm 58 in / 1,473 mm 59.5 in / 1,511 mm 5,170 lb / 2,350 kg
SLC 60-64 60-64 in 181 in / 4,600 mm 62 in / 1,575 mm 63.5 in / 1,613 mm 5,720 lb / 2,600 kg
